Instrument Panel (IP) - Accessory Trim Plate Replacement

Trim Plate Replacement - IP Accessory

Removal Procedure

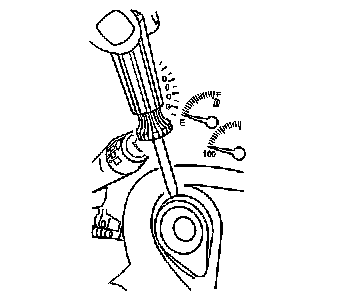

1. Remove the ignition switch trim cover. Pry off with a small flat-bladed tool.

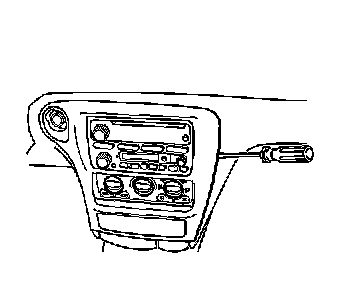

2. Gently pry the accessory trim plate with small flat-bladed tool in order to disengage the retainers from the IP carrier.
3. Remove the accessory trim plate from the from the IP carrier.
4. Disconnect the cigar lighter electrical connector from the cigar lighter.
5. Remove the cigar lighter from the accessory trim plate if required.

Installation Procedure




1. Install the cigar lighter to the accessory trim plate if required.
2. Connect the cigar lighter electrical connector to the cigar lighter.
3. Align the accessory trim plate tabs to the IP carrier.

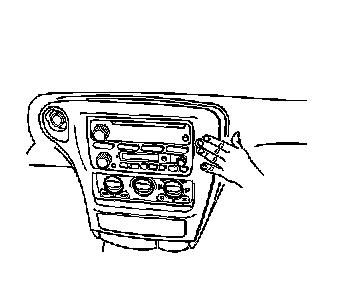

4. Gently push the accessory trim plate into the IP carrier.

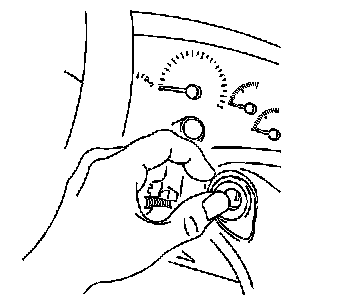

5. Install the ignition key trim cover to the ignition switch.
