Instrument Panel (IP) - Trim Panel Replacement - Cluster

Trim Panel Replacement - IP Cluster

Removal Procedure

1. Disable the SIR system. Refer to Disabling the SIR System in Restraint Systems.

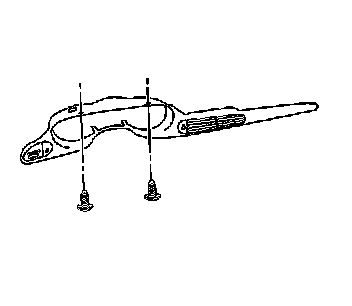

2. Remove the screws from the lower steering column trim cover.
3. Remove the upper steering column trim cover from the steering column.




4. Remove the screws from the instrument panel cluster trim plate.




5. Gently pry out the instrument panel cluster trim plate form the IP carrier with a small flat-bladed tool.
6. Remove the instrument panel cluster trim plate from the IP carrier.
7. Disconnect the electrical connector from the IP dimmer switch.
8. Disconnect the electrical connector from the hazard warning switch.

Installation Procedure




1. Connect the electrical connector to the hazard warning switch.
2. Connect the electrical connector to the IP dimmer switch.
3. Align the cluster trim plate tabs to the retainers.
4. Install the instrument panel cluster trim plate to the IP carrier.






Notice: Refer to Fastener Notice in Service Precautions.

5. Install the screws to the instrument panel cluster trim plate.

Tighten the screws to 2.3 N.m (18 lb in).




6. Install the upper steering column trim cover to the steering column.
7. Install the screws to the lower steering column trim cover.

Tighten the screws to 2.3 N.m (18 lb in).

8. Enable the SIR system. Refer to Enabling the SIR System in Restraint Systems.
