Instrument Panel Cluster (IPC) - Replacement

REMOVAL PROCEDURE




1. Remove the cluster trim plate.

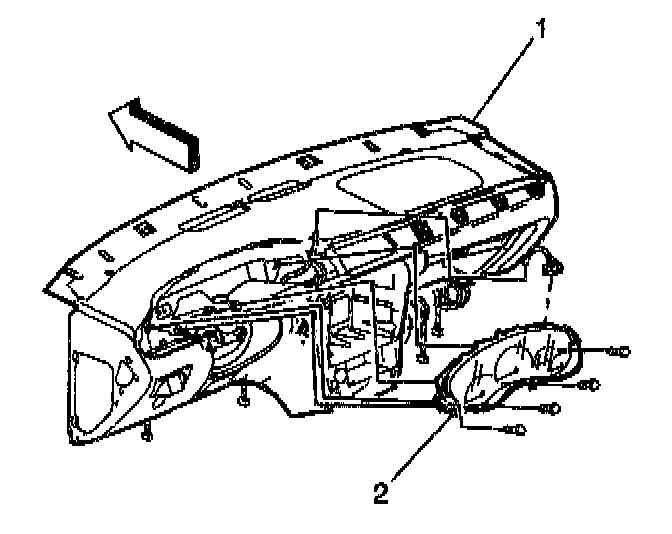

2. Remove the screws attaching the IP cluster (2) to the IP carrier (1).
3. Pull the IP cluster (2) rearward in order to remove the cluster from IP corner.
4. Disconnect the electrical connector.

INSTALLATION PROCEDURE




1. Connect the electrical connector.
2. Install the IP cluster (2) to the IP carrier (1).

NOTE: Refer to Fastener Notice in Service Precautions.

3. Install the IP cluster bolts.

Tighten
Tighten the bolts to 2 N.m (18 lb in).

4. Install the cluster trim plate.
