Speedometer and/or Odometer Inaccurate or Inoperative

TEST DESCRIPTION

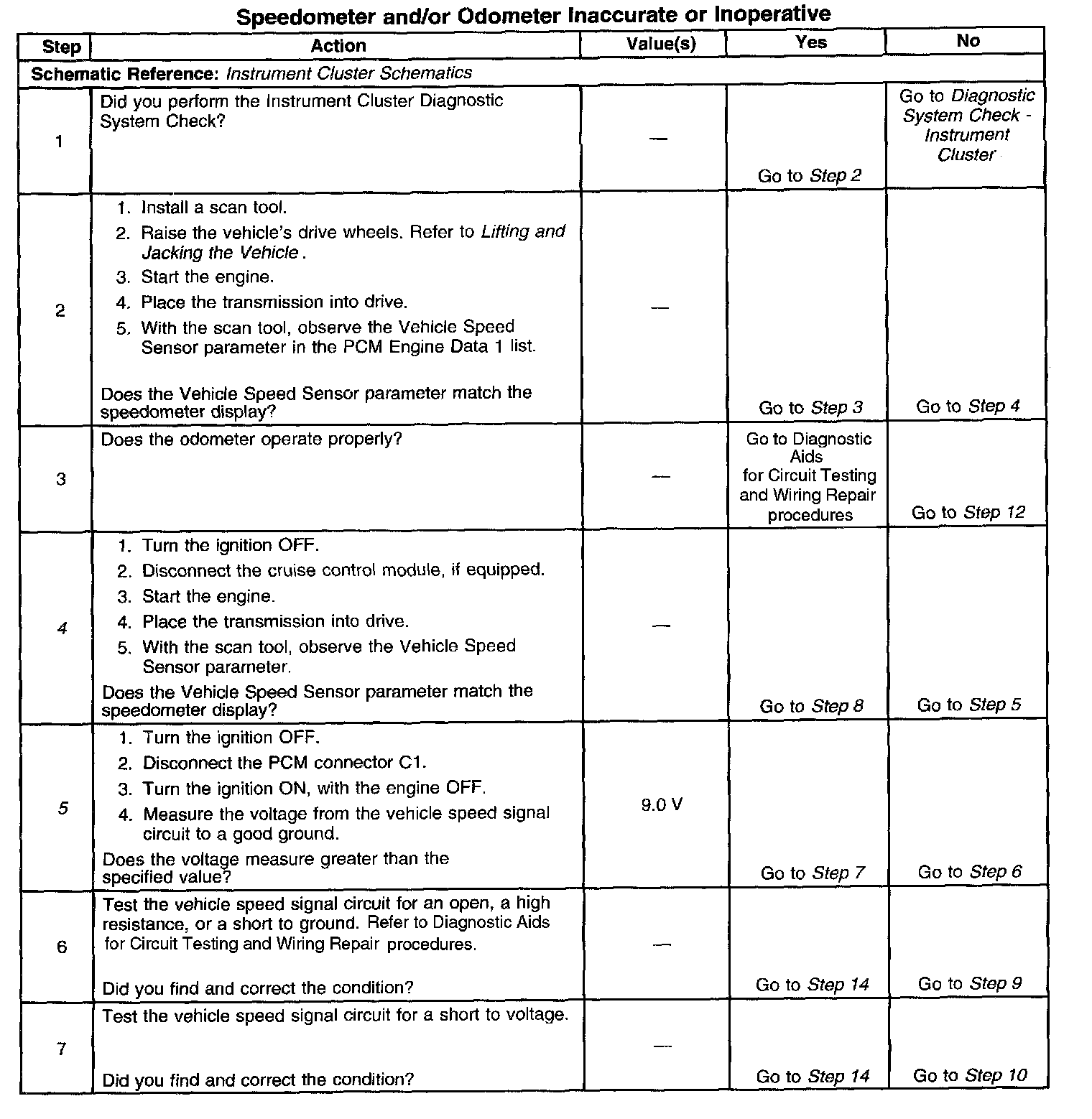

Steps 1-7:

Steps 8-14:

The numbers below refer to the step numbers on the diagnostic table.
4. This step tests for a malfunctioning component that is interrupting the vehicle speed signal circuit.
5. This step tests for the proper voltage from the IPC.
