Dome Lamp: Service and Repair

REMOVAL PROCEDURE

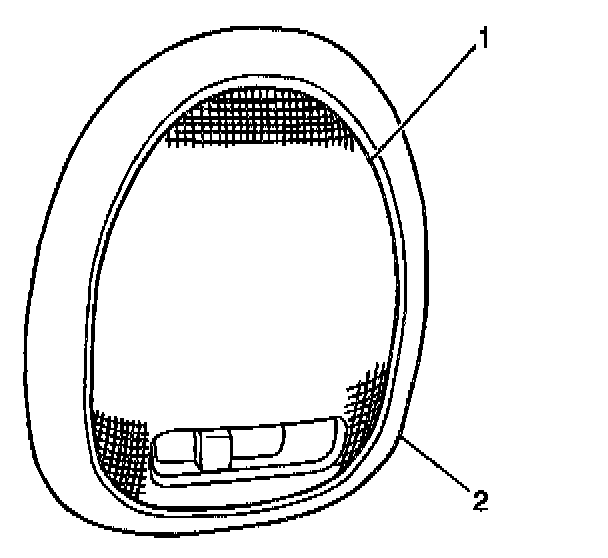

1. Remove the dome lens (1) from the dome lamp (2) with a flat bladed tool.

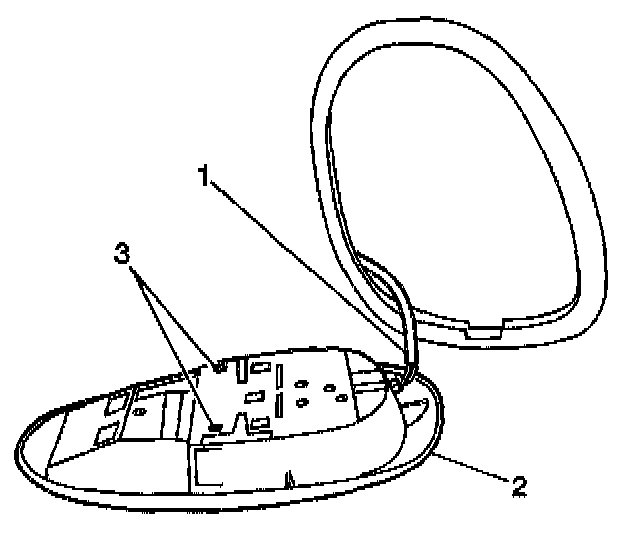

2. Remove the dome lamp (2) from the roof by pulling firmly in order to disengage the retainers (3).
3. Disconnect the electrical connector (1) from the dome lamp (2).

INSTALLATION PROCEDURE




1. Connect the electrical connector (1) to the dome lamp (2).
2. Position the dome lamp retaining fasteners (3) over the fastener holes.
Press the dome lamp (2) into place.




3. Install the dome lamp lens (1) to the dome lamp (2).
