Multifunction, Turn Signal Lever
Multifunction Turn Signal Lever Replacement - On VehicleRemoval Procedure
Caution: Refer to SIR Caution in Service Precautions.
1. Disable the Supplemental Inflatable Restraints (SIR).
2. Remove the steering column trim cover.

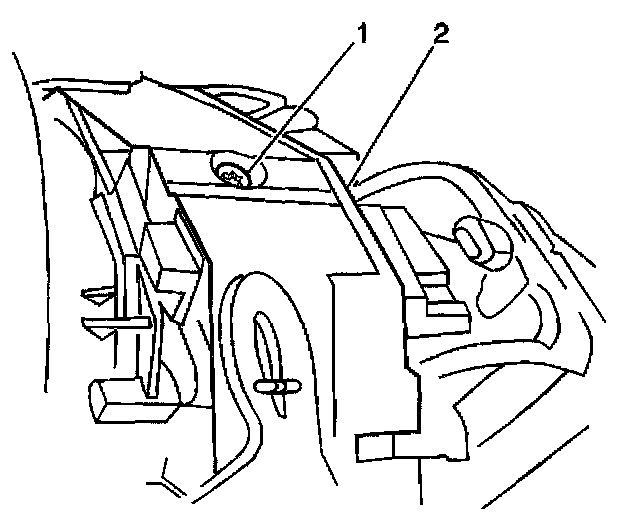

3. Remove the mounting screw (1) from the multifunction switch (2).

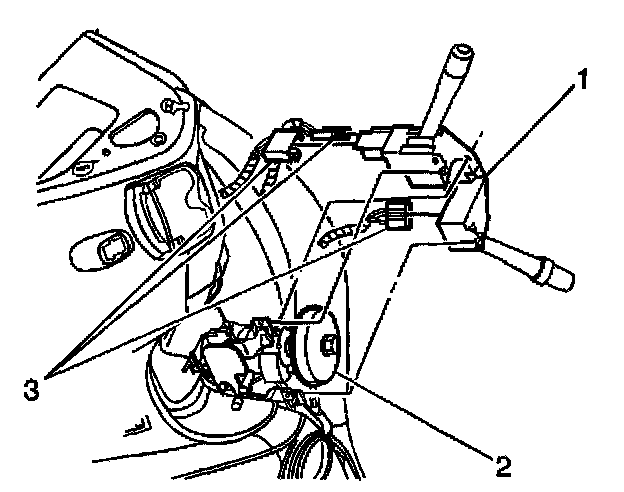

4. Remove the multifunction switch (1) from the column (2).
5. Disconnect the electrical connectors (3) from the multifunction switch (1).
Installation Procedure
1. Connect the electrical connectors to the multifunction switch (1).
2. Position the multifunction switch (1) on the steering column (2) while depressing the spring loaded horn pin.
Notice: Refer to Fastener Notice in Service Precautions.
3. Install the mounting screw (1) to the multifunction switch (2).
- Tighten the screw to 4 Nm (35 inch lbs.).
4. Install the steering column trim cover.
5. Enable the SIR system.
6. Ensure that the multifunction switch functions properly.
