A - Z Master Electrical Component List

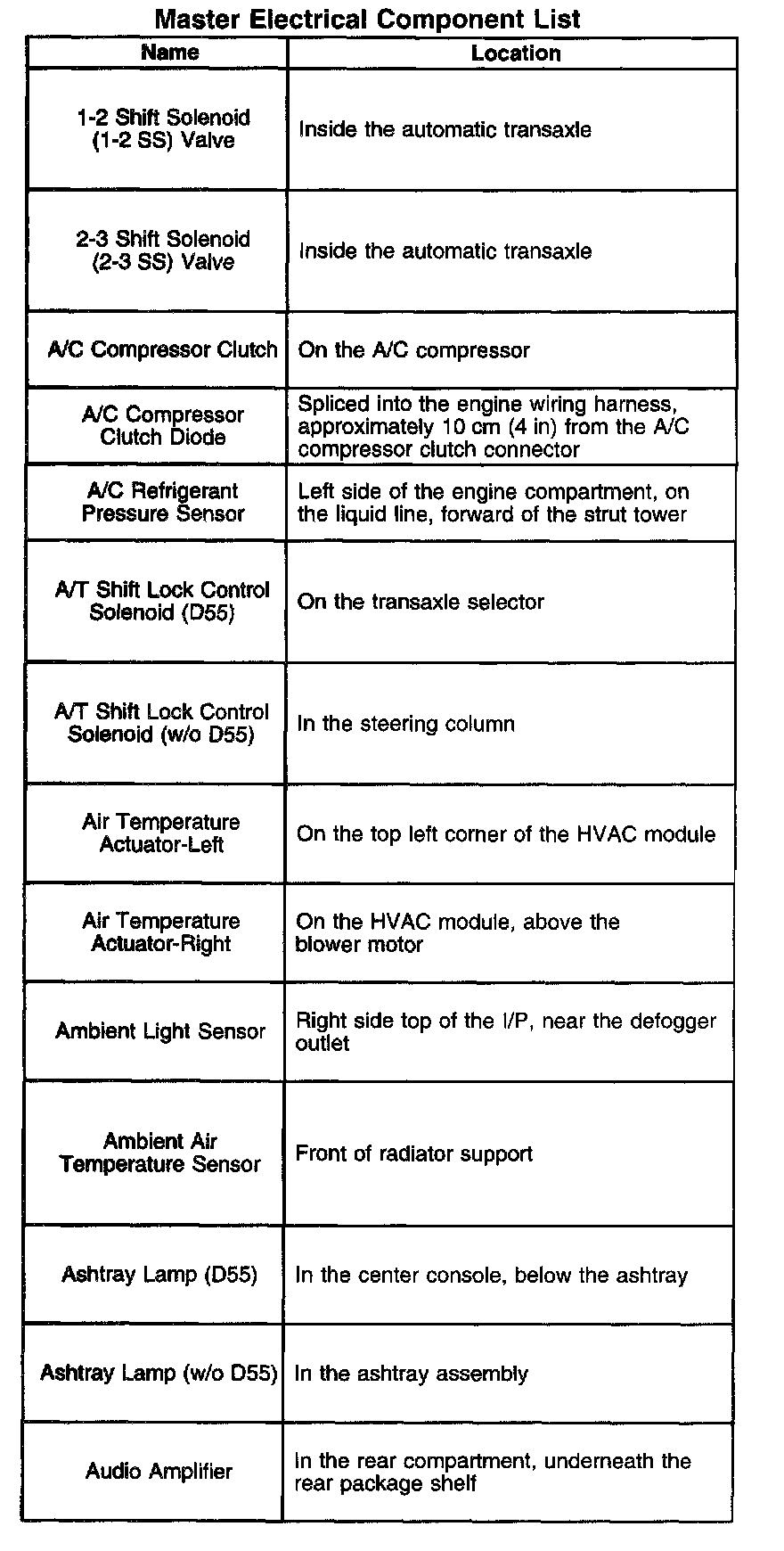

1-2 Shift Solenoid (1-2 SS) Valve - Audio Amplifier:

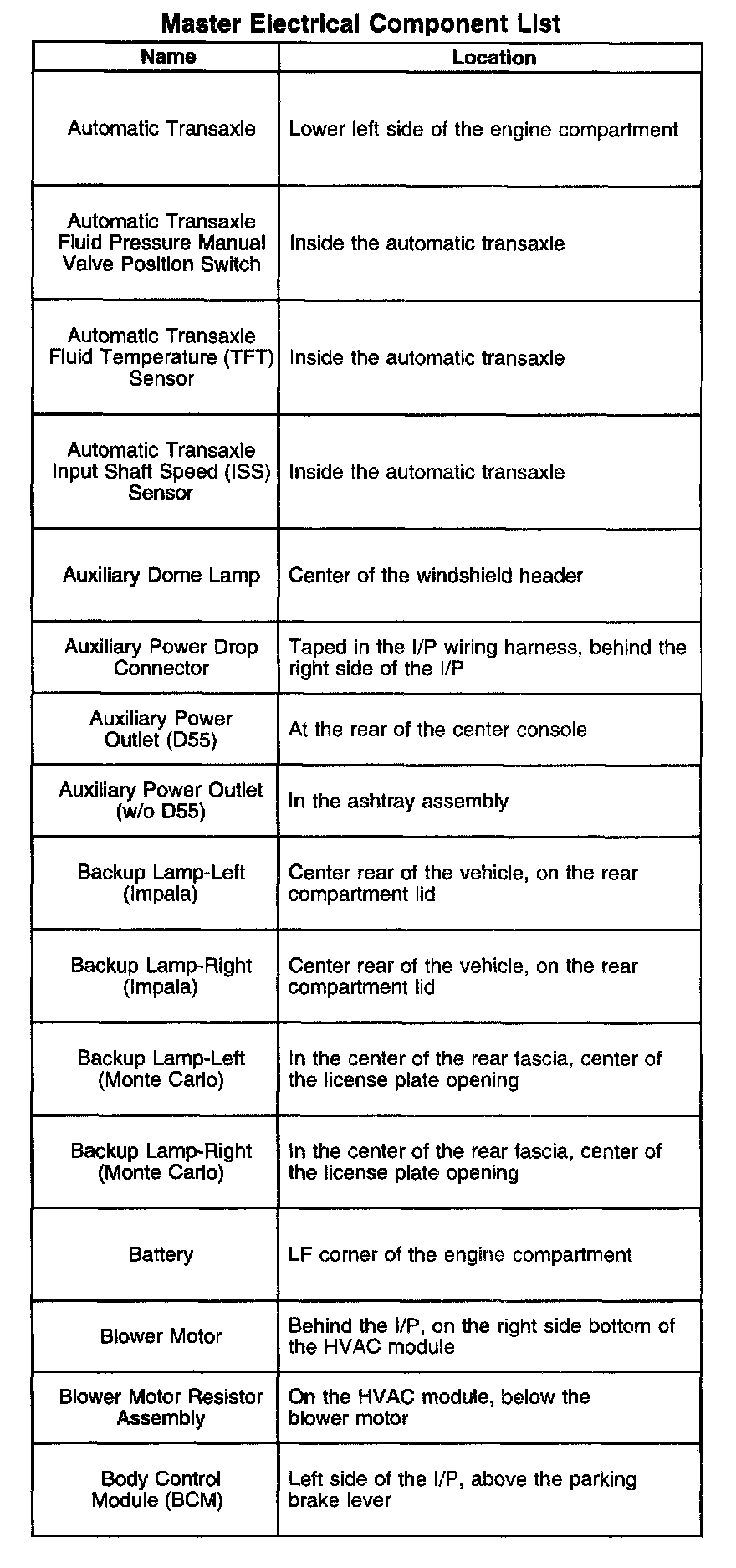

Automatic Transaxle - Body Control Module (BCM):

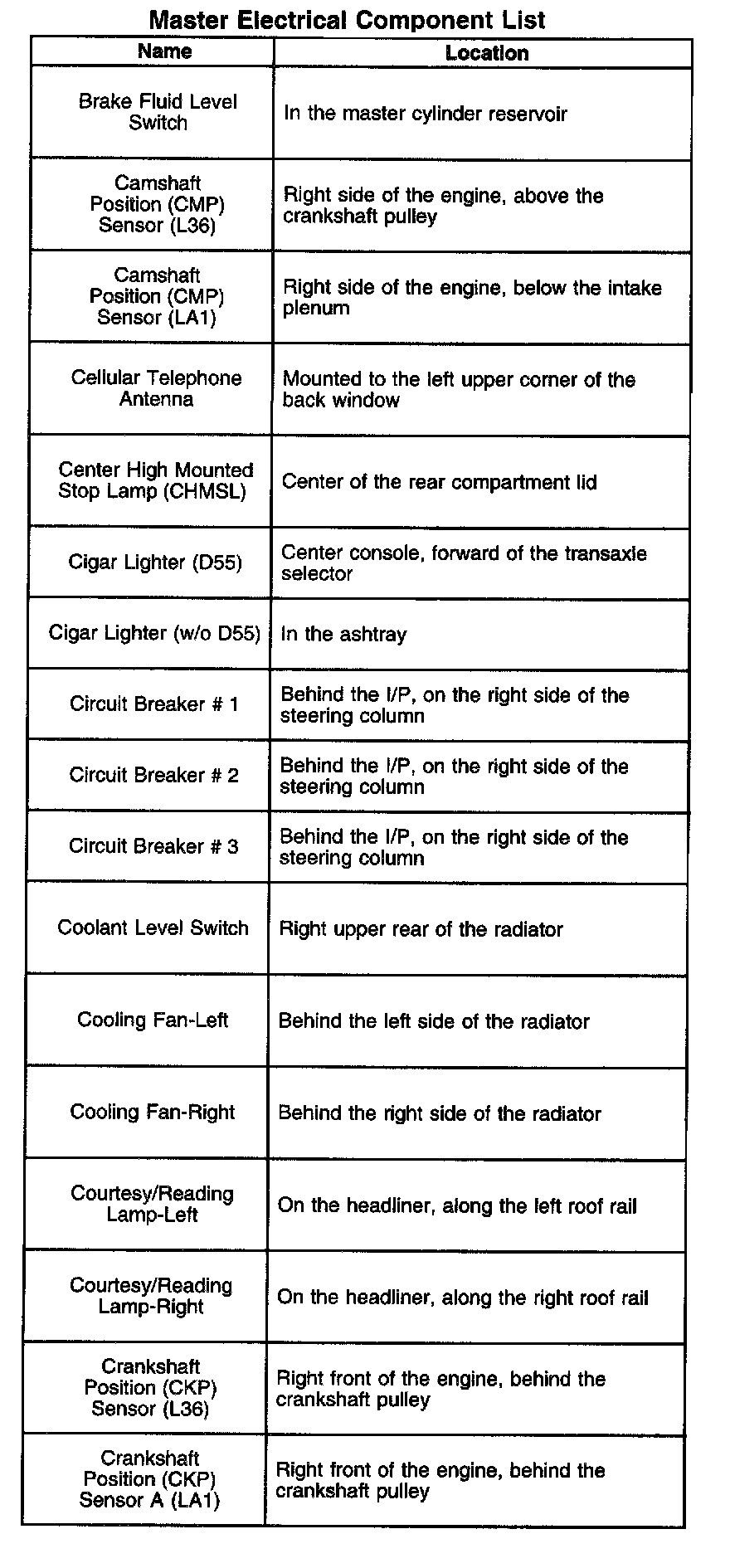

Brake Fluid Level Switch - Crankshaft Position (CKP) Sensor A (LA1):

Crankshaft Position (CKP) Sensor B (LA1) - Electronic Brake Control Module (EBCM):

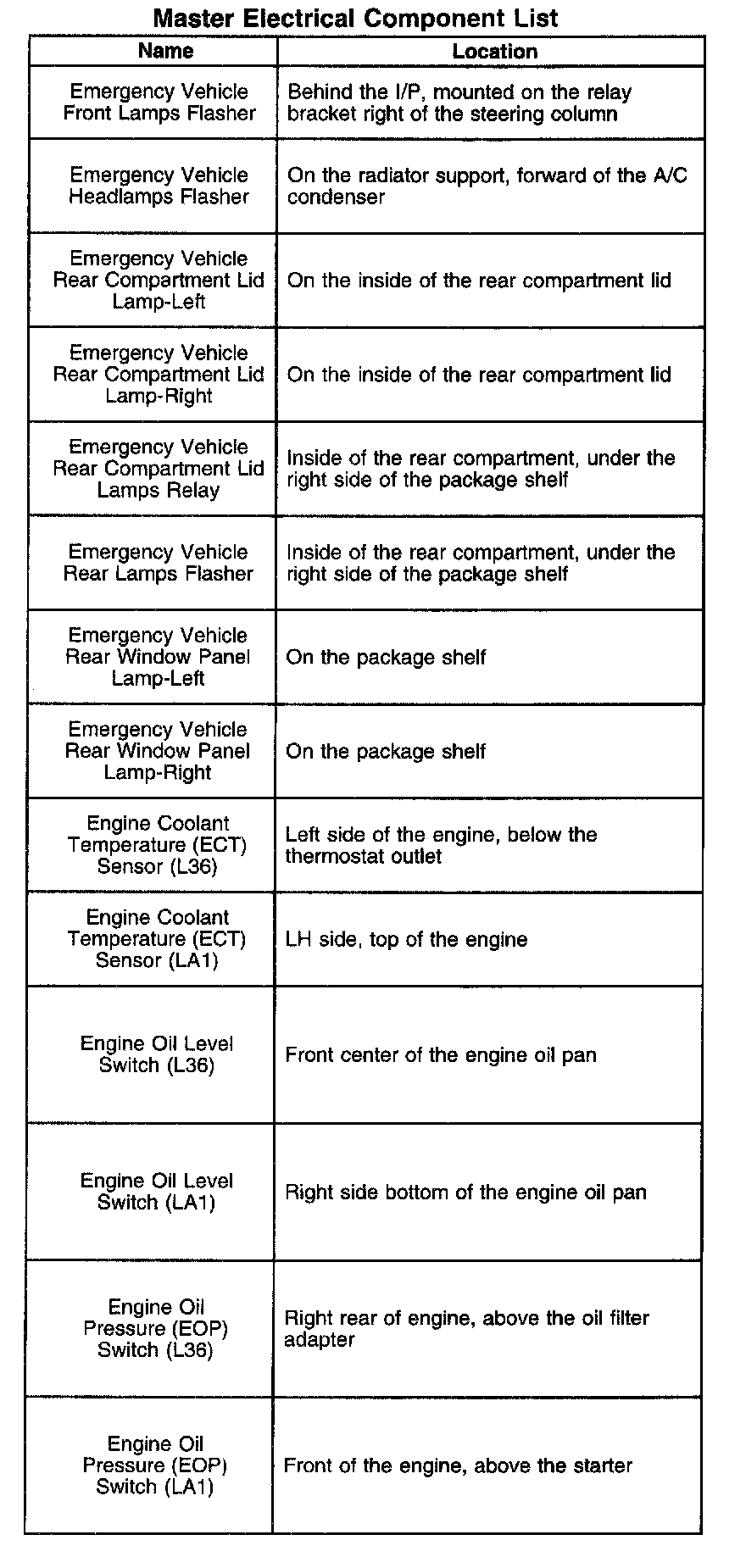

Emergency Vehicle Front Lamps Flasher - Engine Oil Pressure (EOP) Switch (LA1):

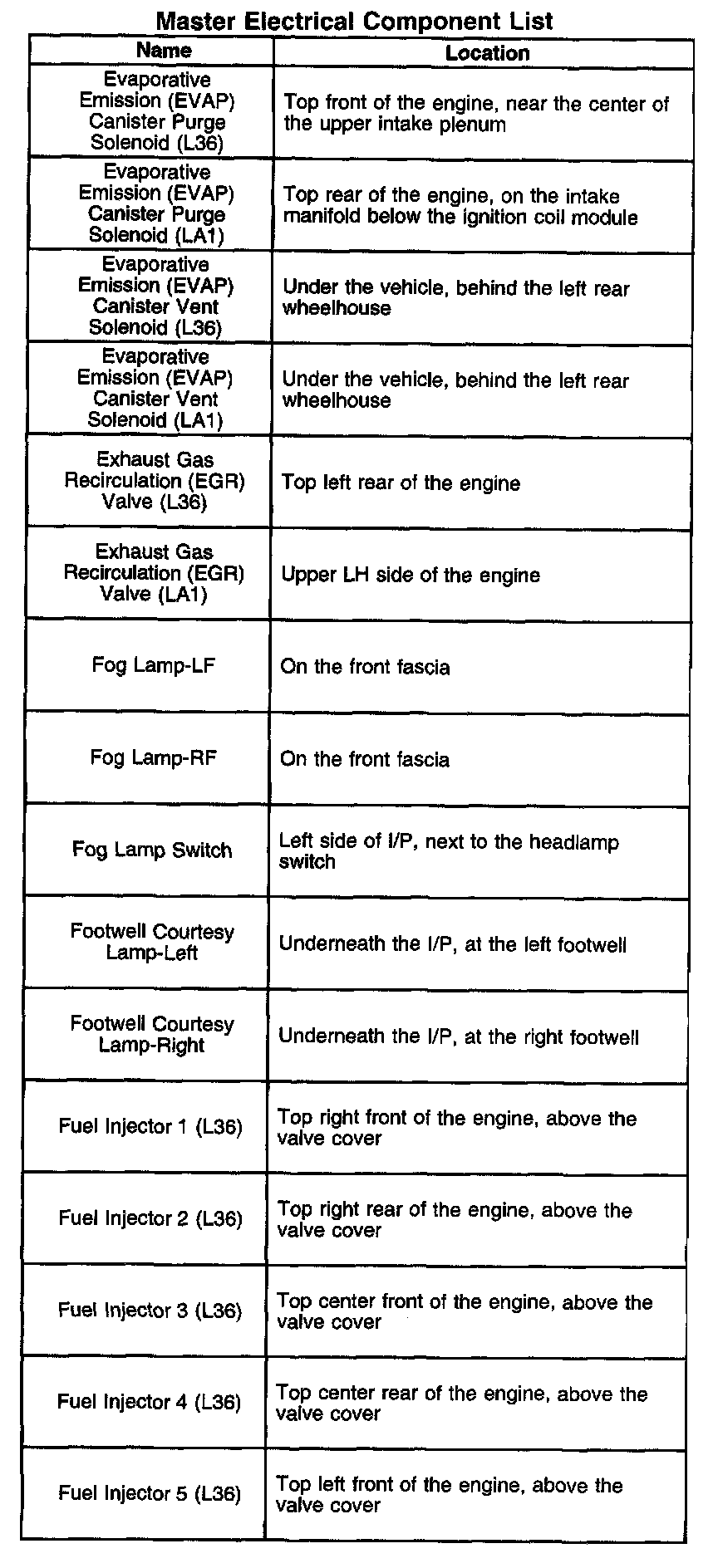

Evaporative Emission (EVAP) Canister Purge Solenoid (L36) - Fuel Injector 5 (L36):

Fuel Injector 6 (L36) - Fusible Links-Starter:

Fusible Links-Junction Block-Underhood - Heated Seat Relay-Driver:

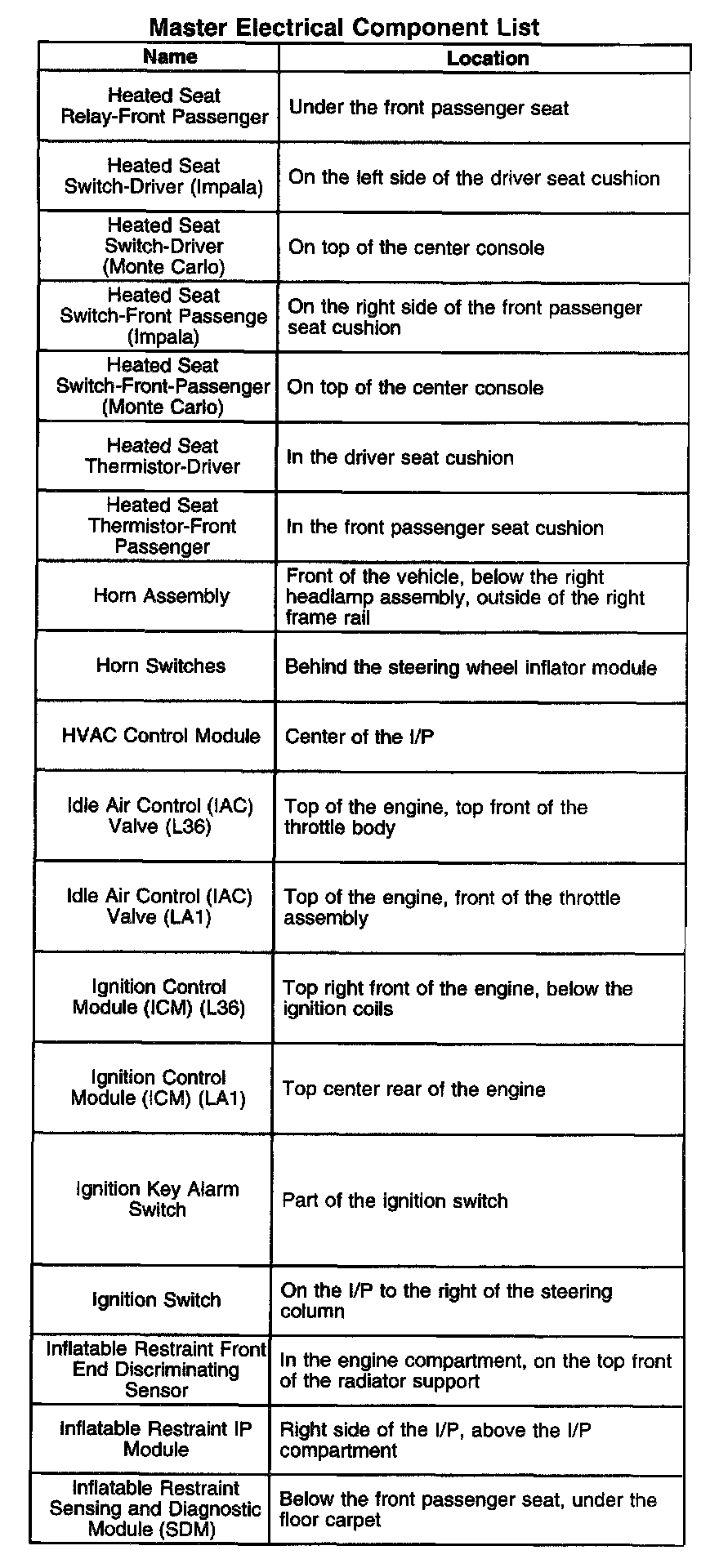

Heated Seat Relay-Front Passenger - Inflatable Restraint Sensing And Diagnostic Module (SDM):

Inflatable Restraint Side Impact Module-LF - Knock Sensor (KS) (LA1):

License Lamp-Left (Impala) - Powertrain Control Module (PCM) (L36):

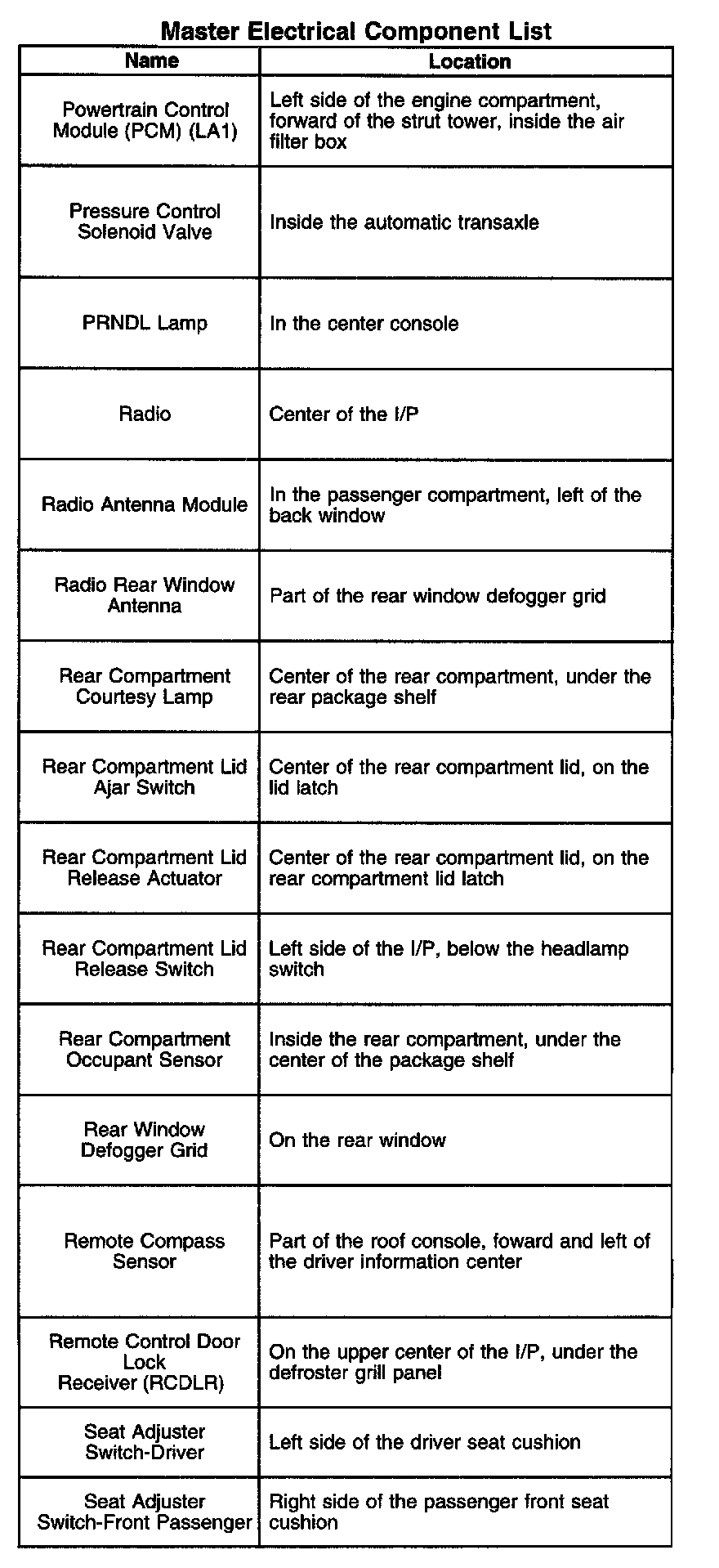

Powertrain Control Module (PCM) (LA1) - Seat Adjuster Switch-Front Passenger:

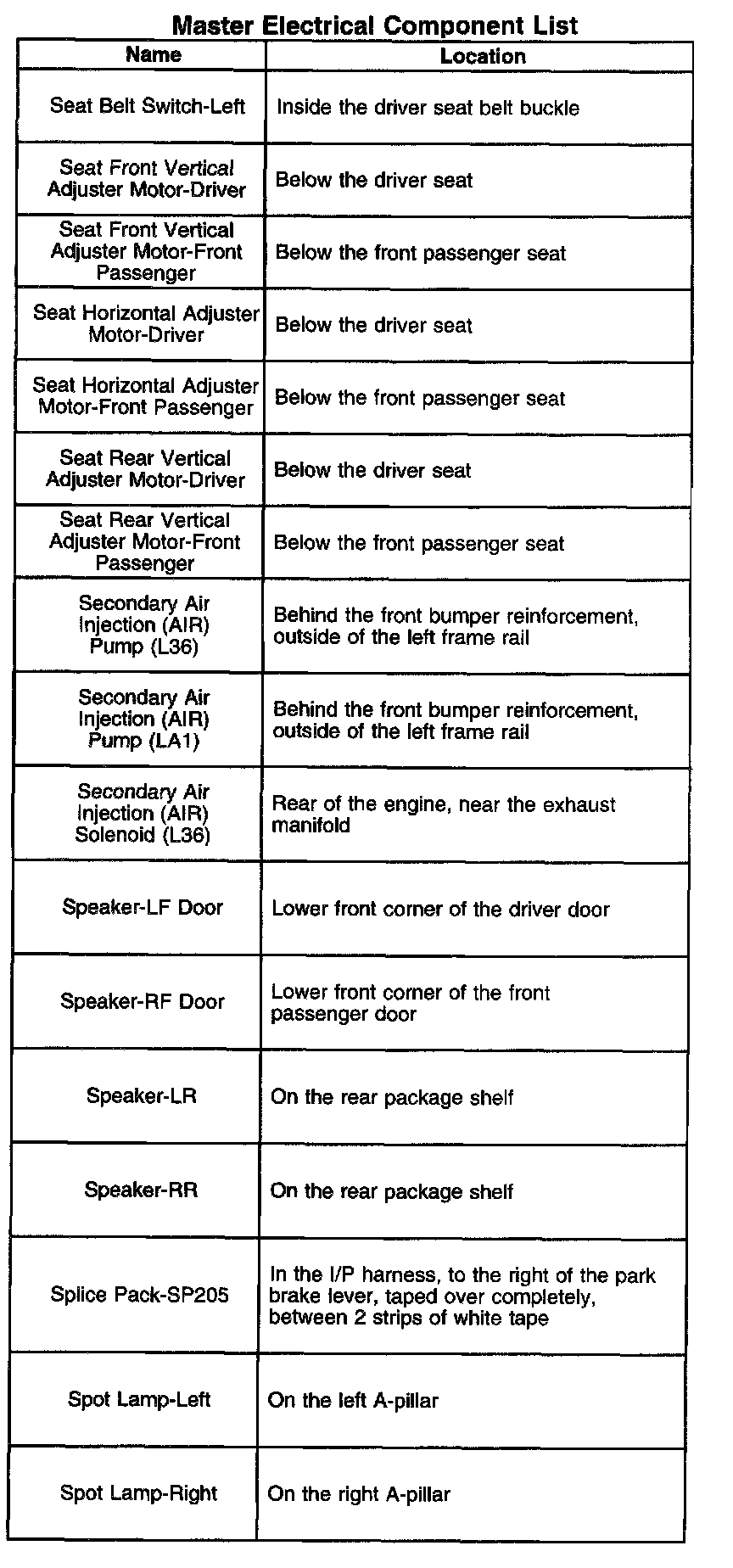

Seat Belt Switch-Left - Spot Lamp-Right:

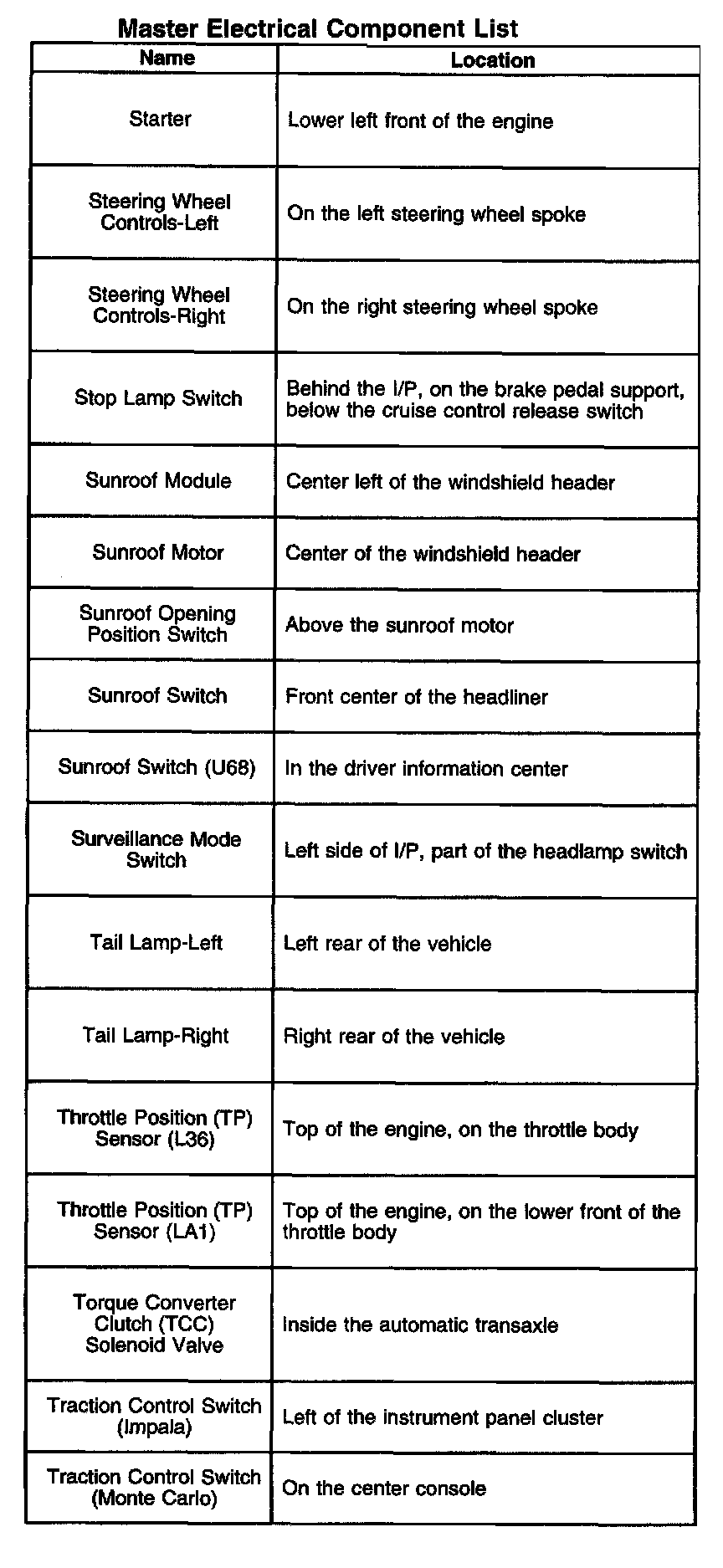

Starter - Traction Control Switch (Monte Carlo):

Turn Signal/Multifunction Switch - Windshield Washer Fluid Level Switch:

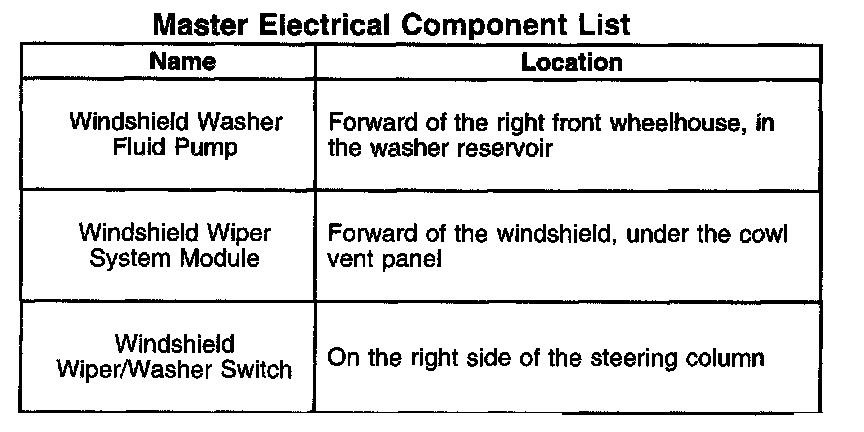

Windshield Washer Fluid Pump - Windshield Wiper/Washer Switch:

"For a description of the RPO Code(s) shown in this article or any of the images therein, refer to the RPO Code List found at Vehicle/Application ID". RPO Codes
