Impact Sensor
>>
Inflatable Restraint Side Impact Sensor (SIS)
Inflatable Restraint Side Impact Sensor (SIS)

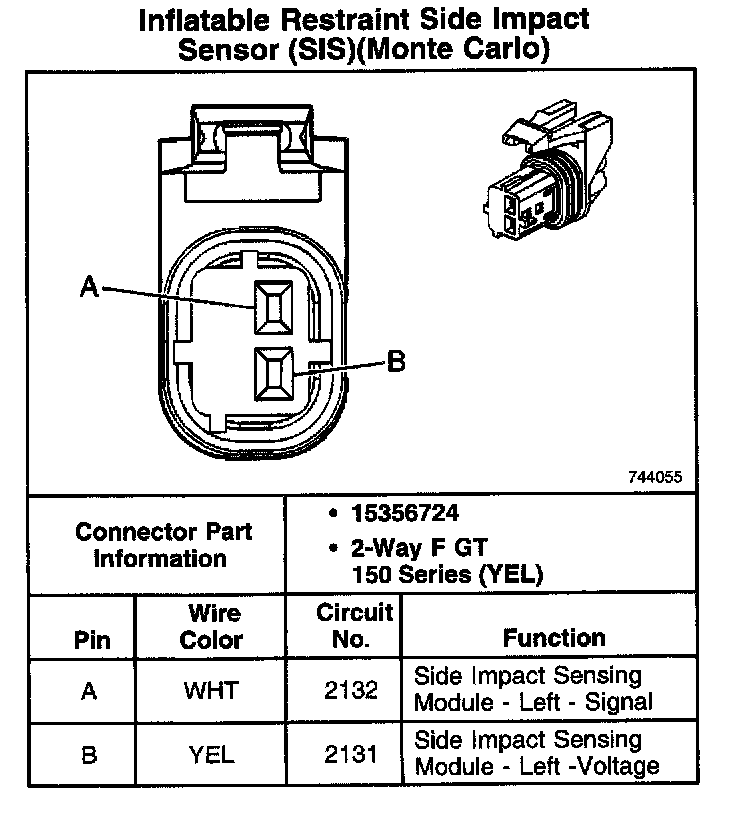

Inflatable Restraint Side Impact Sensor (SIS) (Monte Carlo):
