Seat Temperature Switch
Seat Temperature Switch
Heated Seat Switch-Driver (Monte Carlo):

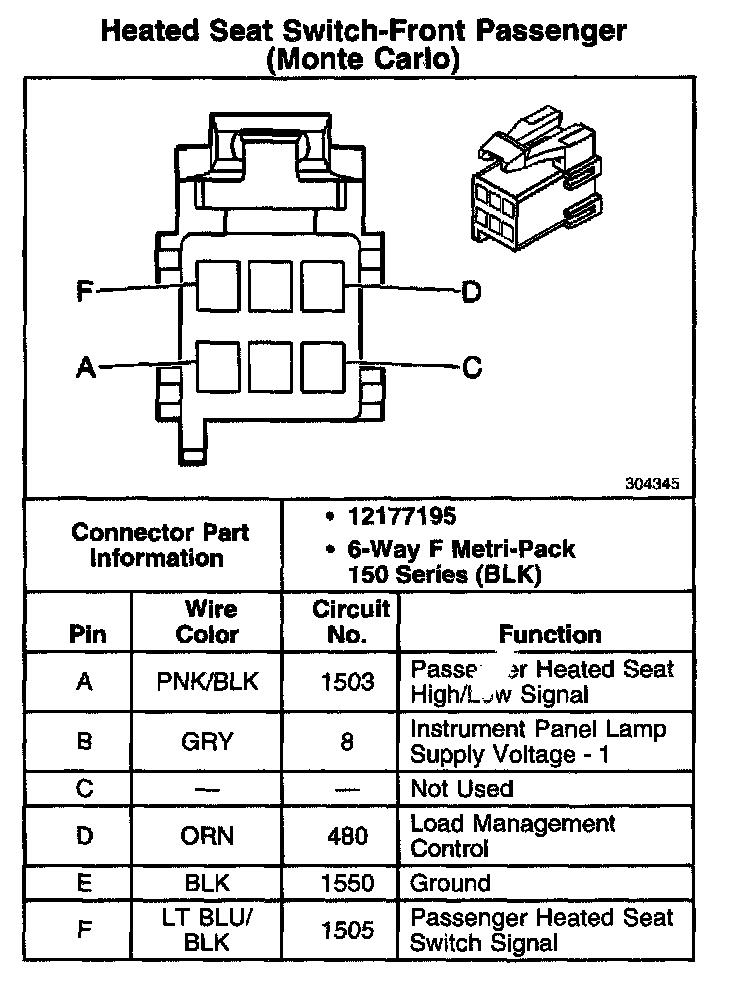

Heated Seat Switch-Front Passenger (Monte Carlo):
