Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
2002
>>
Monte Carlo V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Transmission Control Systems
>>
Shift Lock Control
Shift Lock Control

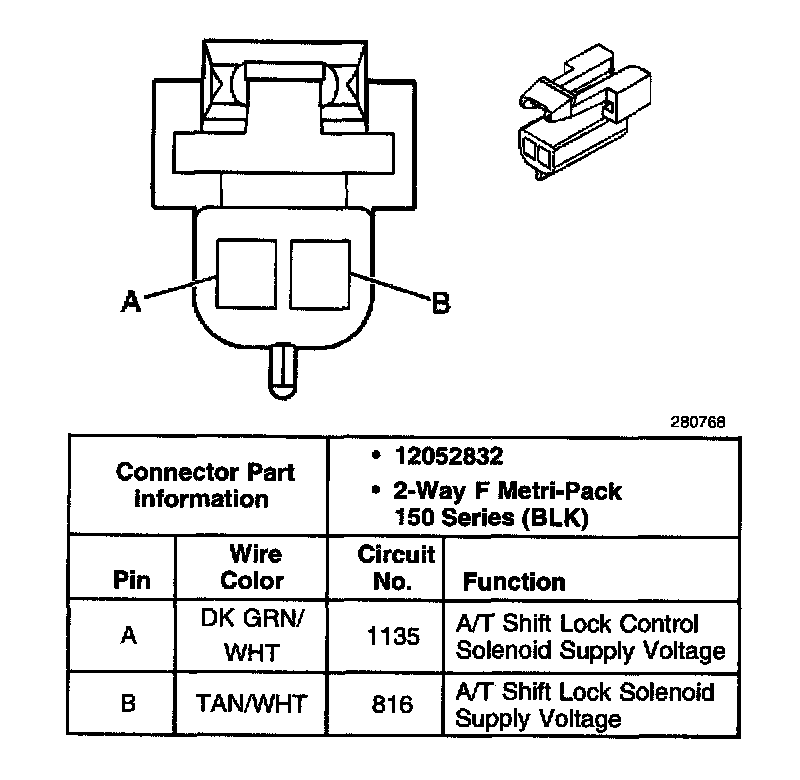

Automatic Transmission Shift Lock Control Connector End Views
A/T Shift Lock Control Solenoid
