Decklid Release (W/O Entrapment Protection)

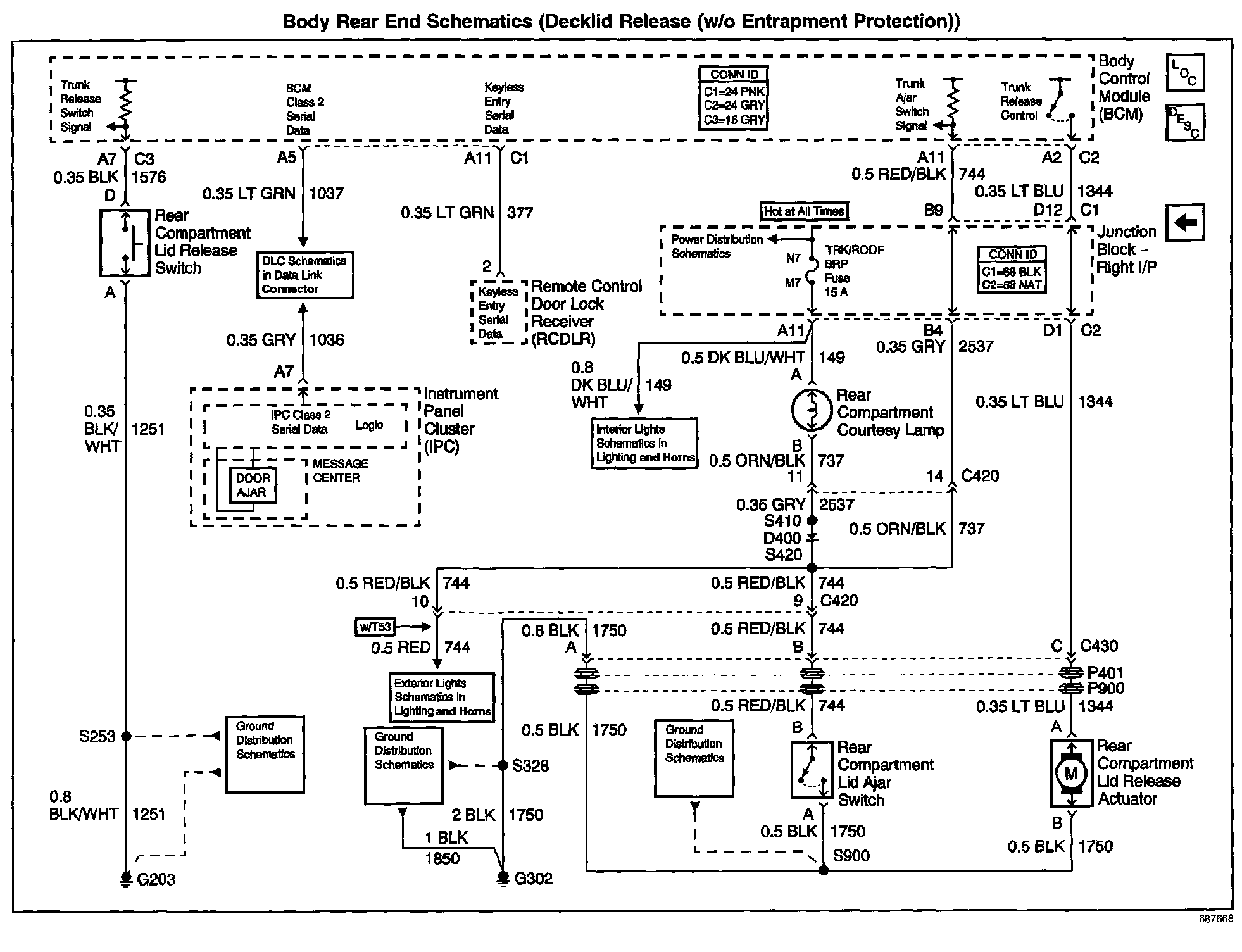

Body Rear End Schematics: Decklid Release (W/O Entrapment Protection):
