Chevrolet
>>
2002
>>
Monte Carlo V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Harness
>>
Right Upper Rear of Passenger Compartment
Right Upper Rear of Passenger Compartment

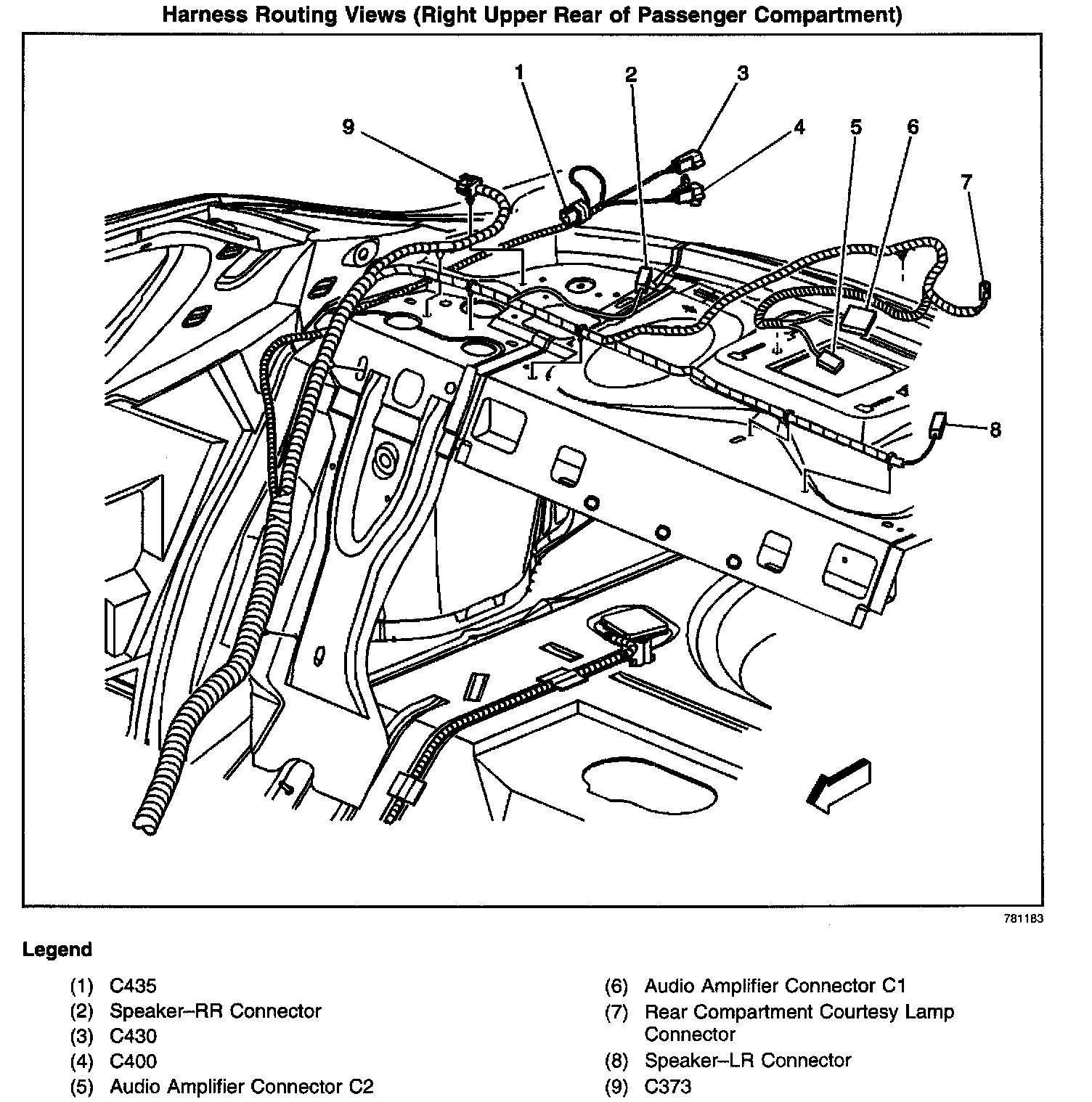

Harness Routing Views (Right Upper Rear Of Passenger Compartment):
