Closeout/Insulator Panel Replacement - Left

Closeout/Insulator Panel Replacement - Left

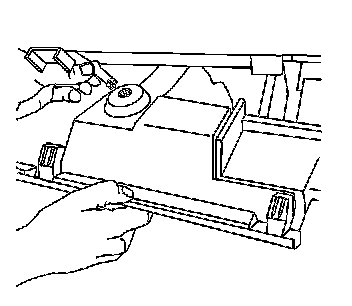

Removal Procedure




1. Release the left instrument panel (IP) insulator tabs from the lower IP trim pad retainers.
2. Rotate the courtesy lamp counterclockwise in order to disconnect the courtesy lamp from the insulator.




3. Remove the insulator from the stud at the accelerator pedal.
4. Remove the insulator.

Installation Procedure




1. Position the left IP insulator to the vehicle. Install the insulator to the stud at the accelerator pedal.




2. Rotate the courtesy lamp clockwise in order to connect the courtesy lamp to the insulator.
3. Install the insulator tabs to the lower IP trim pad retainers.
