Instrument Panel (IP) - Air Deflector/Louver - Left

REMOVAL PROCEDURE




1. Remove the instrument panel (IP) cluster trim plate.

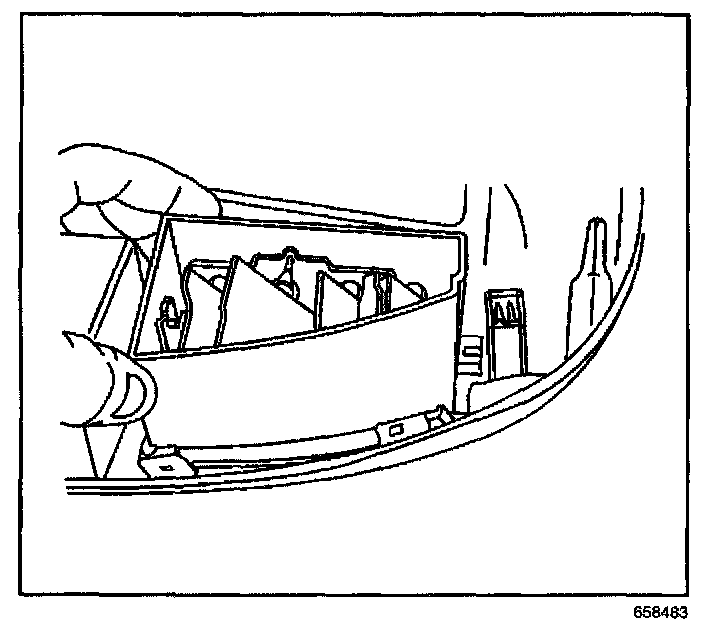

2. Use a small flat-bladed tool and pry the upper and lower retainers of the left IP air outlet vent.

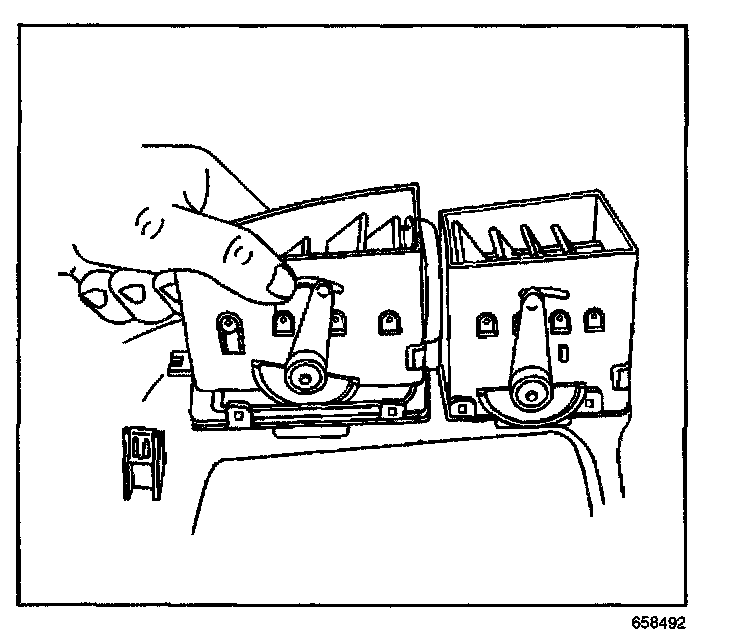

3. Lift out the left air outlet vent from the IP cluster trim plate.

INSTALLATION PROCEDURE

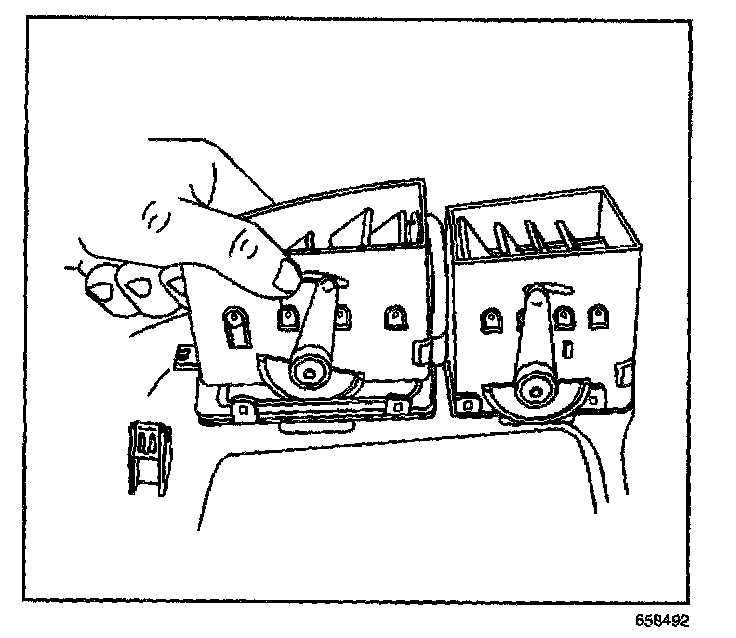

1. Position the air outlet vent to the upper retainer tabs on the left IP cluster trim plate.
2. Position the air outlet vent to the lower retainer tabs on the left IP cluster trim plate.




3. Install the air outlet vent to the left IP cluster trim plate by pressing into place until the retainers are fully seated.
4. Inspect the air outlet vent for proper operation.
5. Install the IP cluster trim plate.
