Instrument Panel (IP) - Air Deflector/Louver - Right

REMOVAL PROCEDURE




1. Remove the right instrument panel (IP) trim plate.

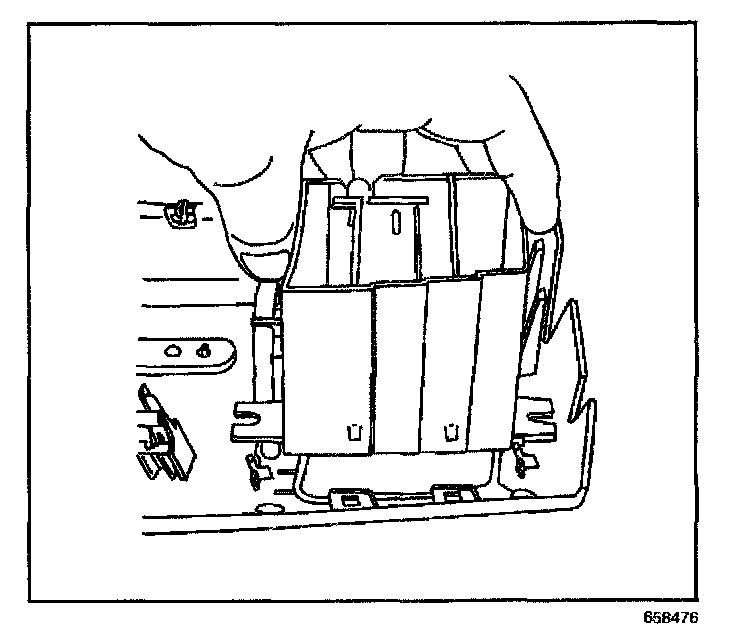

2. Use a small flat-bladed tool and pry the upper and the lower retainers of the right IP air outlet vent.




3. Lift the air outlet vent from the right IP trim plate.

INSTALLATION PROCEDURE




1. Position the air outlet vent to the upper retainer tabs on the right IP trim plate.




2. Position the air outlet vent to the lower retainer tabs on the right IP trim plate.

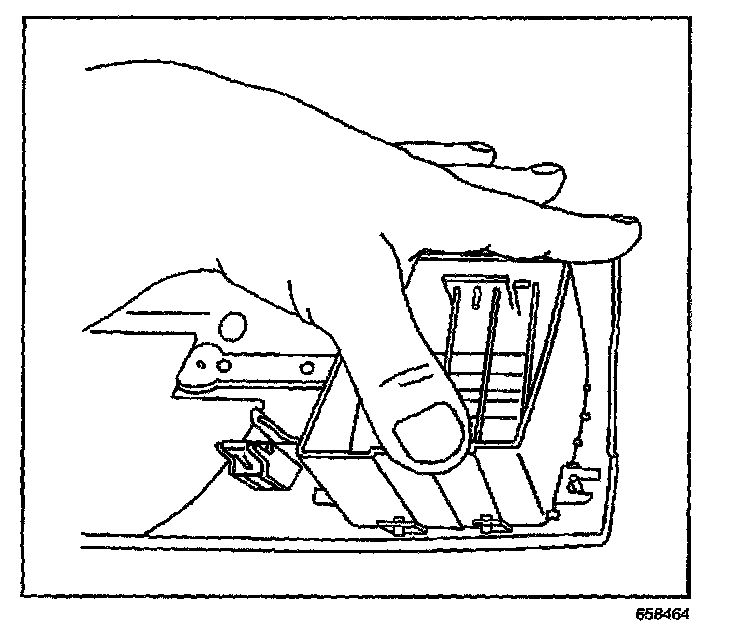

3. Install the air outlet vent to the right IP trim plate. Press into place until the retainers are fully seated.
4. Inspect the air outlet vent for proper operation.
5. Install the right IP trim plate.
