Emergency Vehicle Rear Compartment Lid Lamp-Left
Emergency Vehicle Rear Compartment Lid Lamp-Left

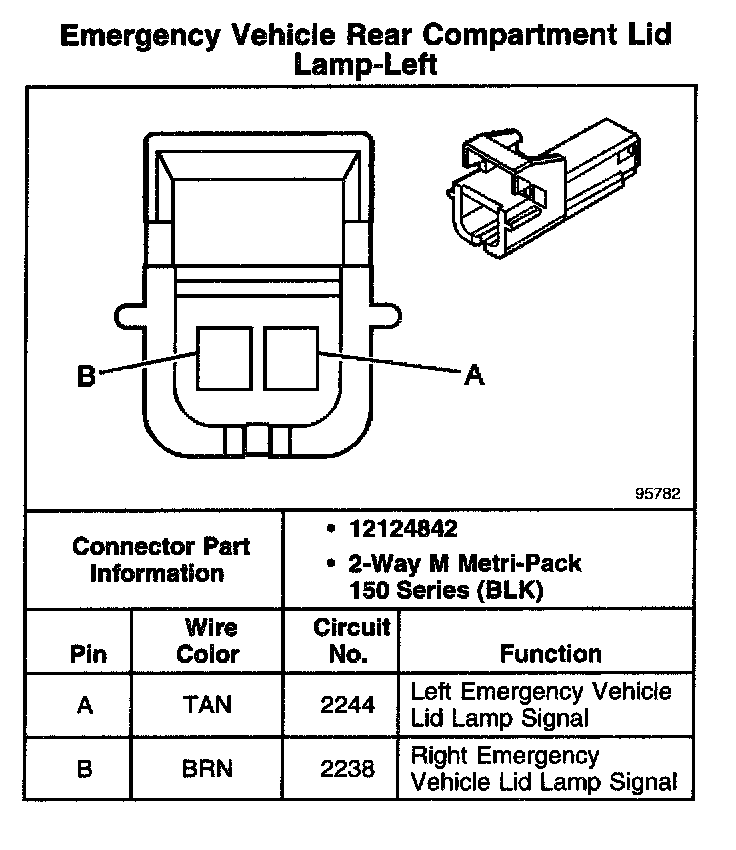

Emergency Vehicle Rear Compartment Lid Lamp-Left:
