Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
2002
>>
Monte Carlo V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Fog/Driving Lamp
>>
Diagrams
>>
Connector Views
Connector Views

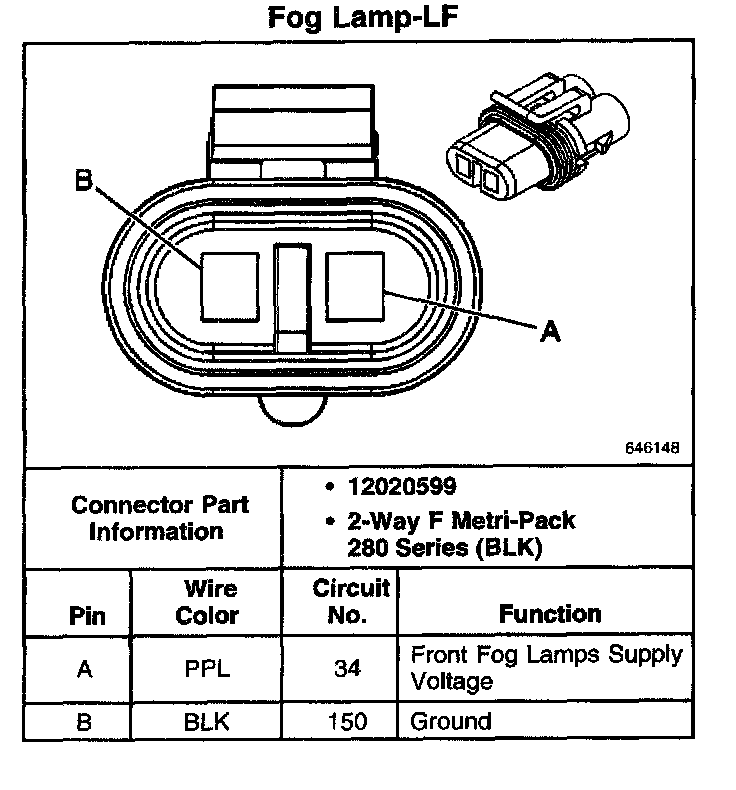

Fog Lamp-LF:

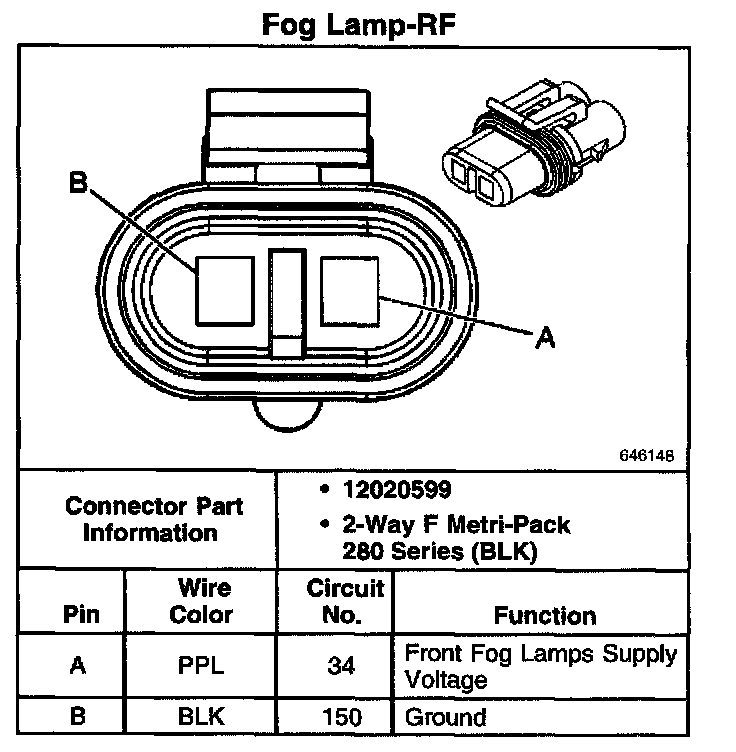

Fog Lamp-RF:
