Power and Ground Distribution
>>
Application and ID
>>
Junction Block-Underhood (Bottom)
>>
Application Table
Application Table

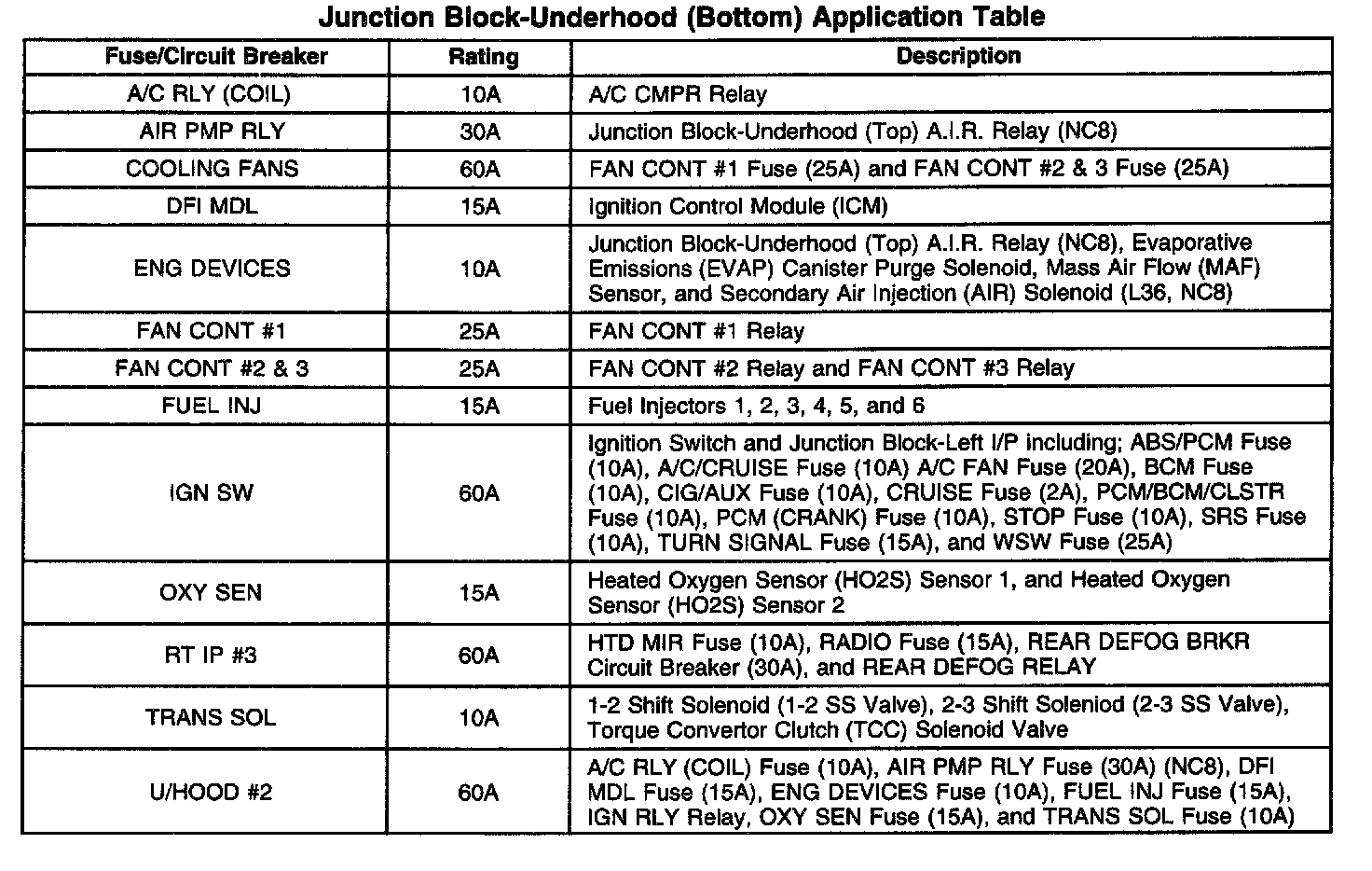

Junction Block-Underhood (Bottom) Application Table:
