Power and Ground Distribution
>>
Application and ID
>>

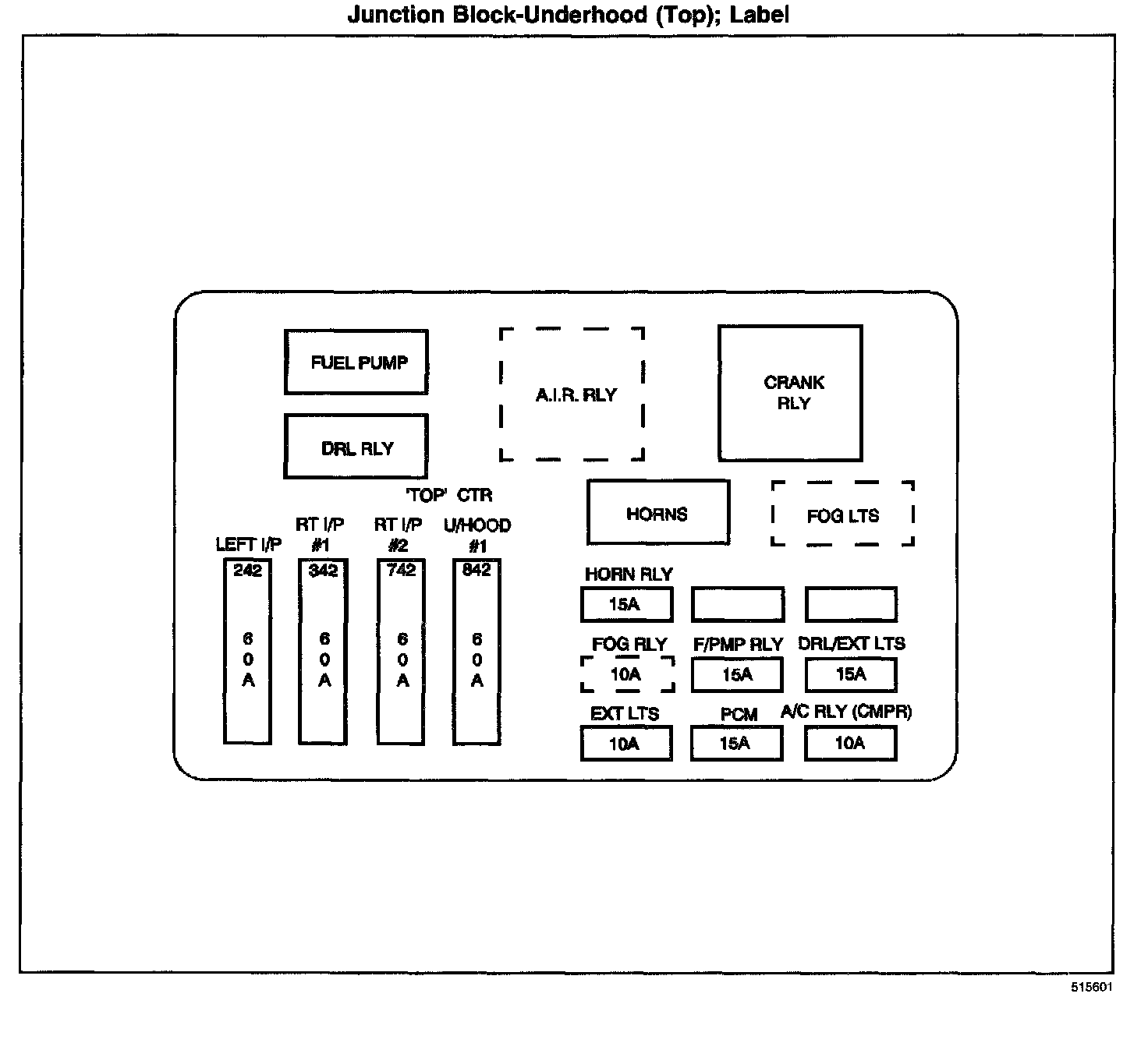

Junction Block-Underhood (Top)
>>
Label
Label
Underhood Fuse Block (Upper) - RH Engine Compartment:
