System Specifications



DESCRIPTIVE/DIMENSIONAL SPECIFICATIONS

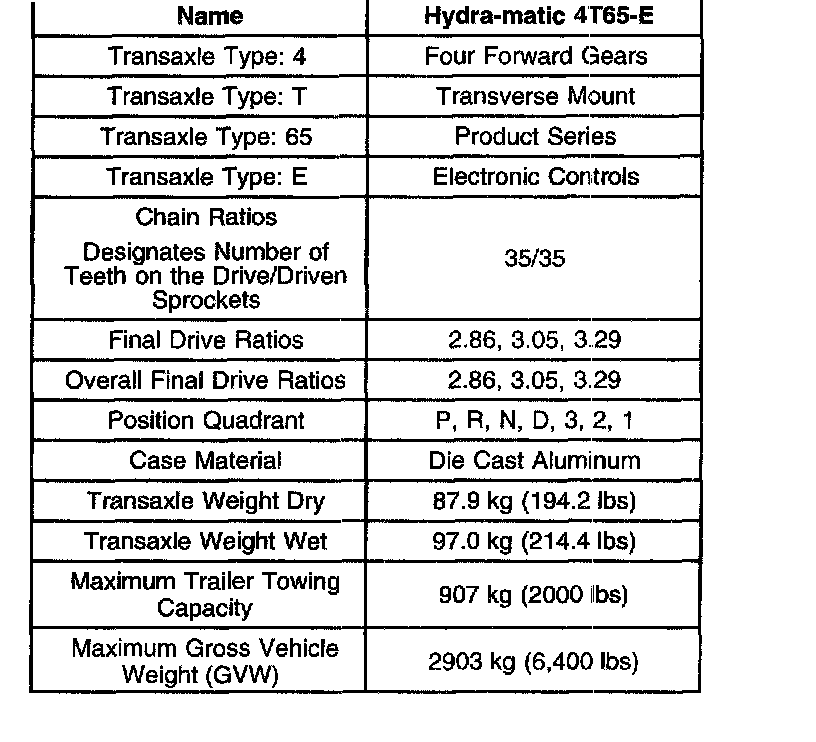

Automatic Transaxle - 4T65-E (Part 1 of 2)

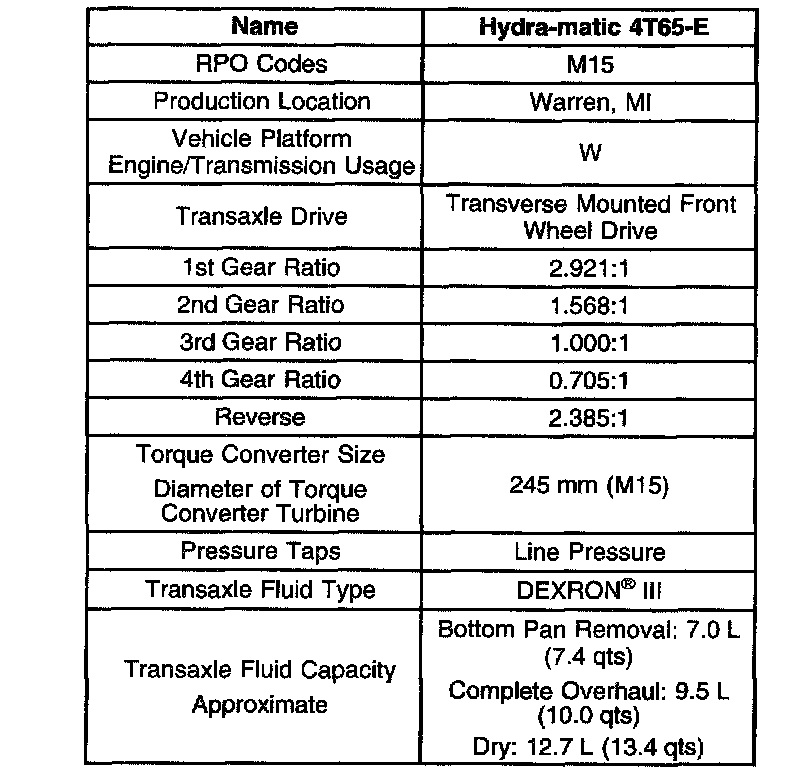

Automatic Transaxle - 4T65-E (Part 2 of 2)



TIGHTENING SPECIFICATIONS

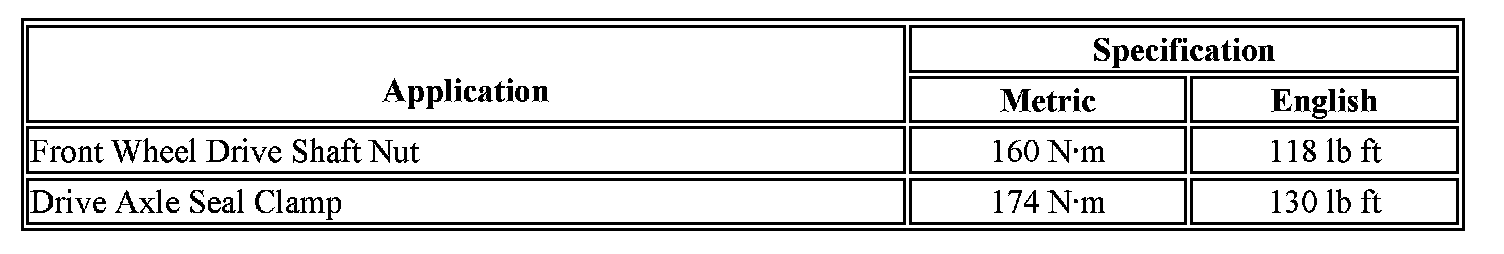

Wheel Drive Shafts Fastener Tightening Specifications

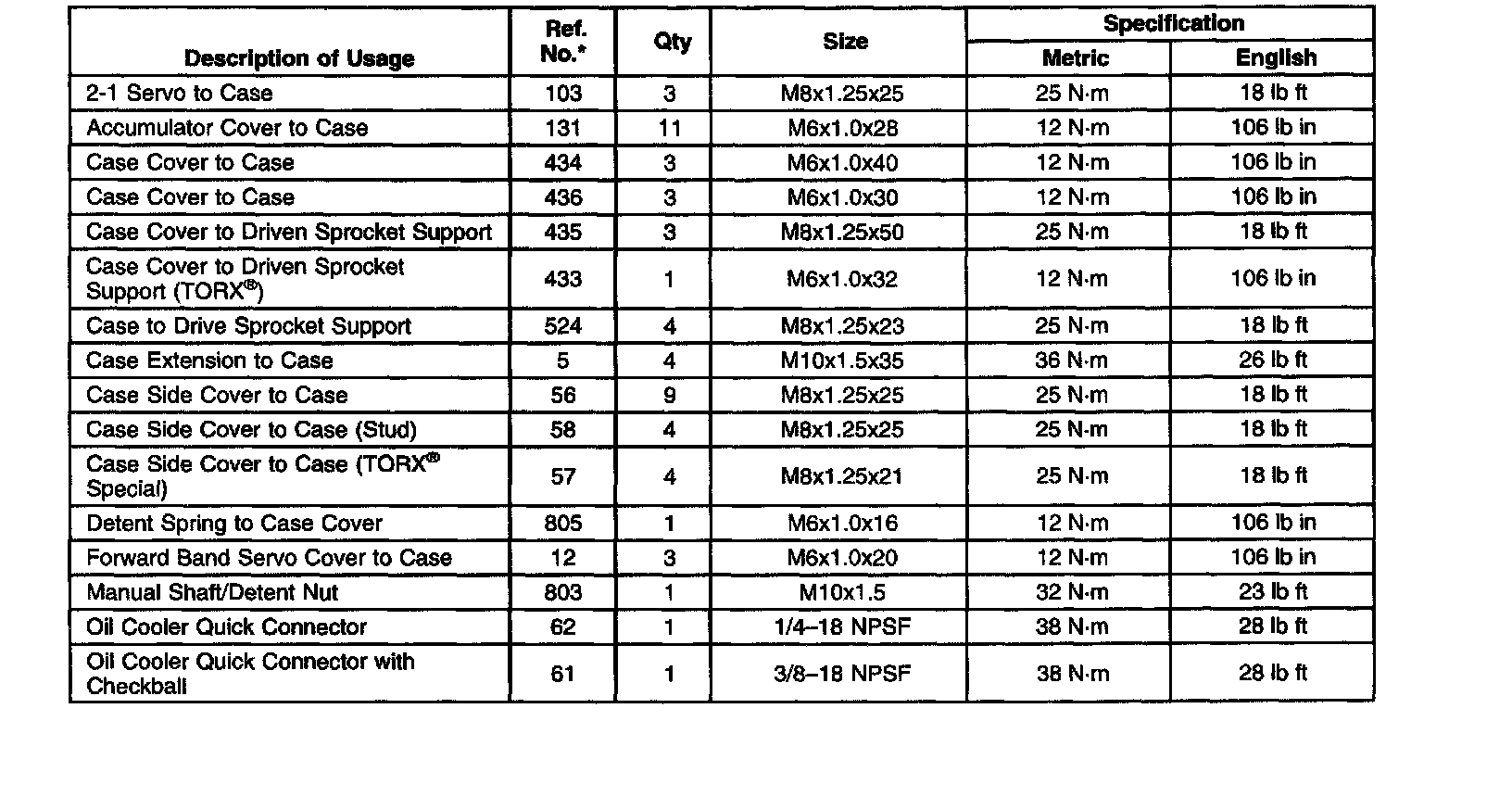

Automatic Transaxle - 4T65-E Fastener Tightening (Part 1 of 2)






Automatic Transaxle - 4T65-E Fastener Tightening (Part 2 of 2)
