Junction Block-Underhood (Bottom) Wire Entry Pinout

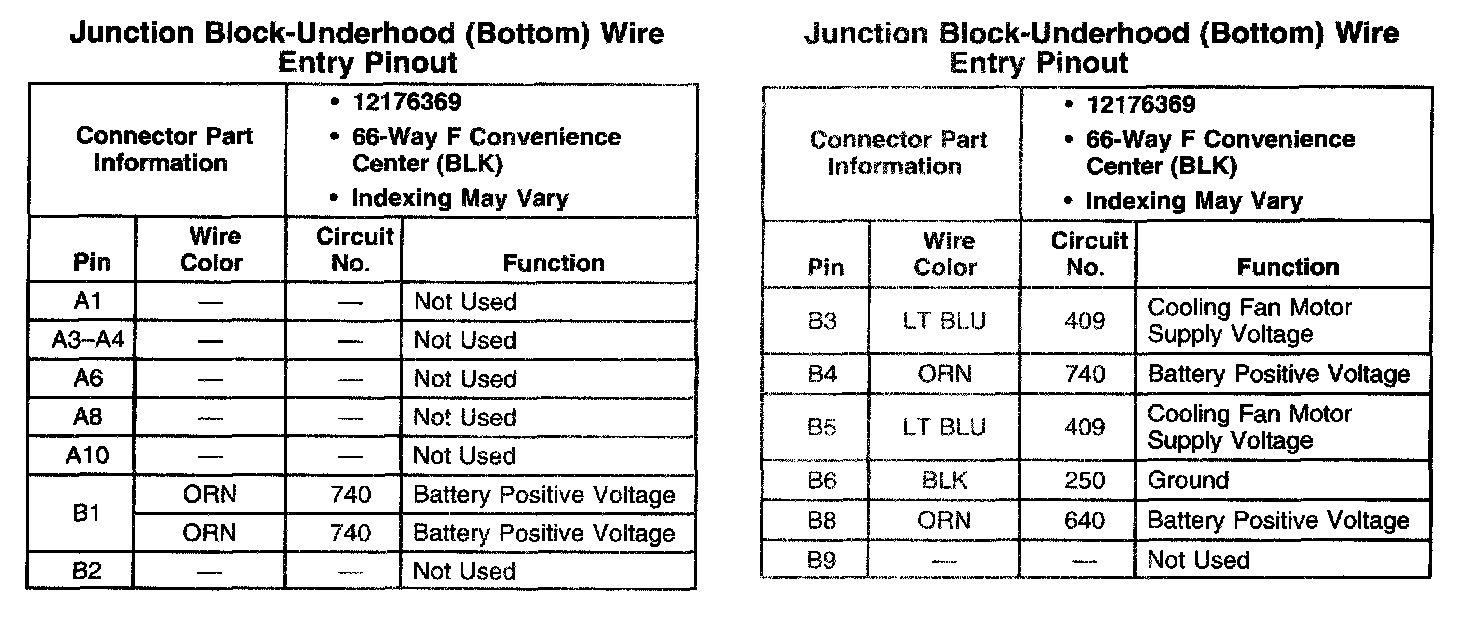

Junction Block-Underhood (Bottom) Wire Entry Pinout Part 1:

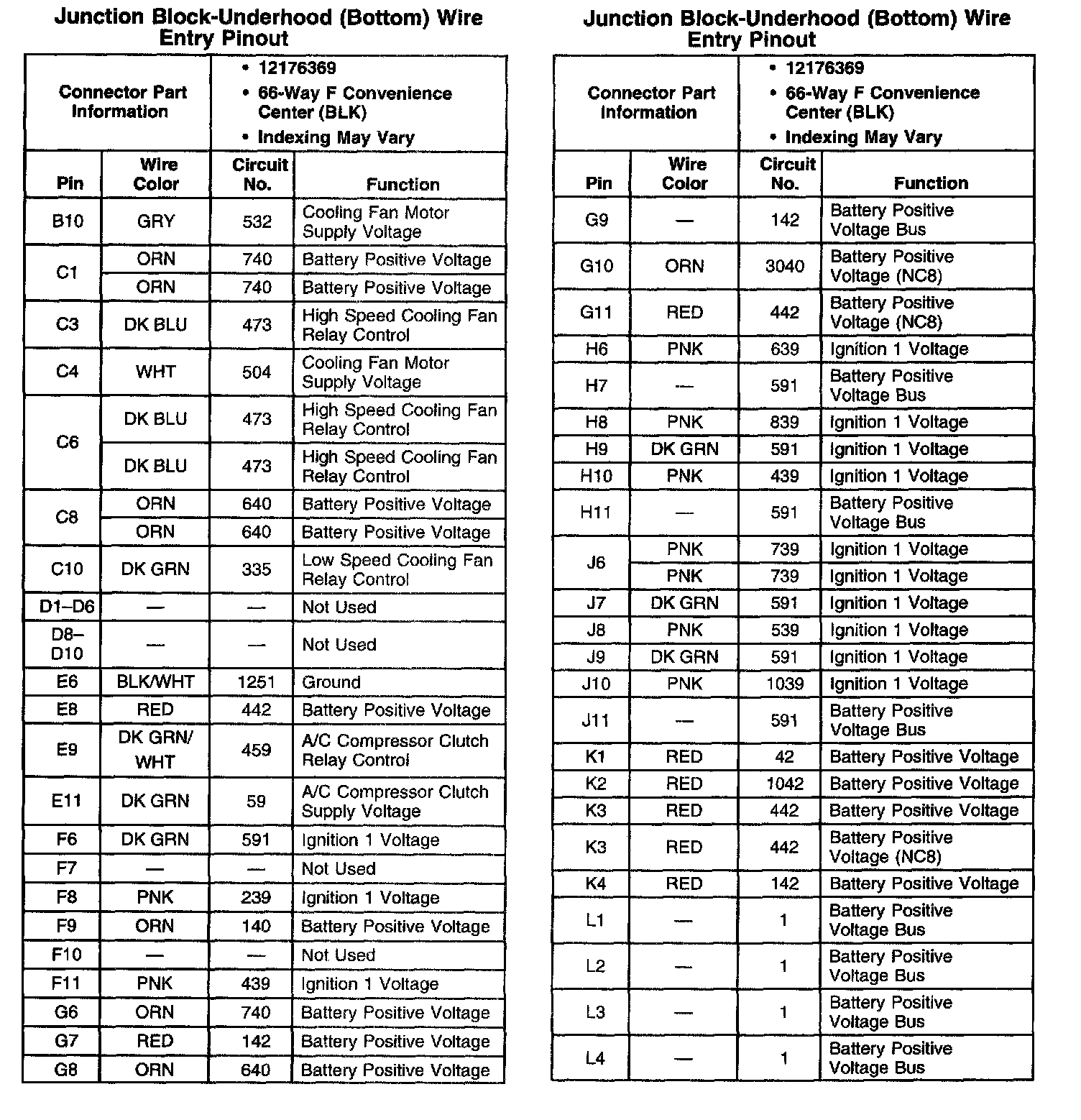

Junction Block-Underhood (Bottom) Wire Entry Pinout Part 2:
