Home >> Chevrolet >> 2002 >> Monte Carlo V6-3.4L VIN E >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Locations >> Console and Center of Floor

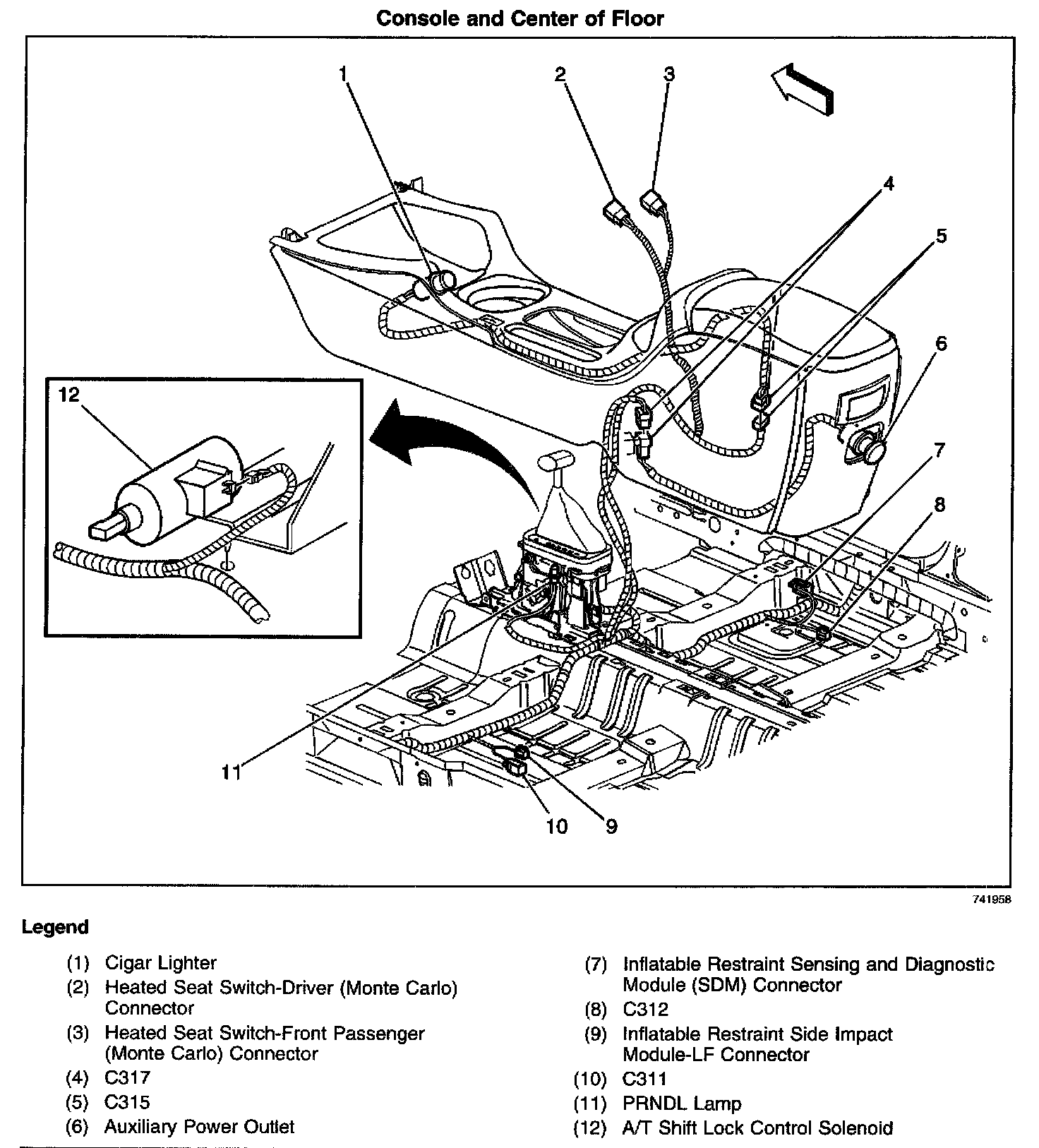

Console and Center of Floor

Locations View:
