Transmission

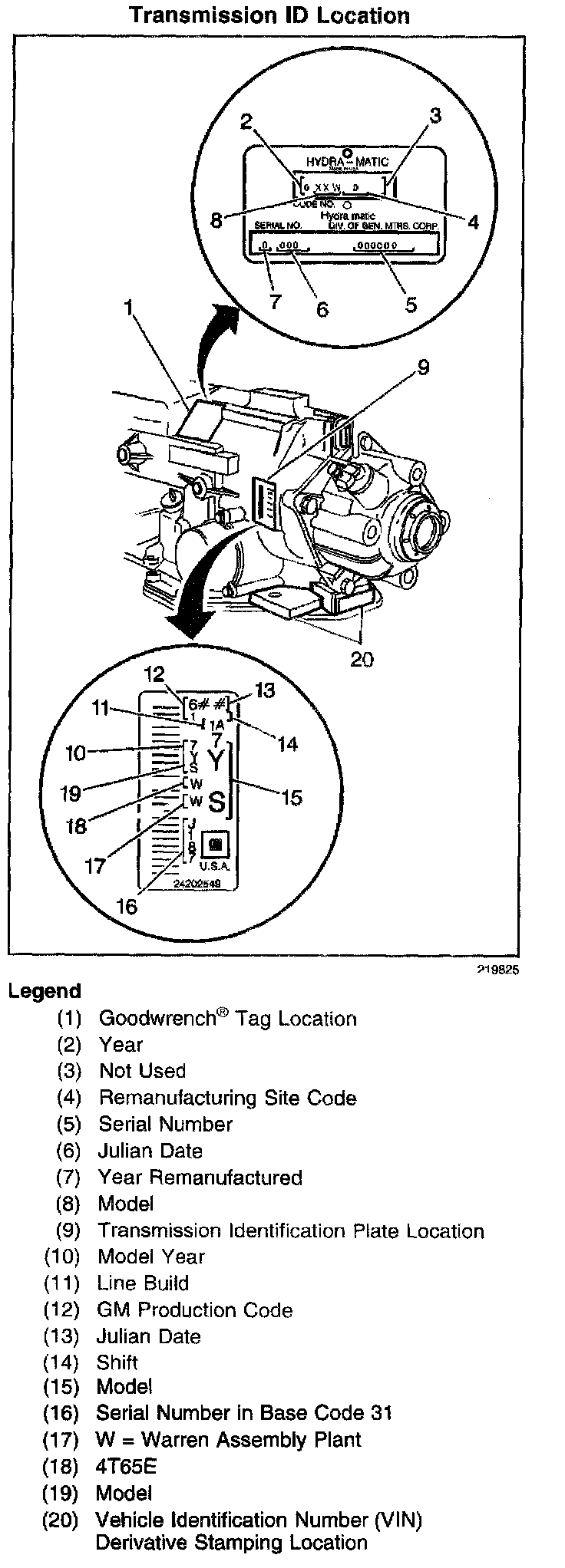

Transmission ID Location:

All automatic transmissions have a metal identification (ID) nameplate (9) attached to the case exterior.

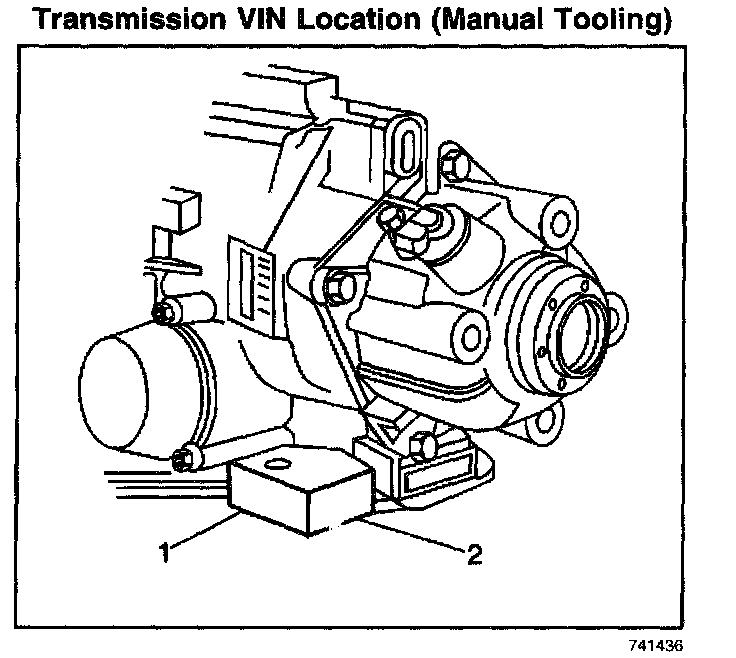

Transmission VIN Location (Manual Tooling)

Transmission VIN Location (Manual Tooling):

The primary (1) and secondary (2) Manual Tooling VIN Derivative Locations are on the casting of the transmission housing.

VIN Derivative Location (Semi - Automatic Tooling)

VIN Derivative Location (Semi - Automatic Tooling):

The location for the Semi-Automatic VIN derivative (1) is on the transmission housing.
