Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
2002
>>
Monte Carlo V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Amplifier, Sound System
Amplifier, Sound System
Audio Amplifier, C1:

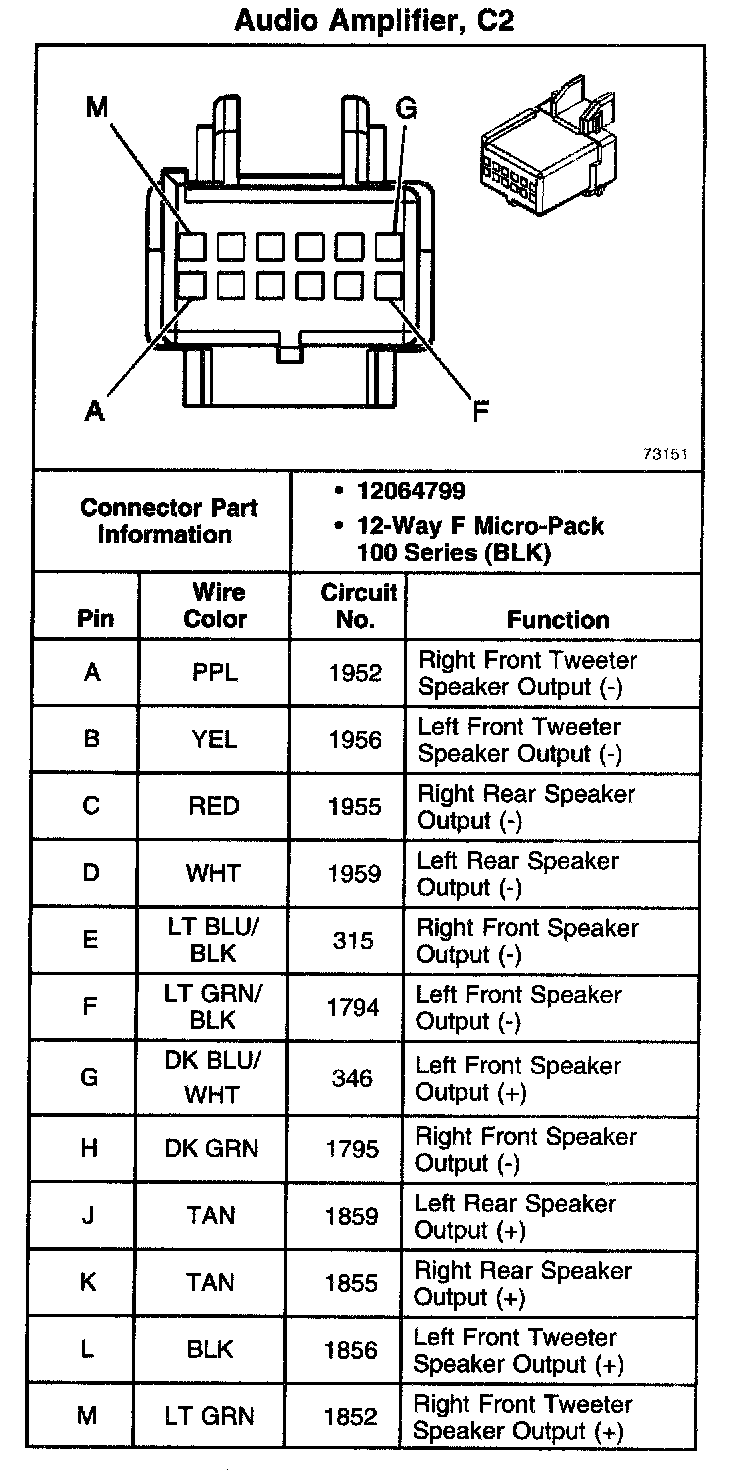

Audio Amplifier, C2:
