Power Door Lock Actuator

Door Lock-Driver, C1:

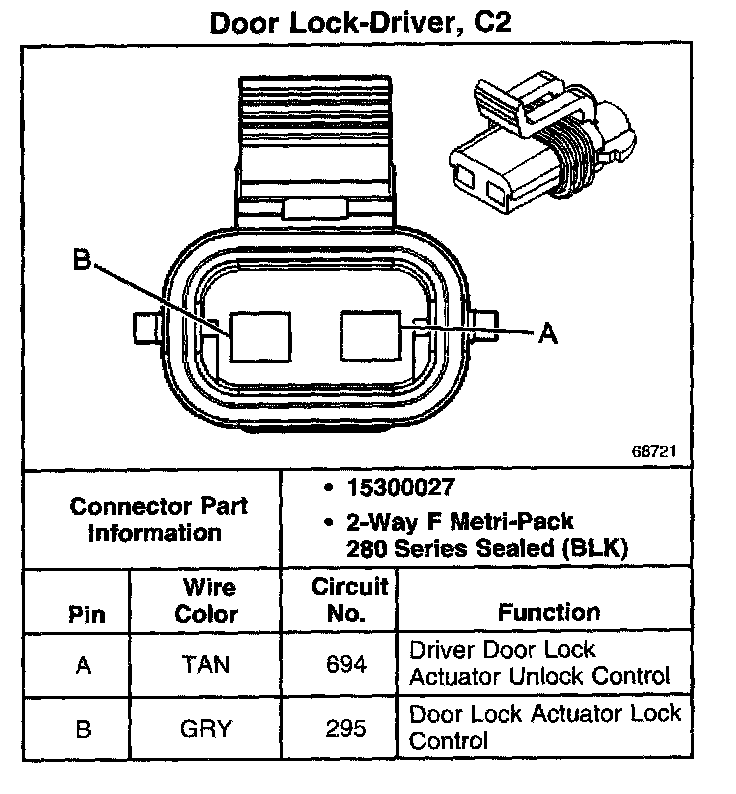

Door Lock-Driver, C2:




Door Lock-Front Passenger, C1:




Door Lock-LR, C1:

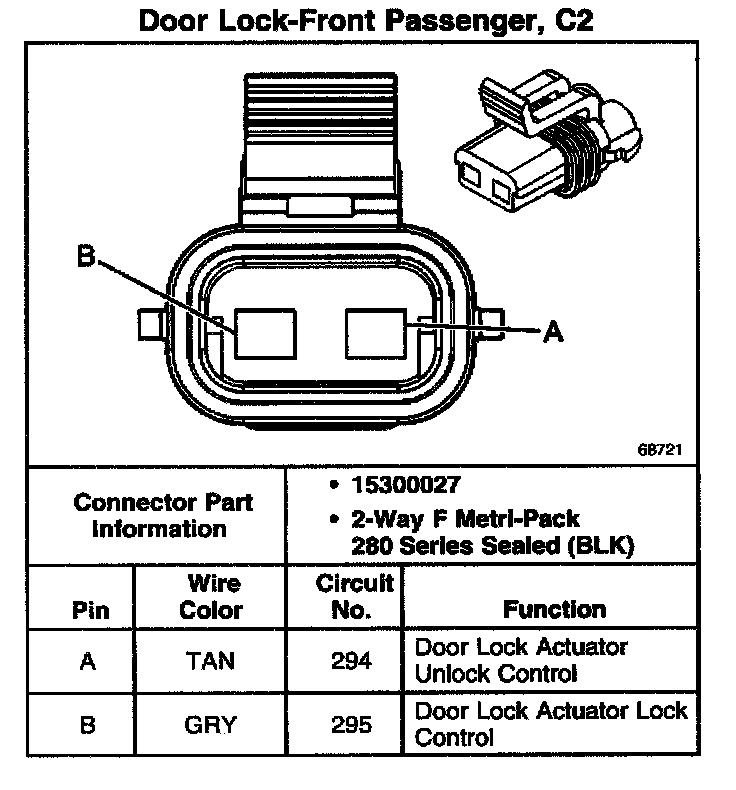

Door Lock-Front Passenger, C2:

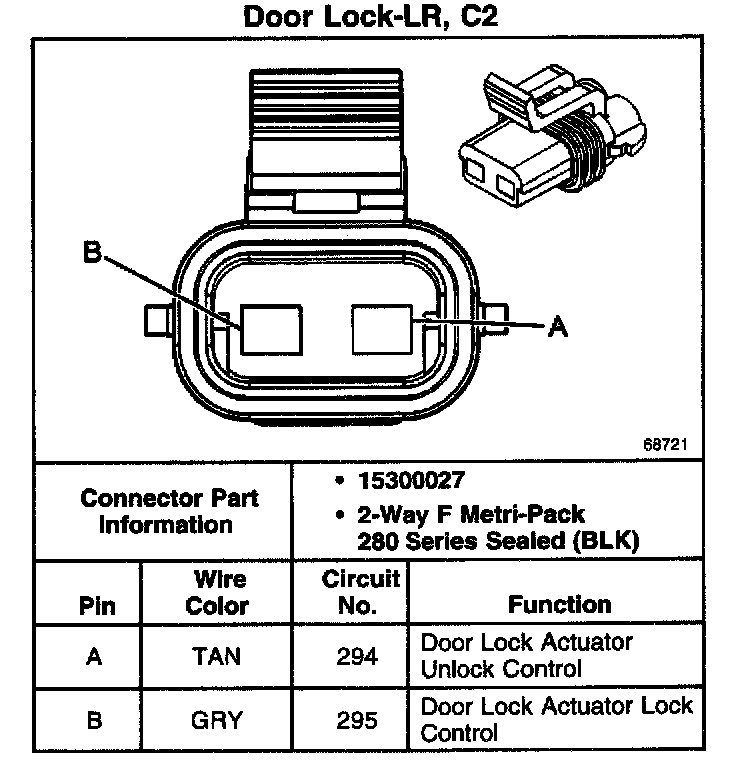

Door Lock-LR, C2:

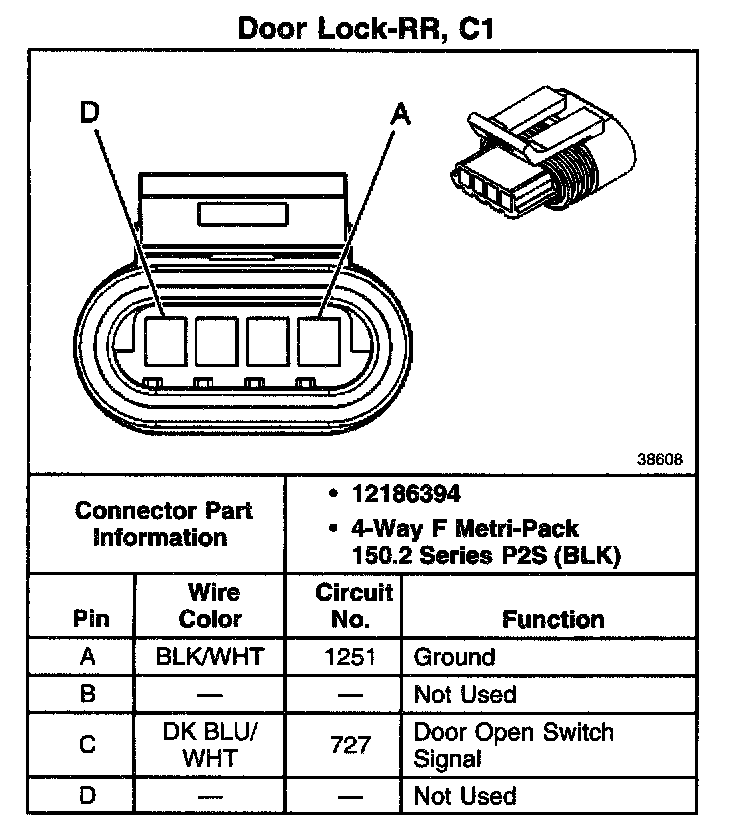

Door Lock-RR, C1:

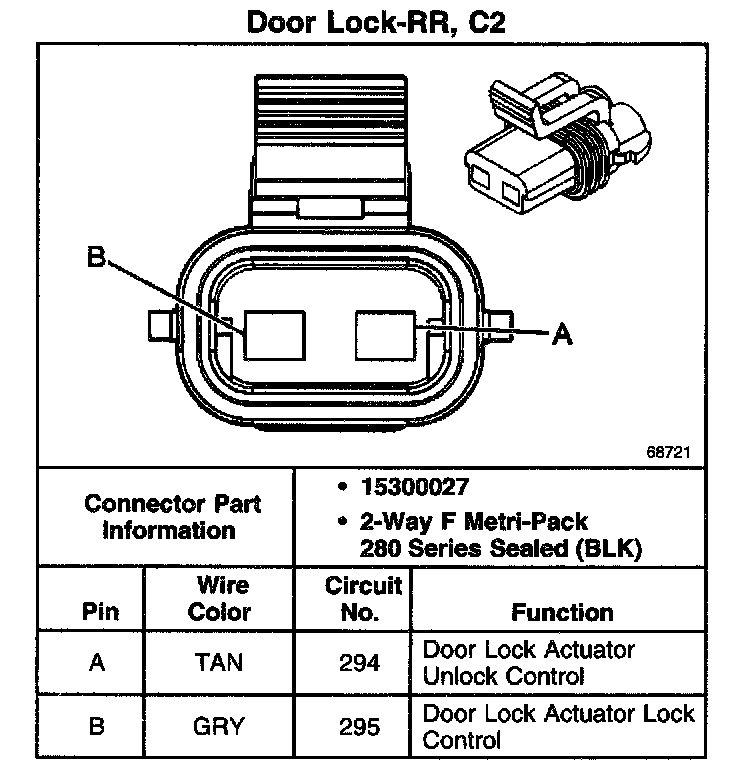

Door Lock-RR, C2:
