Power Window Motor
Power Window Motor

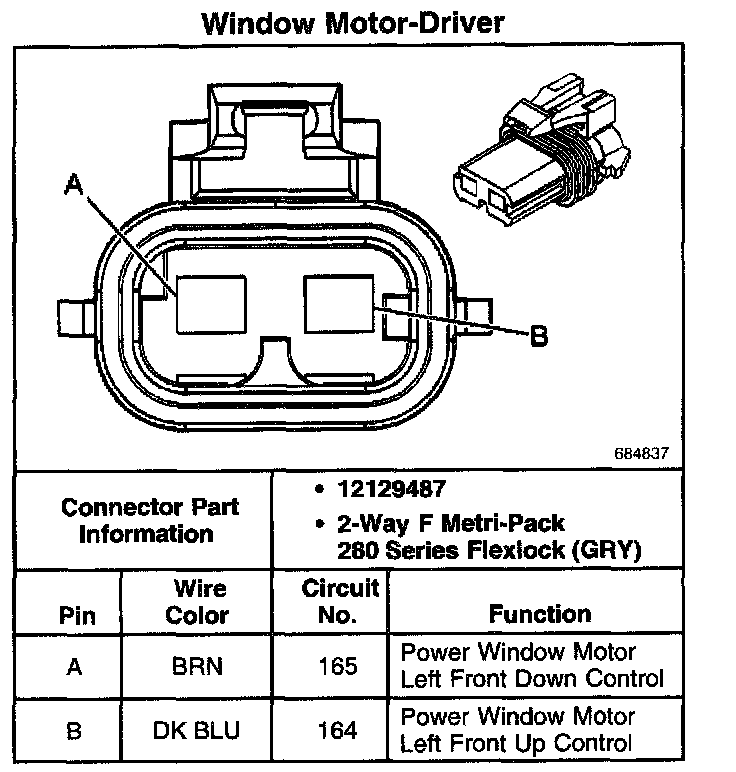

Window Motor-Driver:
Window Motor-Front Passenger:
Window Motor-LR:

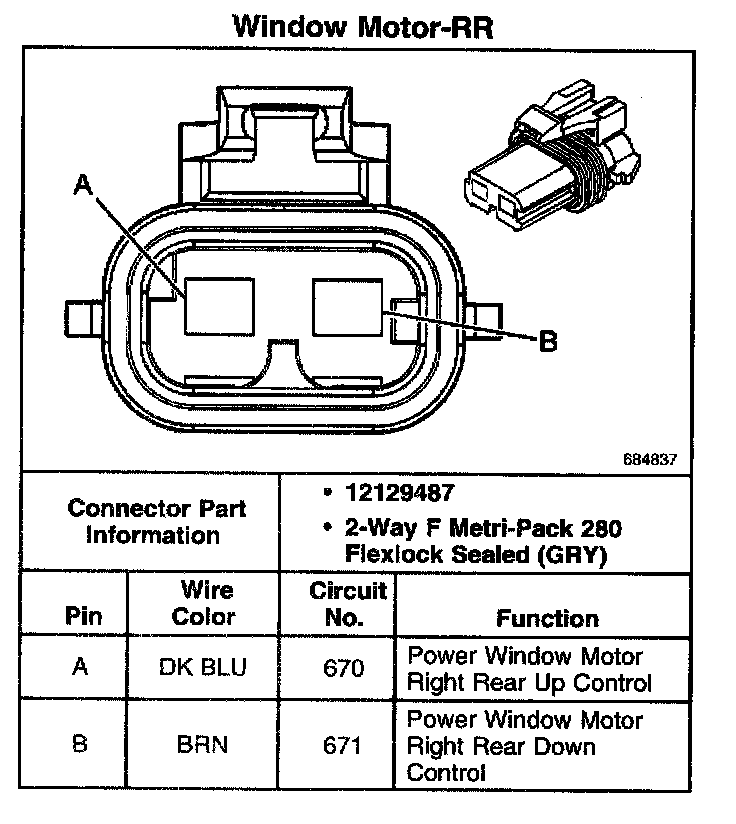

Window Motor-RR:
