Seat Temperature Element
Seat Temperature Element
Heated Seat Element-Driver Back:

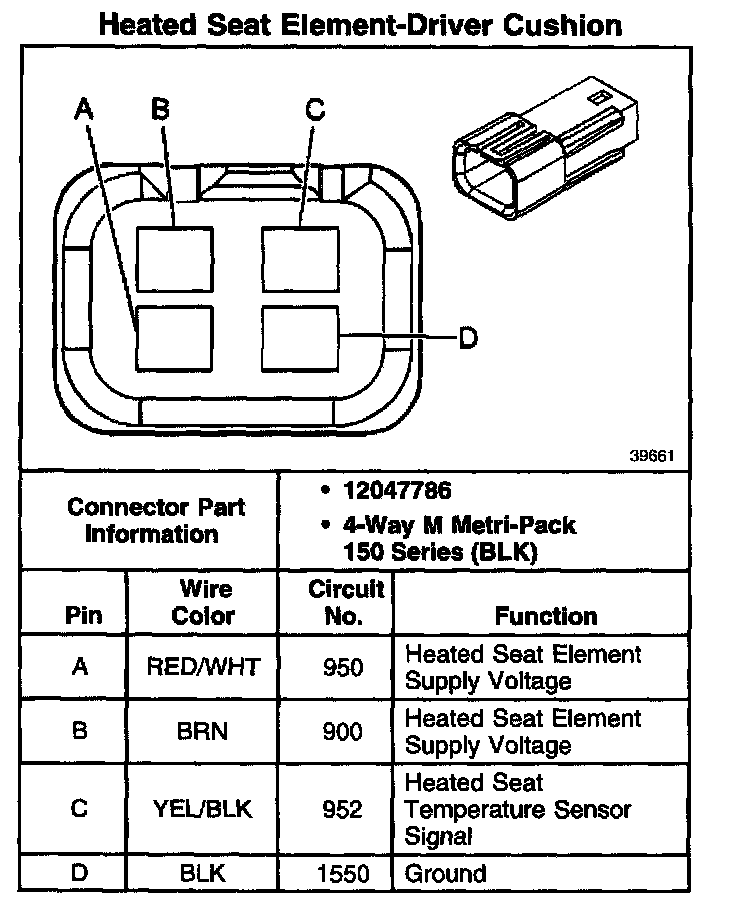

Heated Seat Element-Driver Cushion:

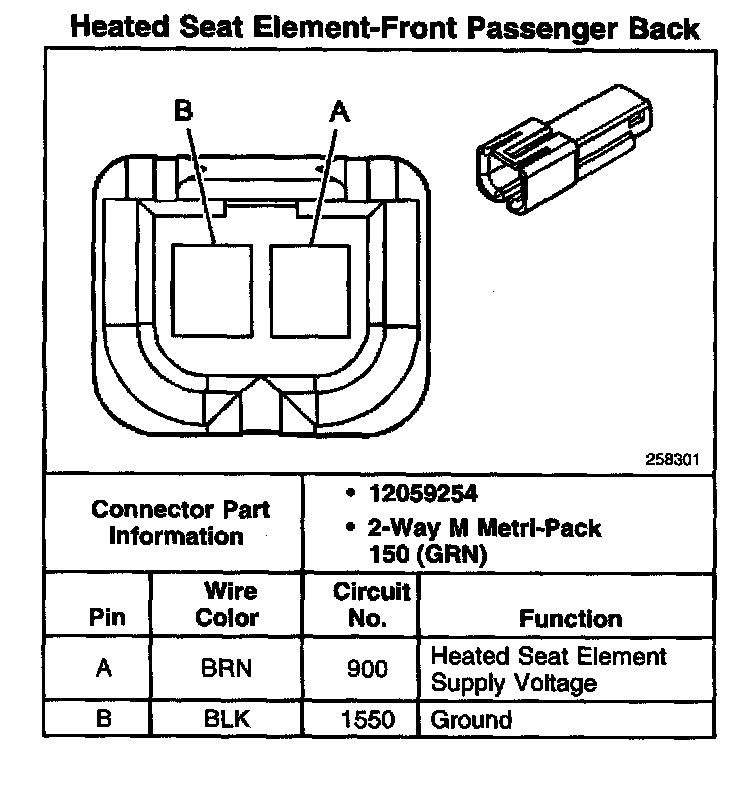

Heated Seat Element-Front Passenger Back:

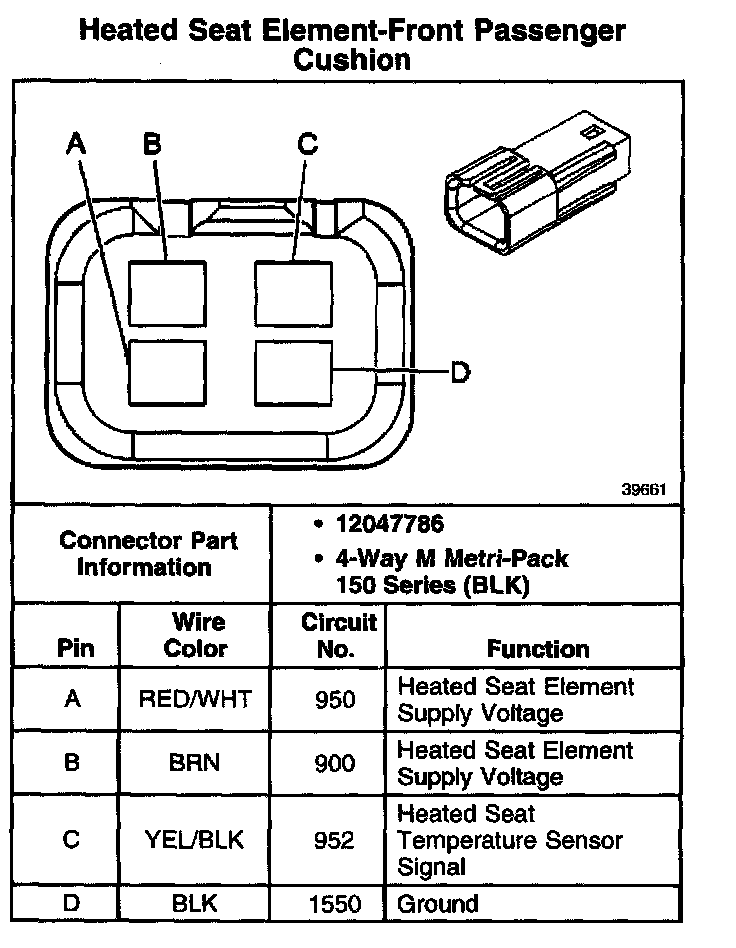

Heated Seat Element-Front Passenger Cushion:
