Seat Temperature Relay
Seat Temperature Relay

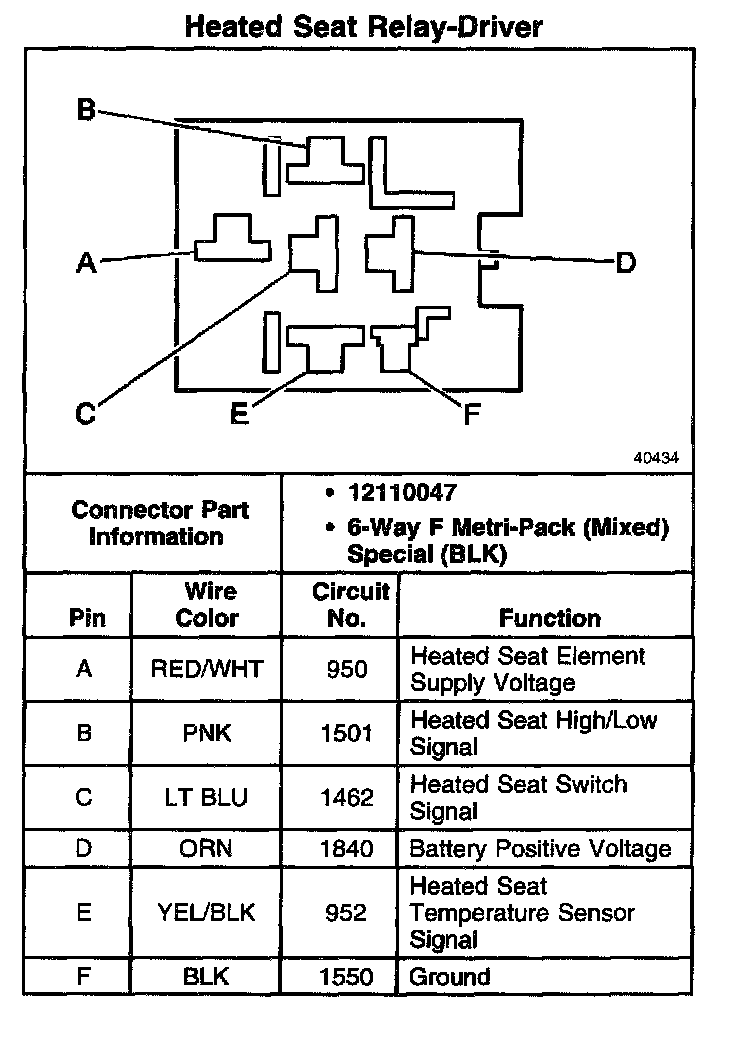

Heated Seat Relay-Driver:
Heated Seat Relay-Front Passenger:
