Home >> Chevrolet >> 2002 >> Monte Carlo V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Harness >> Body Rear End

Body Rear End

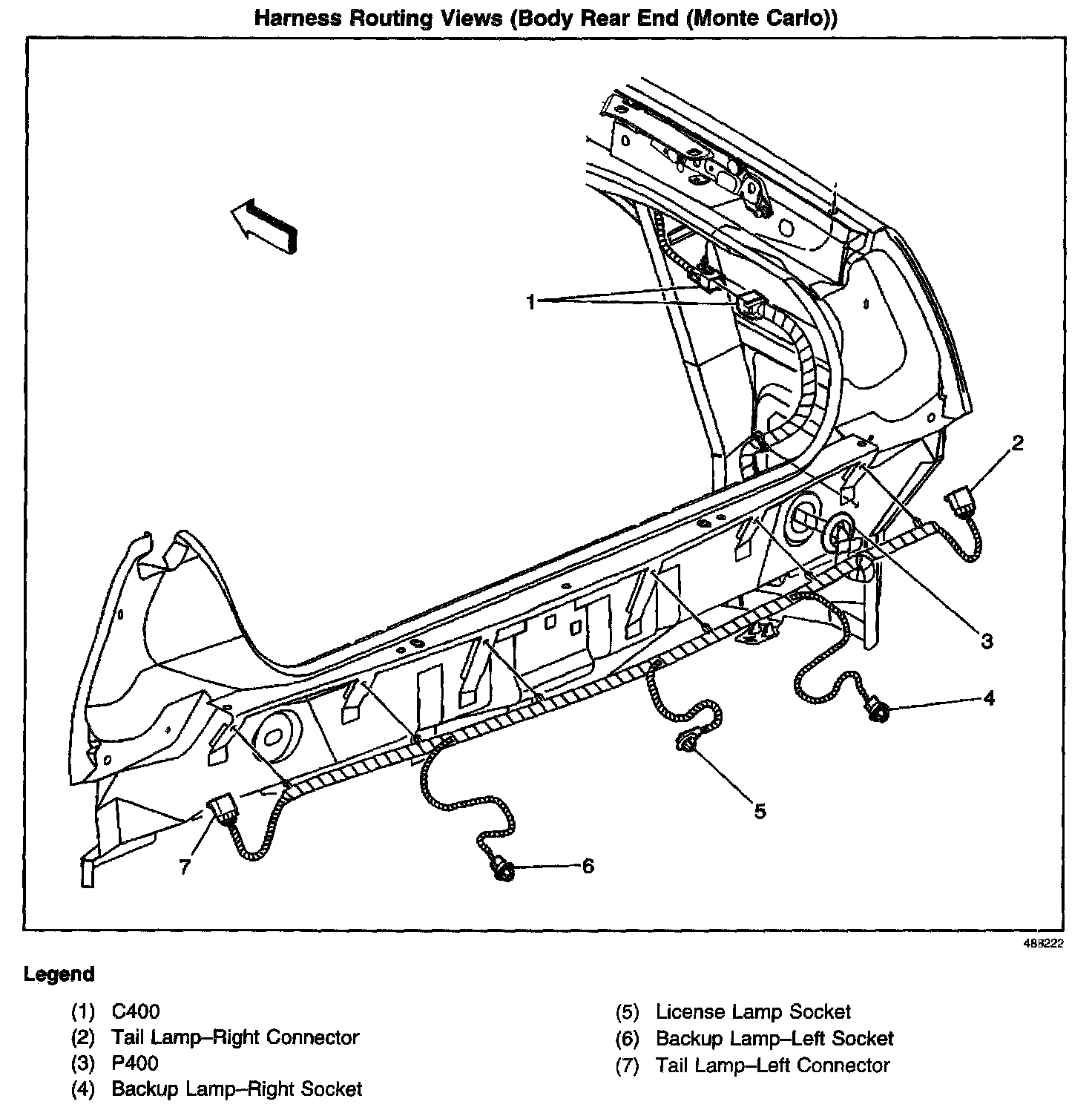

Harness Routing Views (Body Rear End (Monte Carlo)):
