Lower Center of Instrument Panel (W/O 9C1/9C3/9C6)

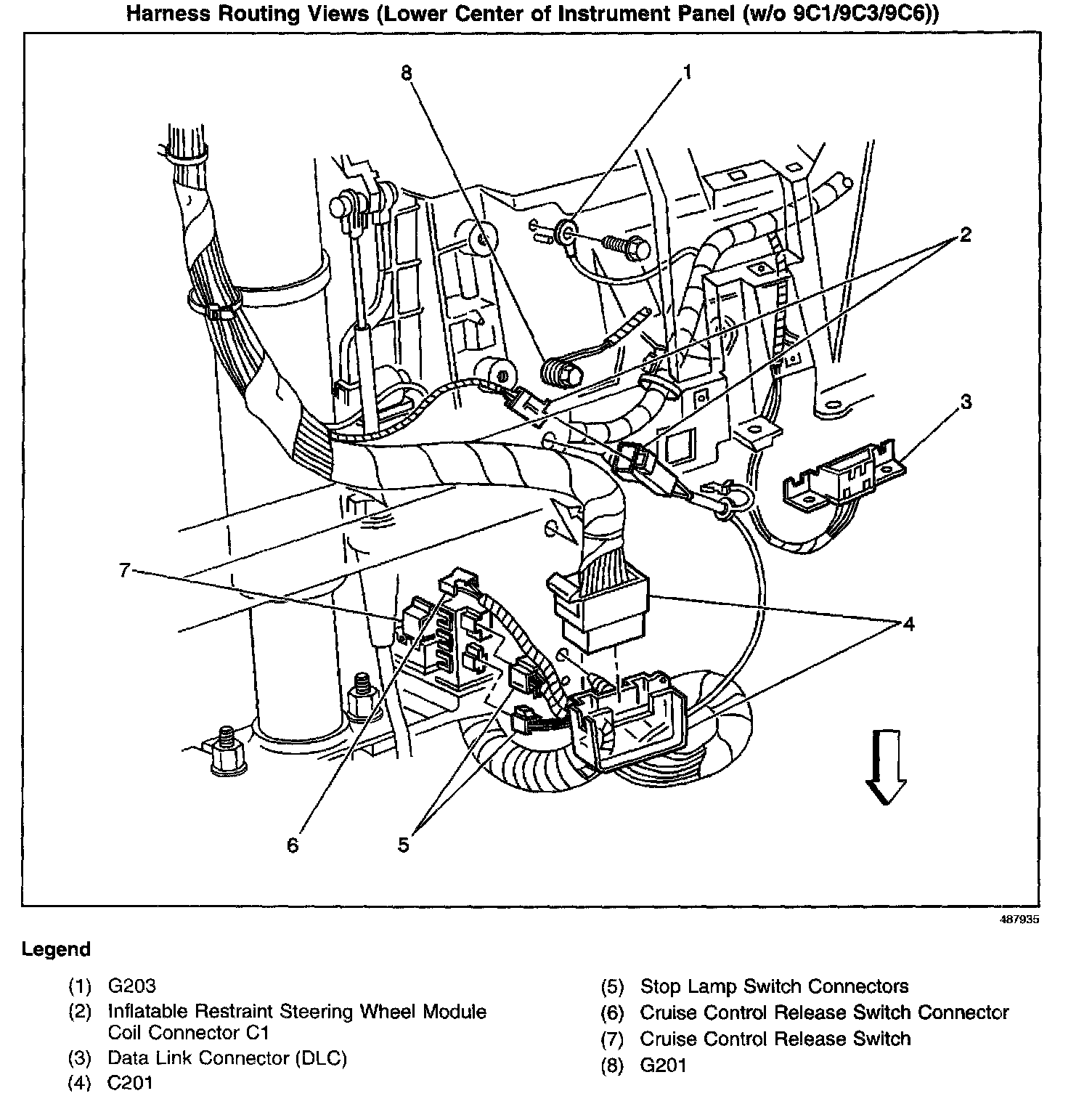

Harness Routing Views (Lower Center Of Instrument Panel (W/O 9C1/9C3/9C6)):

"For a description of the RPO Code(s) shown in this article or any of the images therein, refer to the RPO Code List found at Vehicle/Application ID". RPO Codes
