Hazard Warning Lamps: Service and Repair

REMOVAL PROCEDURE

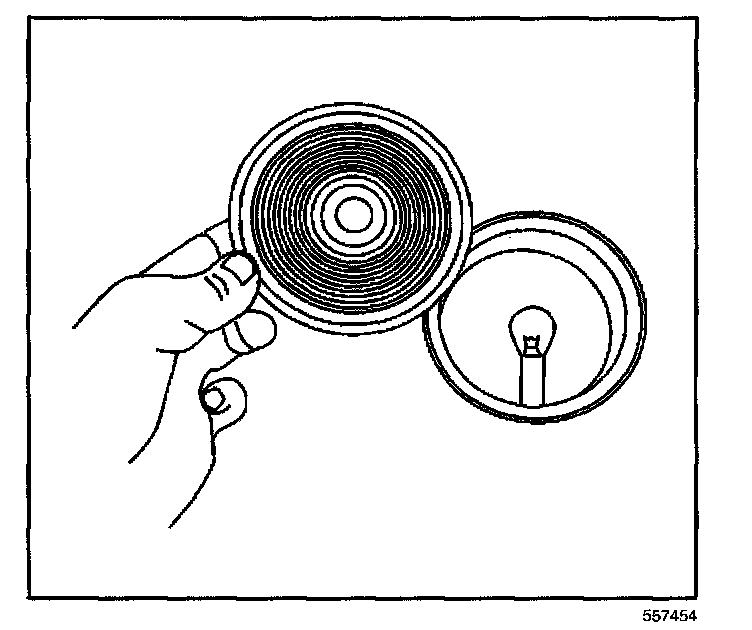

1. Remove the lens from the rear window panel lamp.
Inserted a small coin under the rear window panel lamp lens and then twist the coin.

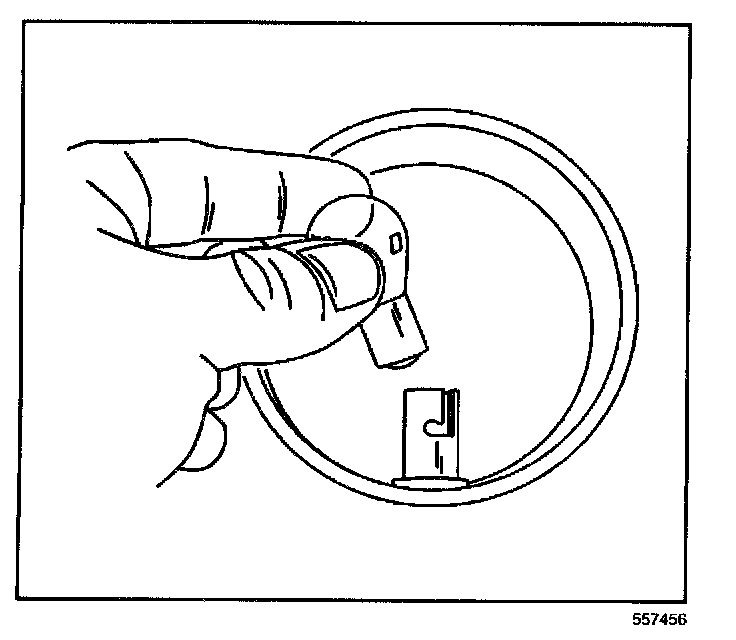

2. Remove the bulb from the rear window panel lamp socket.

INSTALLATION PROCEDURE




1. Install the bulb to the rear window panel lamp socket.




2. Install the lens to the rear window panel lamp, pressing into place until fully seated.

"For a description of the RPO Code(s) shown in this article or any of the images therein, refer to the RPO Code List found at Vehicle/Application ID". RPO Codes
