Washer Solvent Container Filler Neck Replacement

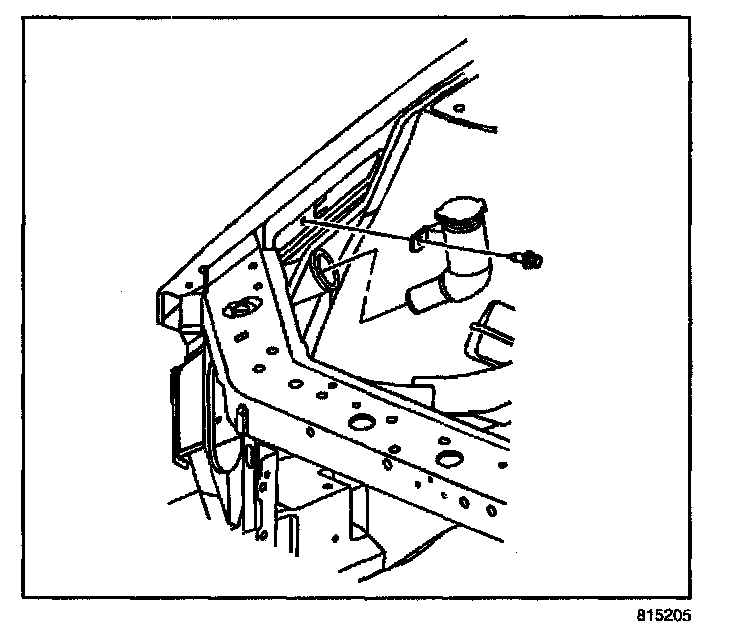

REMOVAL PROCEDURE




1. Open the Hood.
2. Remove the washer solvent container filler neck push-in retainer.
3. Remove the washer solvent container filler neck from the washer solvent container.

INSTALLATION PROCEDURE




1. Position the washer solvent container filler neck to the washer solvent container, pressing in until fully seated.
2. Install the washer solvent container filter neck push-in retainer.
3. Close the hood.
