Mirror Replacement - Manual

Mirror Replacement - Manual

Removal Procedure

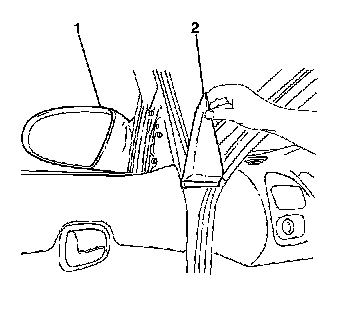

1. Unclip and remove the inner mirror garnish (2) from the door.




2. Remove the following components from the door:

* The 3 nuts
* The outside rearview mirror (1)




Installation Procedure






Notice: Refer to Fastener Notice in Cautions and Notices.

1. Install the outside rearview mirror (1) to the door. Secure the mirror with the 3 nuts.

Tighten the outside rearview mirror nuts to 15 N.m (11 lb ft).





2. Install the inner mirror garnish (2) to the door.
