Seat Adjuster Track Cover Replacement - Front (Outboard)

Seat Adjuster Track Cover Replacement - Front (Outboard)

Removal Procedure

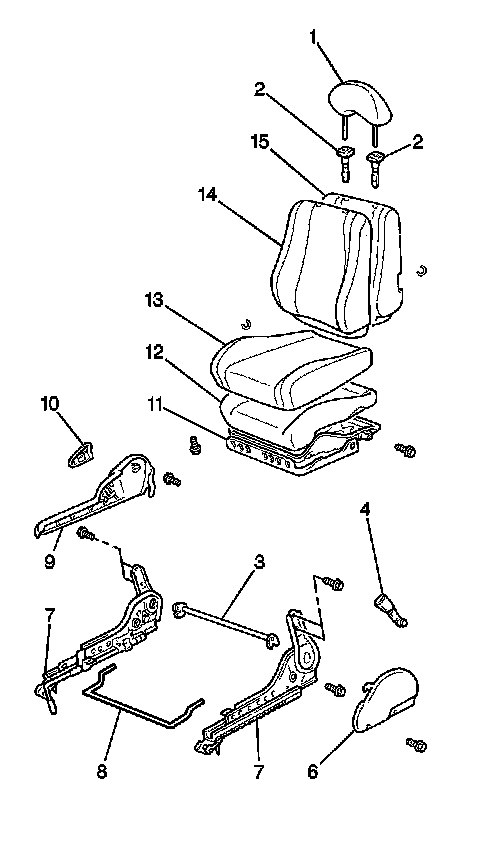

1. Remove the recliner handle (10) from the front seat outboard adjuster (7) by disengaging the retaining tab.
2. Gently pry the outboard adjuster finish cover (9) from the front seat assembly.



Installation Procedure





1. Install the outboard adjuster finish cover (9) to the front seat assembly.
2. Install the recliner handle (10) to the front seat outboard adjuster (7).
