Seat Replacement - Child

Seat Replacement - Child

Removal Procedure





1. Remove the child seat cushion. Refer to Child Seat Pad Replacement (Child Seat Pad Replacement) .

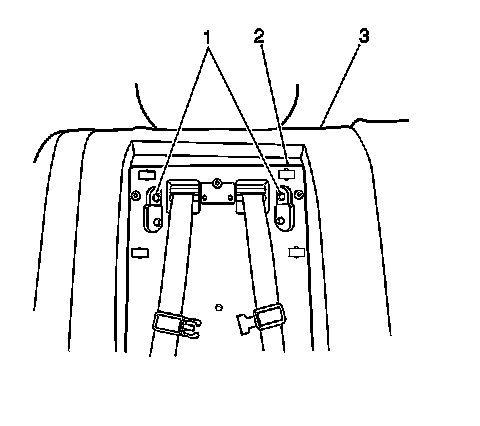

2. Remove the 2 upper bolts (1) which secure the child seat (2) to the rear seat back cushion (3).




3. Remove the 2 lower bolts (1) which secure the child seat (2) to the rear seat back cushion.
4. Remove the child seat (2) from the vehicle.



Installation Procedure





1. Install the child seat to the rear seat back cushion. Secure the child seat (2) with the 2 lower bolts (1).





Notice: Refer to Fastener Notice in Cautions and Notices.

2. Install the 2 upper bolts (1) which secure the child seat (2) to the seat back cushion (3).

Tighten the 4 child seat bolts to 18 N.m (13 lb ft).

3. Install the child seat cushion. Refer to Child Seat Pad Replacement (Child Seat Pad Replacement) .
