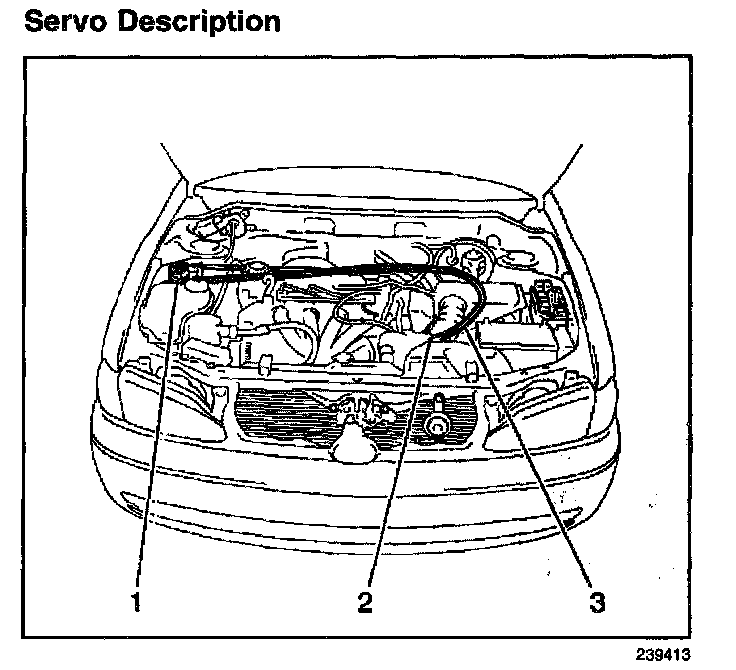

Servo Description

The servo (1) is mounted to the right strut tower and consists of a DC servo motor, a worm gear, a throttle angle sensor (potentiometer) and a magnetic clutch. Acting in response to signals from the cruise control module, the servo's DC servo motor actuates the accelerator cable to increase and decrease throttle angle.
