A - Z Master Electrical Component List

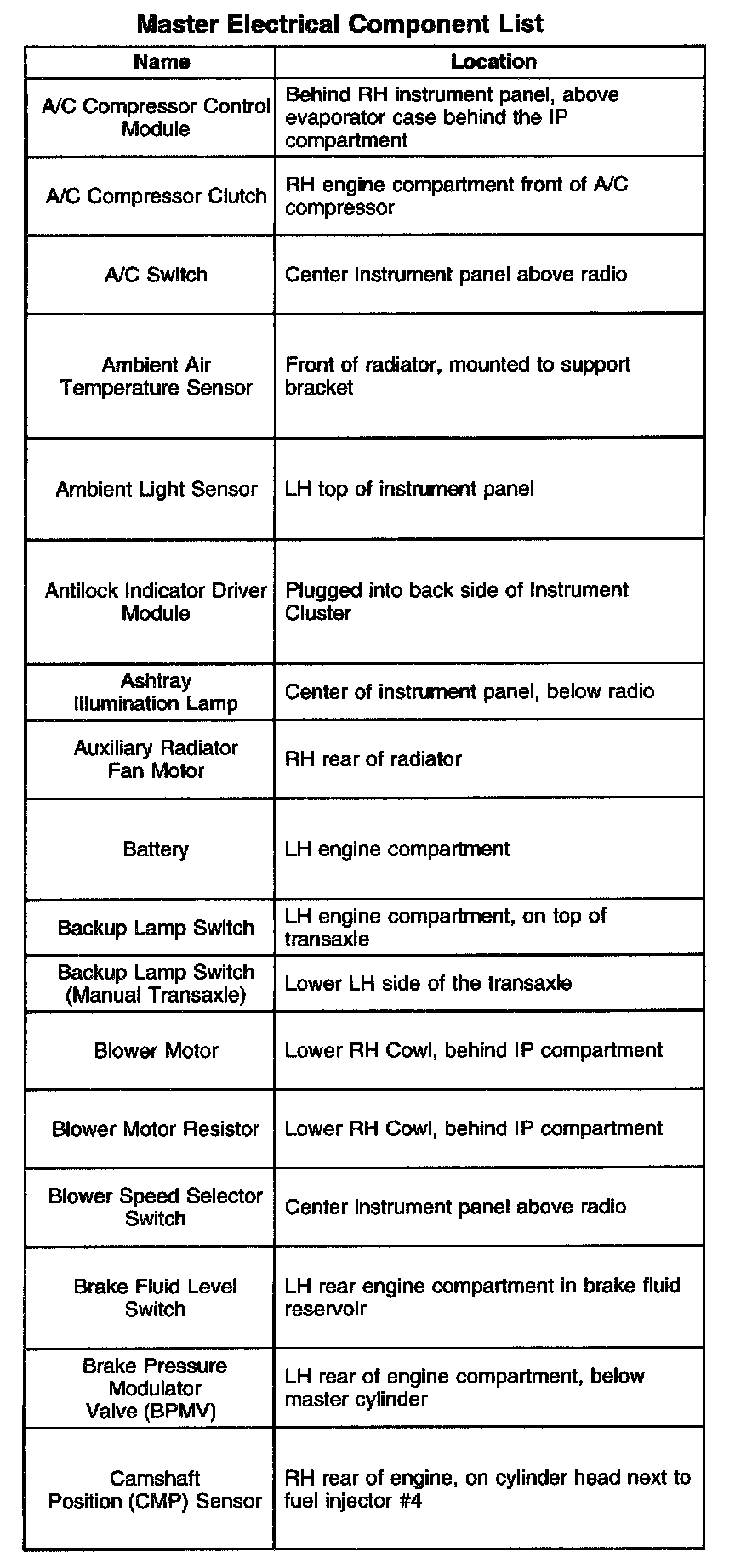

A/C Compressor Control Module - Camshaft Position (CMP) Sensor:

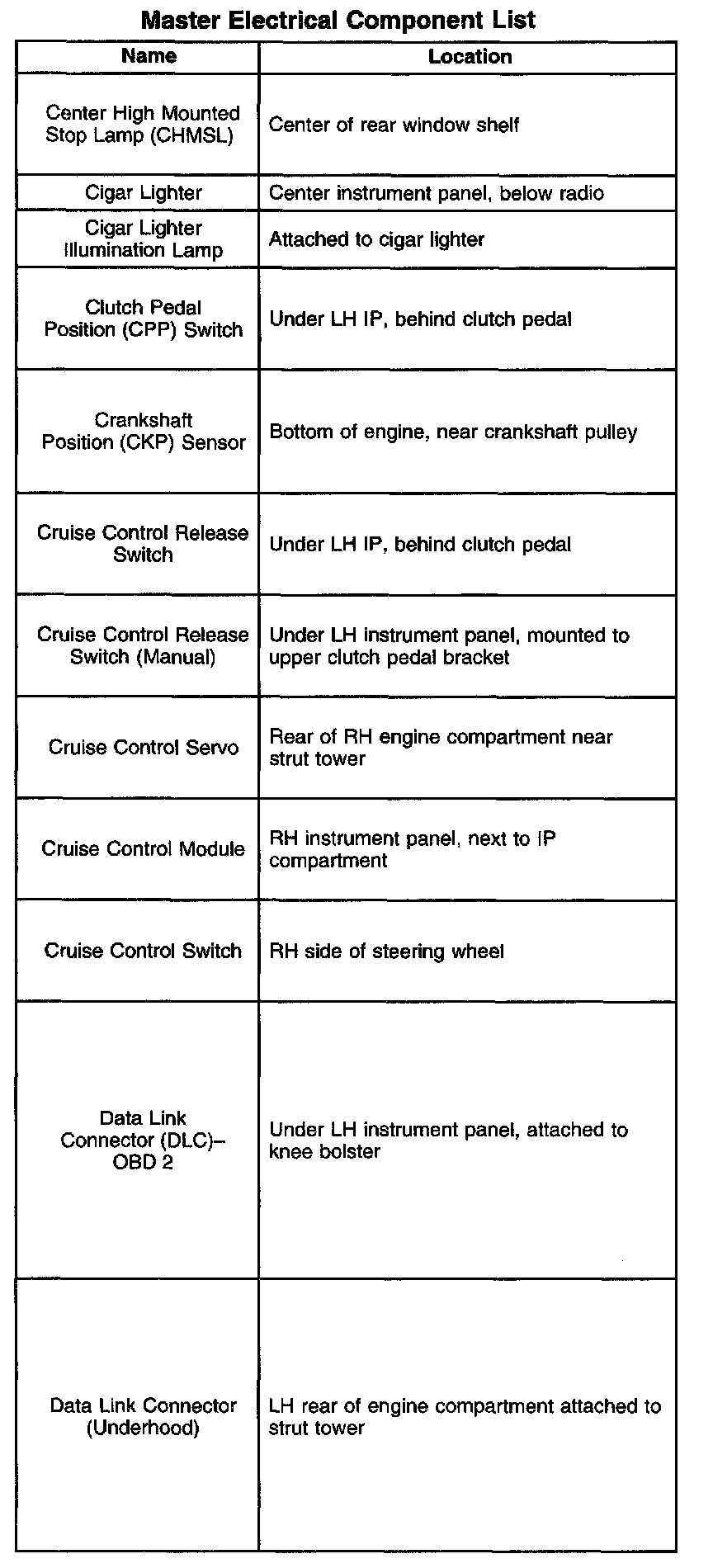

Center High Mounted Stop Lamp (CHMSL) - Data Link Connector (Underhood):

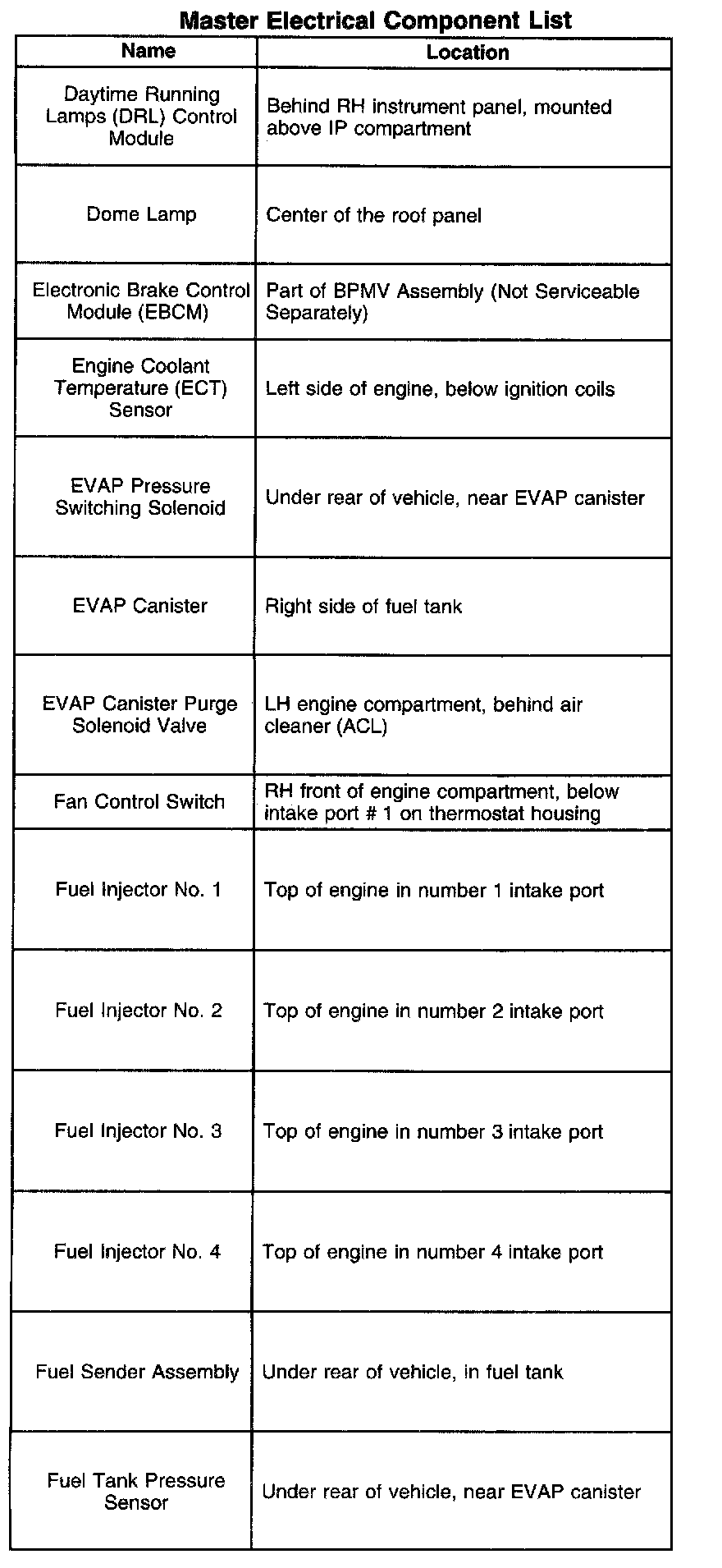

Daytime Running Lamps (DRL) Control Module - Fuel Tank Pressure Sensor:

Fuse And Relay Block 1 - Inflatable Restraint Passenger Seat Module:

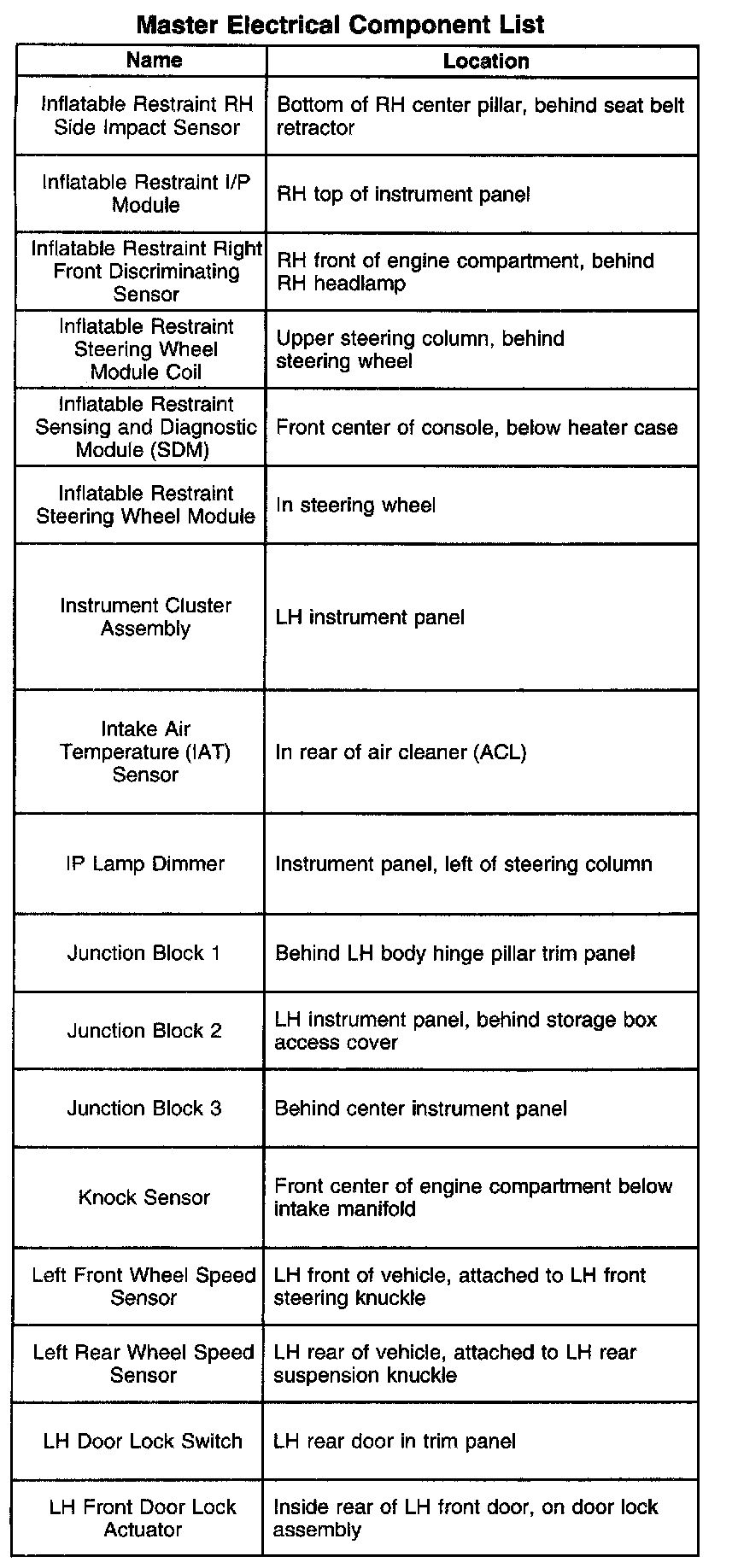

Inflatable Restraint RH Side Impact Sensor - LH Front Door Lock Actuator:

LH Front Door Jamb Switch - Outside Rear View Mirror Switch:

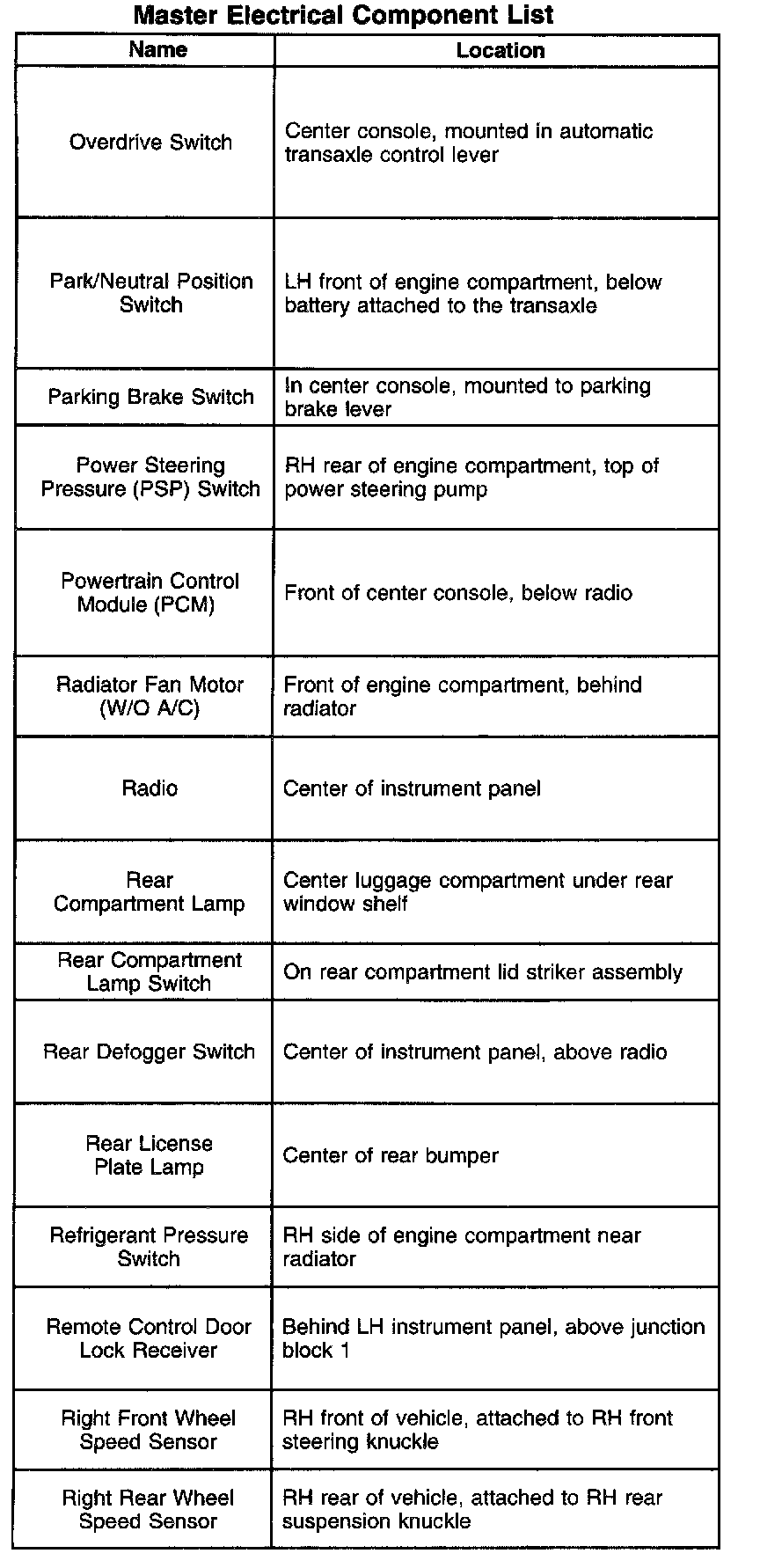

Overdrive Switch - Right Rear Wheel Speed Sensor:

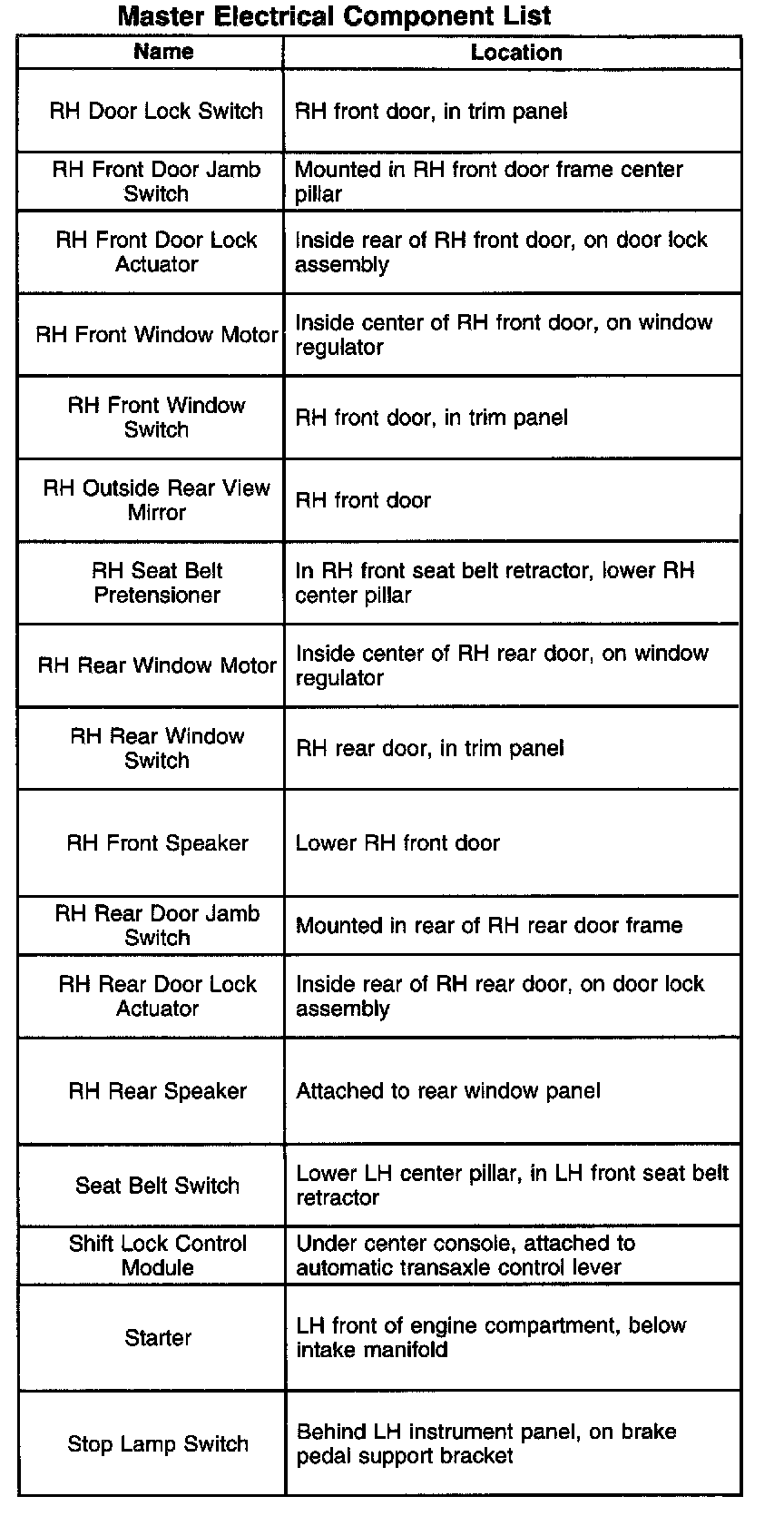

RH Door Lock Switch - Stop Lamp Switch:

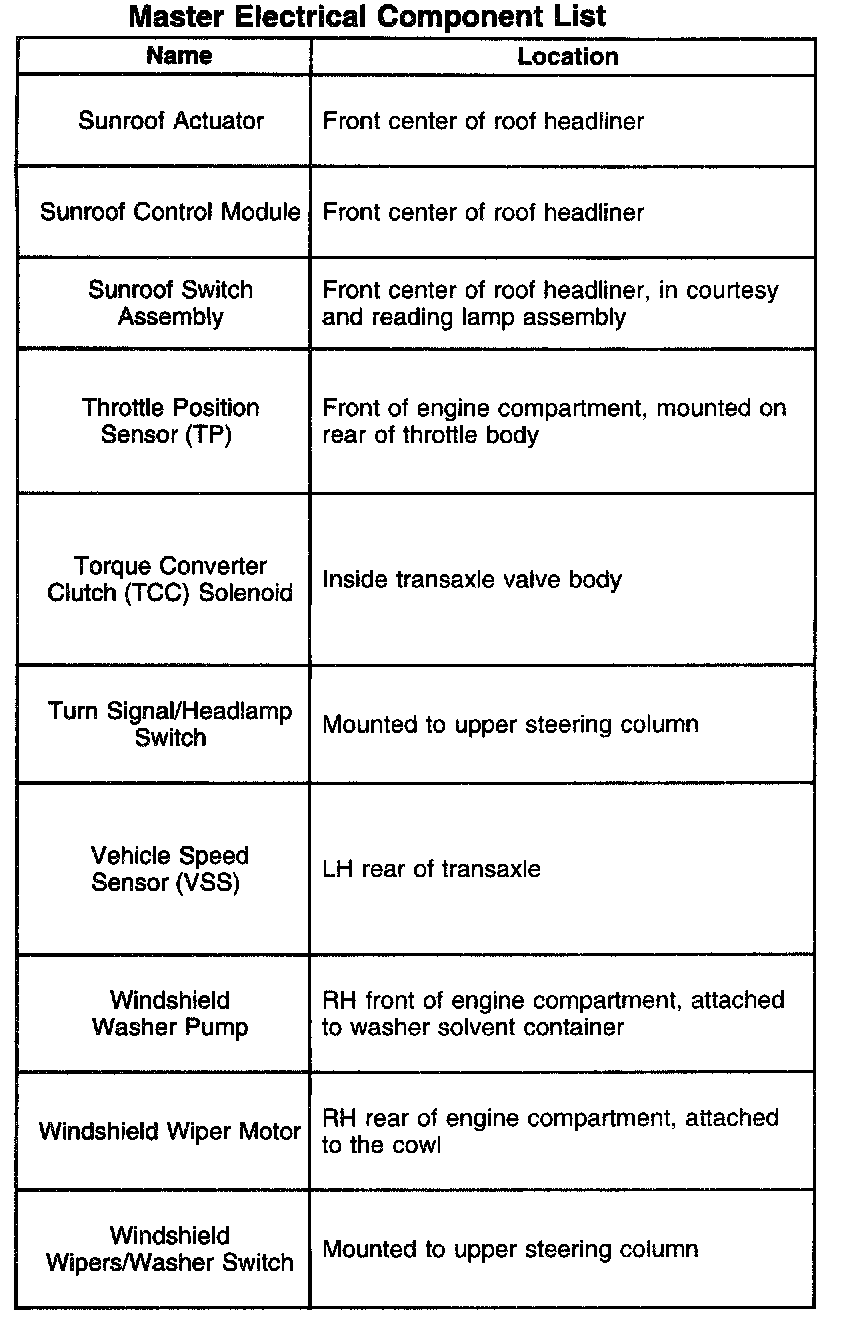

Sunroof Actuator - Windshield Wipers/Washer Switch:
