Home
>>
Chevrolet
>>
2002
>>
Prizm L4-108 1.8L DOHC VIN 8 MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Module HVAC
Control Module HVAC

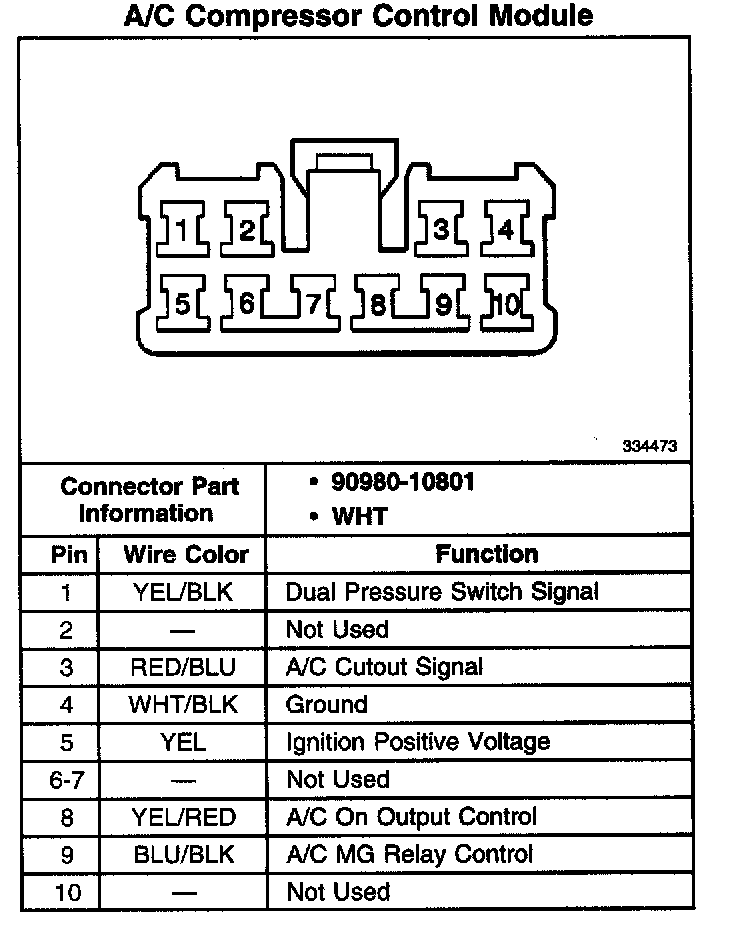

A/C Compressor Control Module - HVAC Systems - Manual:
