Power Window Motor

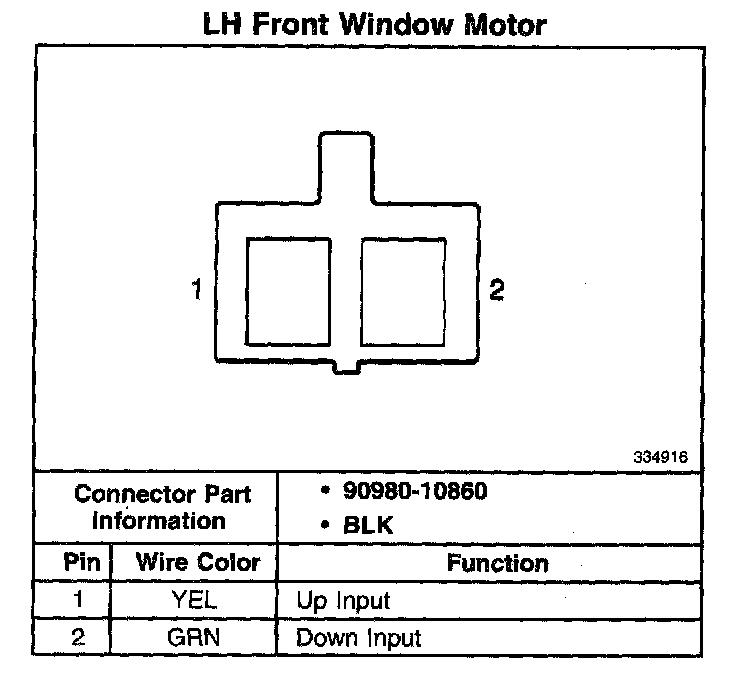

LH Front Window Motor:

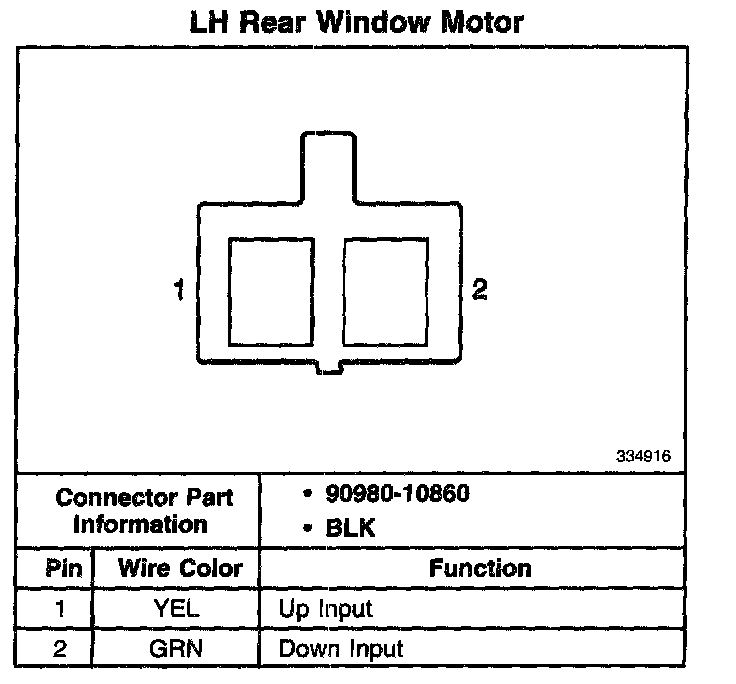

LH Rear Window Motor:

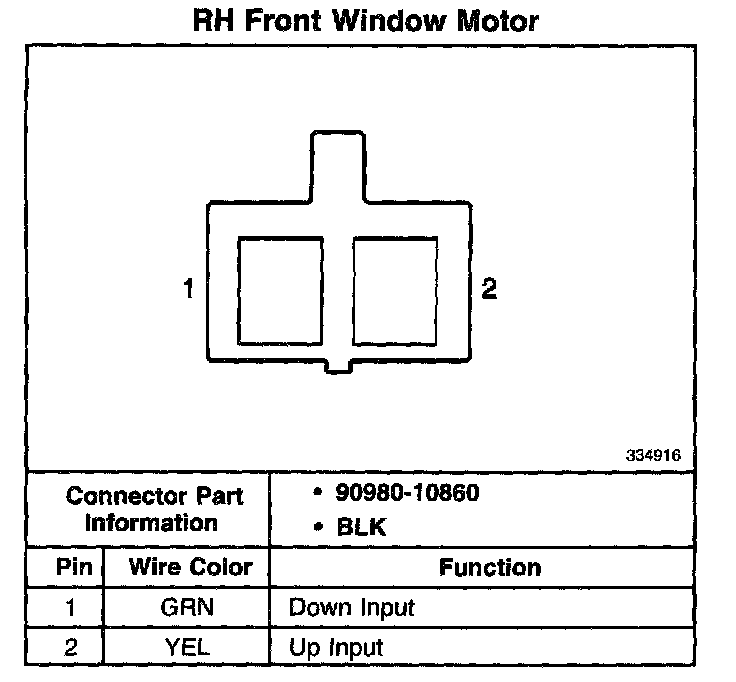

RH Front Window Motor:




RH Rear Window Motor:
