Prizm L4-108 1.8L DOHC VIN 8 MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Engine
>>

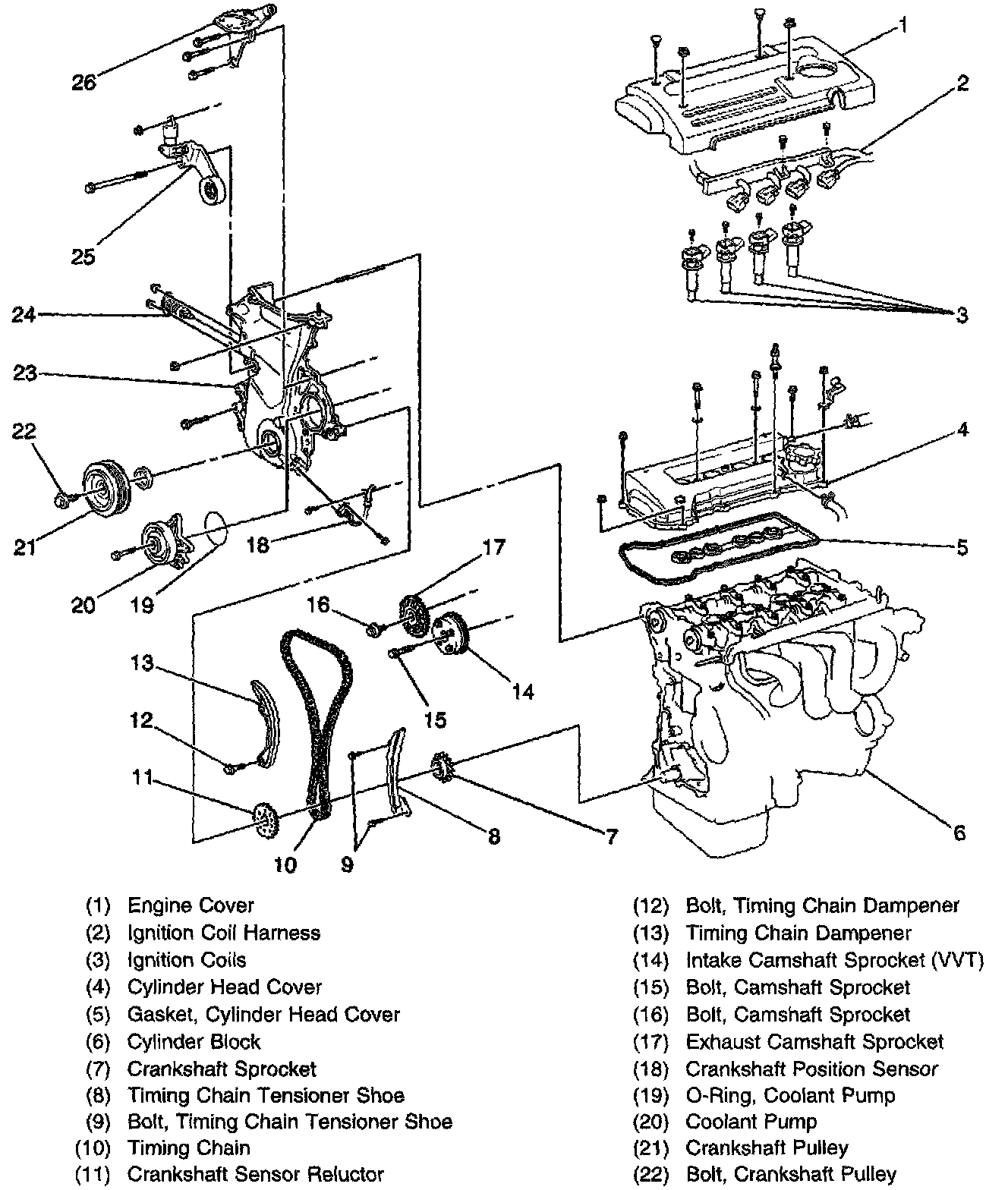

Timing Chain and Housing Components
Timing Chain and Housing Components
Timing Chain
and Housing Components
Part 1 of 2
Part 2 of 2
