Prizm L4-108 1.8L DOHC VIN 8 MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Splices
>>
Splice/Splice Packs By Number
>>
SP600 - SP699
SP600 - SP699

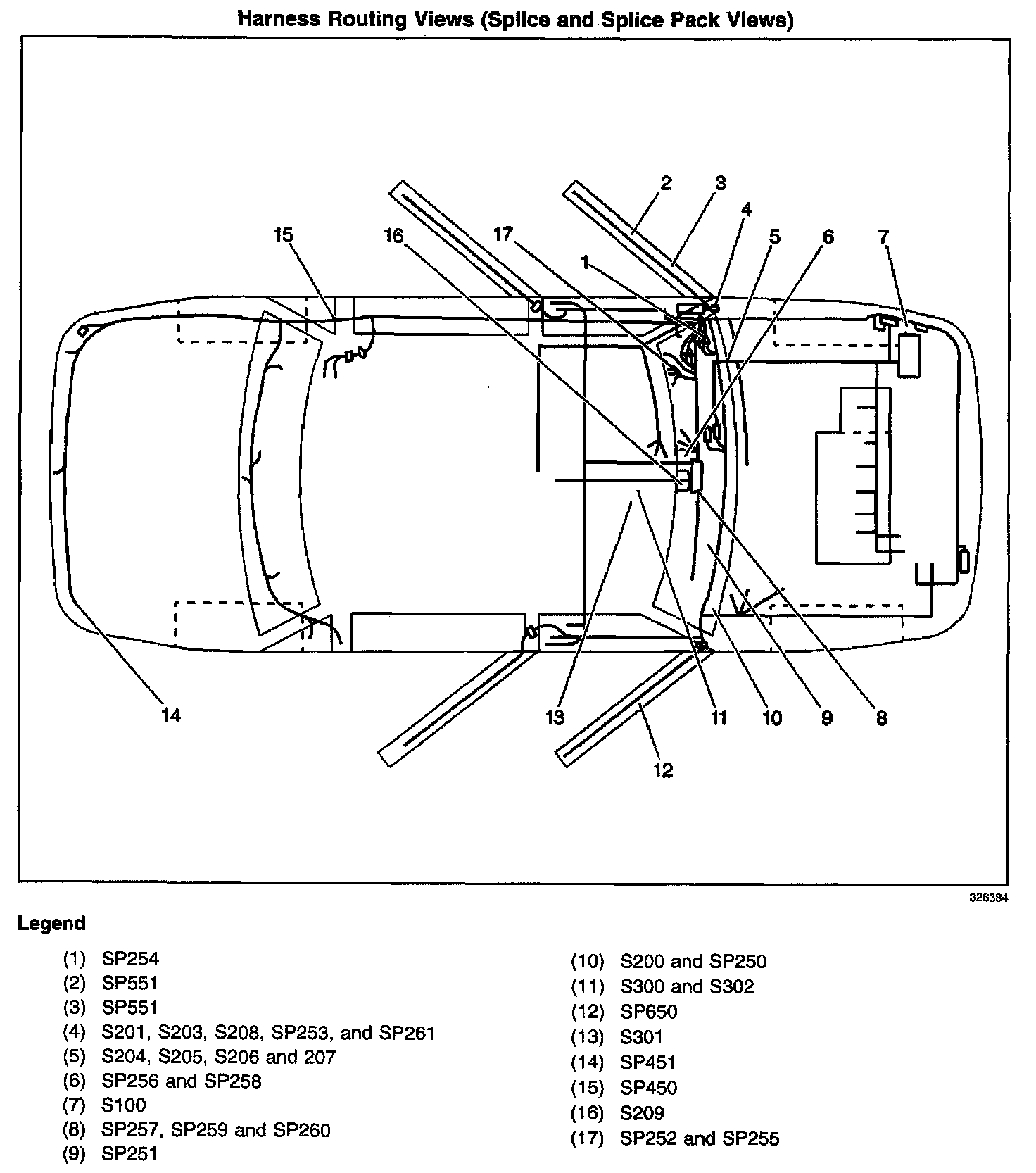

Harness Routing Views (Splice And Splice Pack Views):

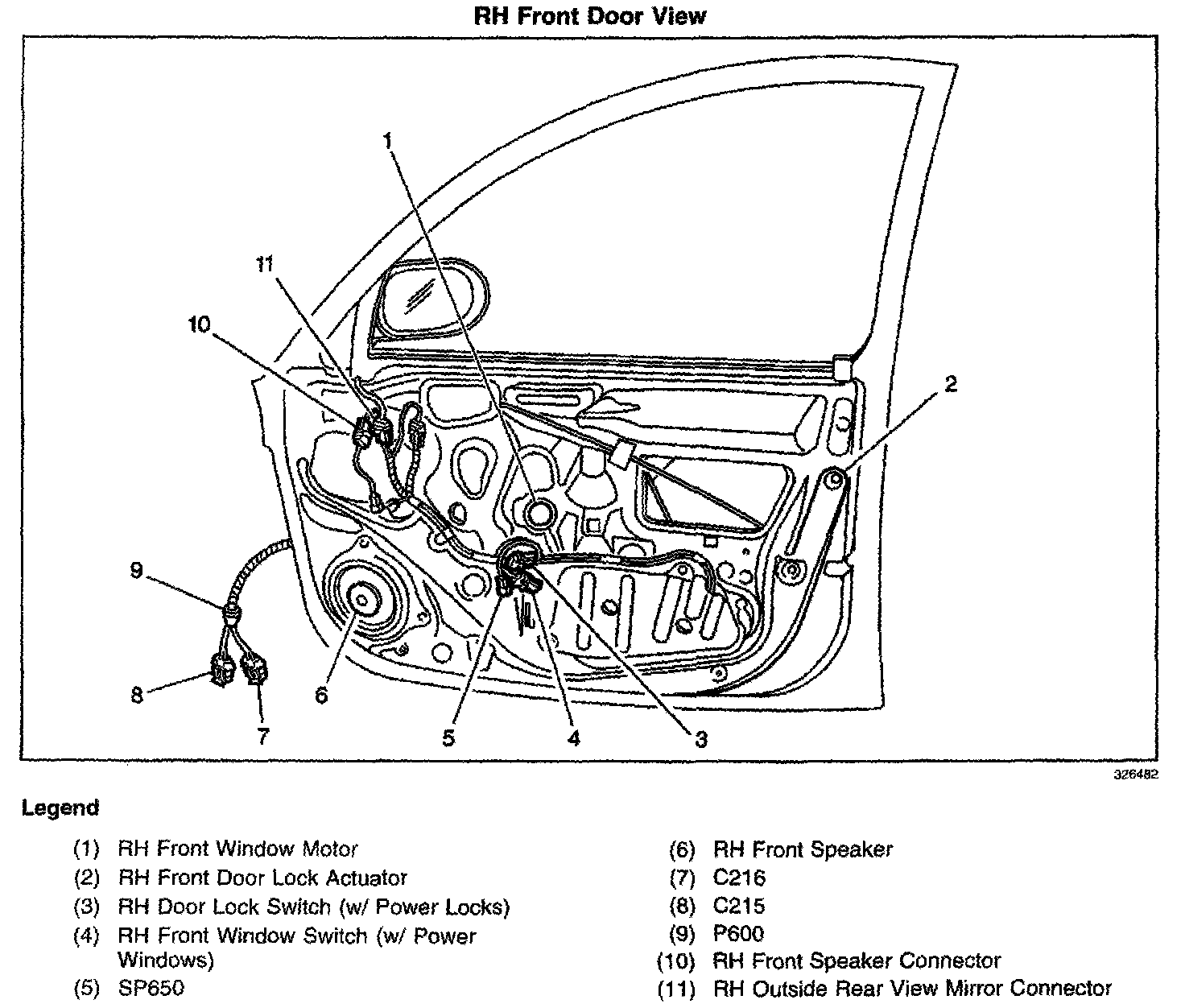

Locations View:
