Blower Motor: Service and Repair

BLOWER MOTOR REPLACEMENT

REMOVAL PROCEDURE




1. Remove the instrument panel (IP) compartment.
2. Disconnect the blower motor electrical connector.

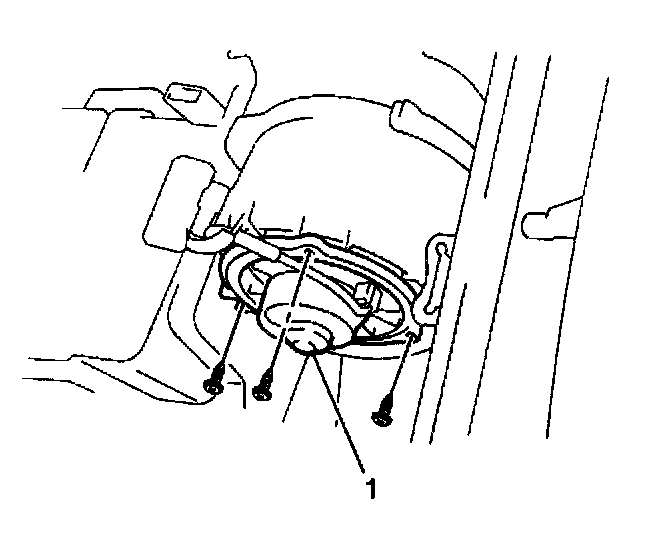

3. Remove the 3 screws and the blower motor and fan (1) from the vehicle.

INSTALLATION PROCEDURE




1. Install the blower motor and fan (1) to the vehicle. Secure with the 3 screws.
2. Connect the blower motor electrical connector.
3. Install the IP compartment.
