Control Module HVAC: Service and Repair

AIR CONDITIONING (A/C) COMPRESSOR CONTROL MODULE REPLACEMENT

REMOVAL PROCEDURE




1. Remove the instrument panel (IP) compartment.
2. Disconnect the A/C compressor control module electrical connector.

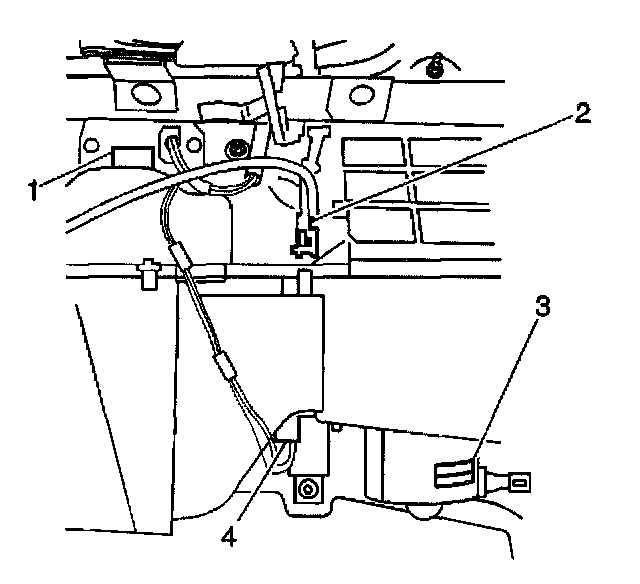

3. Remove the 2 screws and the A/C compressor control module (1).

INSTALLATION PROCEDURE




1. Install the A/C compressor control module (1) and secure with the 2 screws.
2. Connect the A/C compressor control module electrical connector.
3. Install the IP compartment.
