System Diagnosis - VDOT

VDOT Air Conditioning (A/C) System Diagnosis:




Steps 1-7:

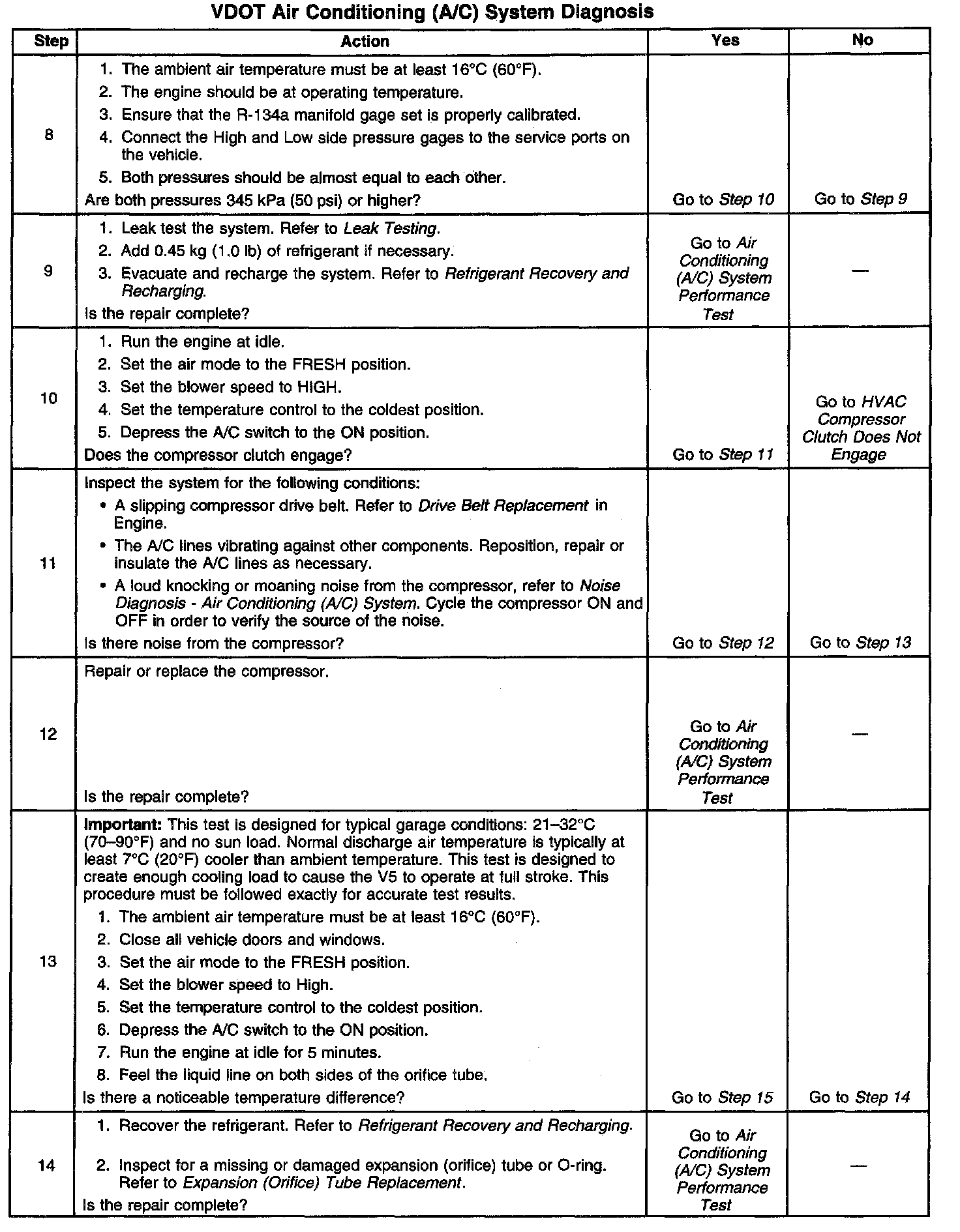

Steps 8-14:

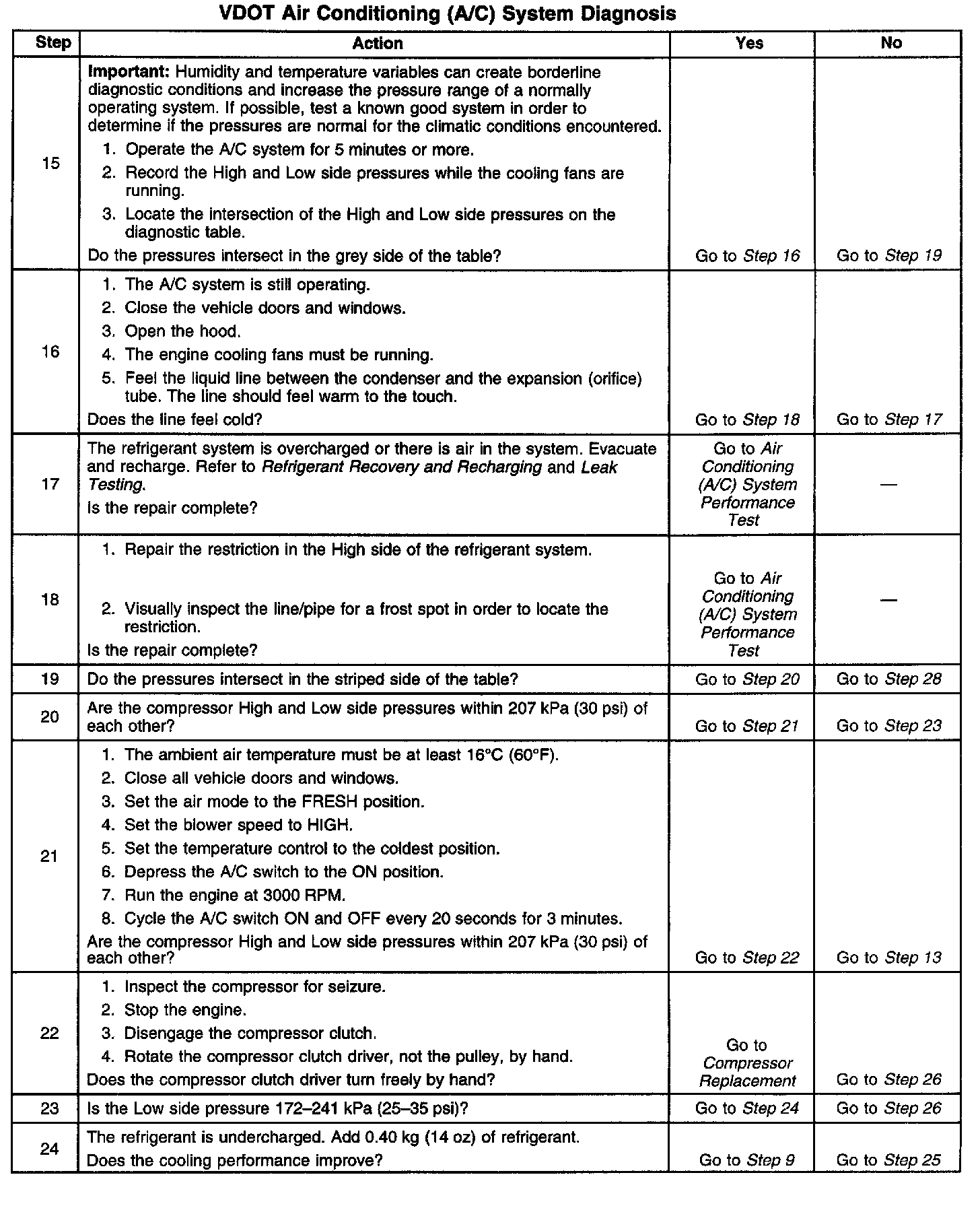

Steps 15-24:

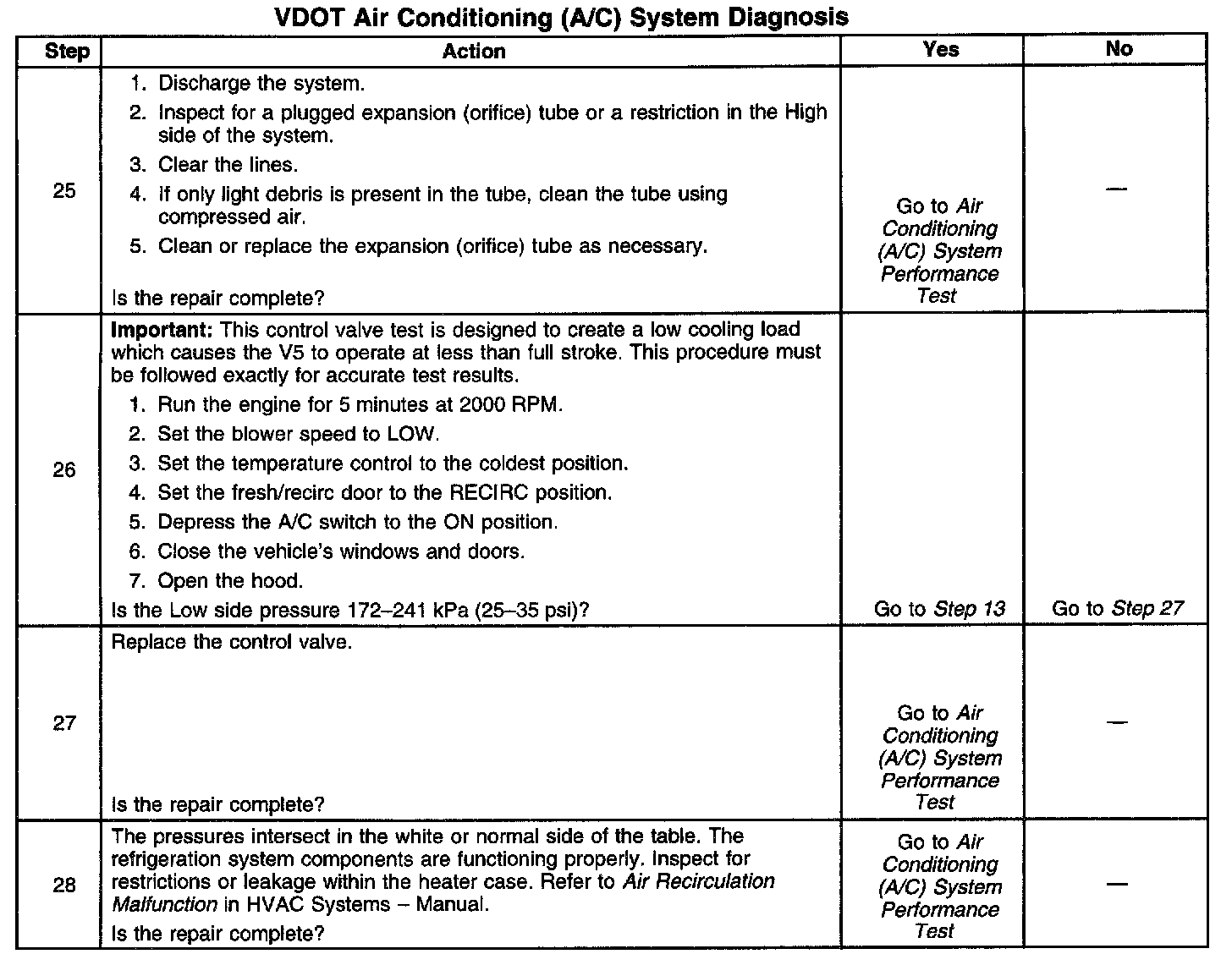

Steps 25-28:
