Symptom Reference Table
Symptom Reference Table

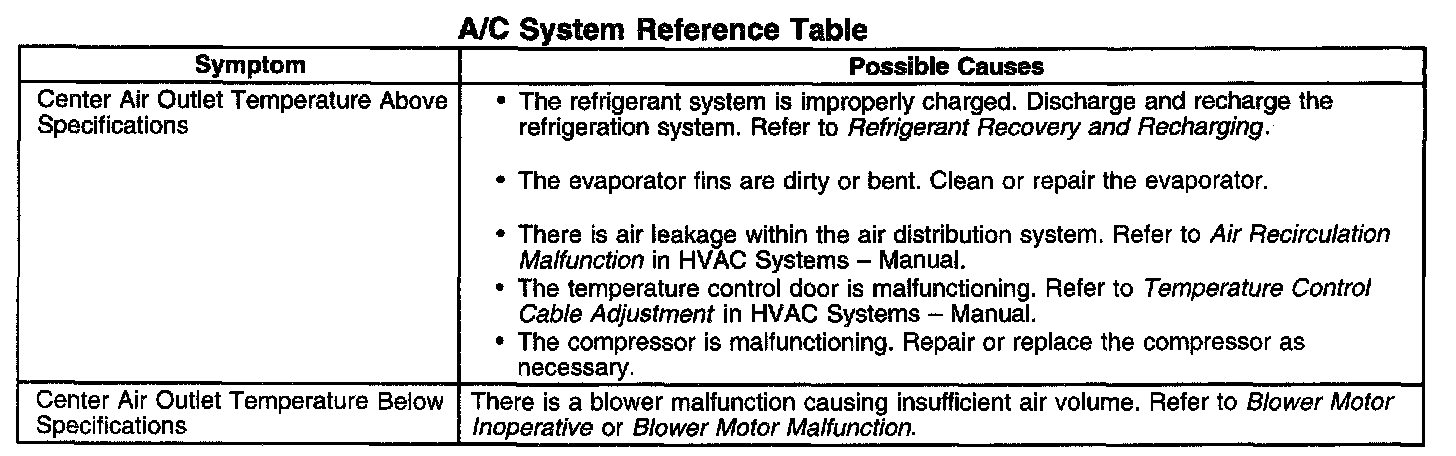

A/C System Reference Table Part 1:
A/C System Reference Table Part 2:
