Fuse Block Access Cover Replacement

REMOVAL PROCEDURE

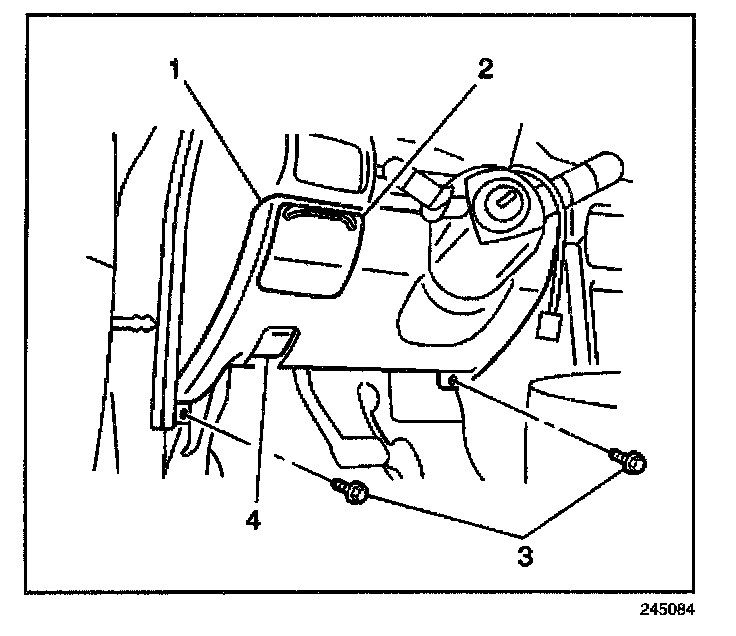

1. Pull the I/P outer storage compartment (2) open until the left and right stoppers disengage.
2. Remove the storage compartment (2) from the I/P drivers knee bolster trim (1).

INSTALLATION PROCEDURE




1. Install the I/P outer storage compartment (2) to the I/P drivers knee bolster trim (1).
2. Close the storage compartment (2).
