Instrument Panel (IP) - Air Deflector/Louver - Center

REMOVAL PROCEDURE

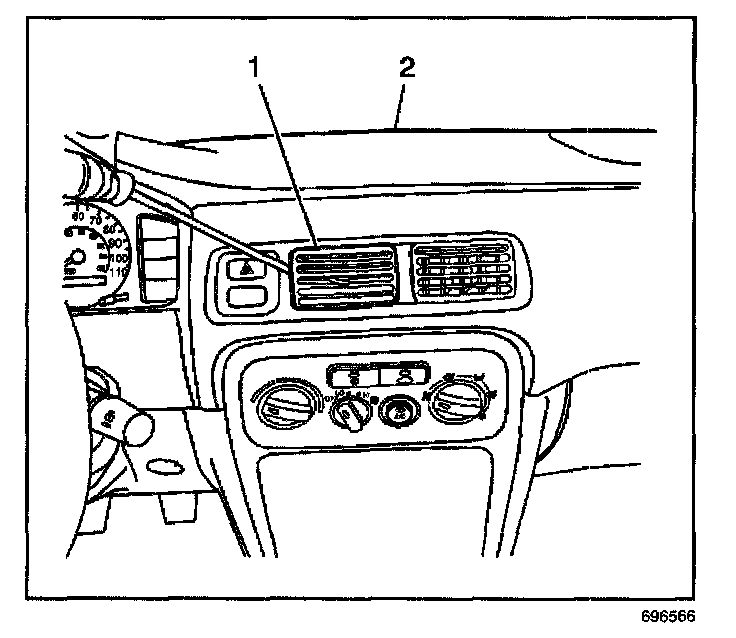

1. Using a taped flat bladed tool, gently pry and release the tab on each side of the center vent louver (1).
2. Remove the center vent louver (1) from the IP assembly (2).

INSTALLATION PROCEDURE

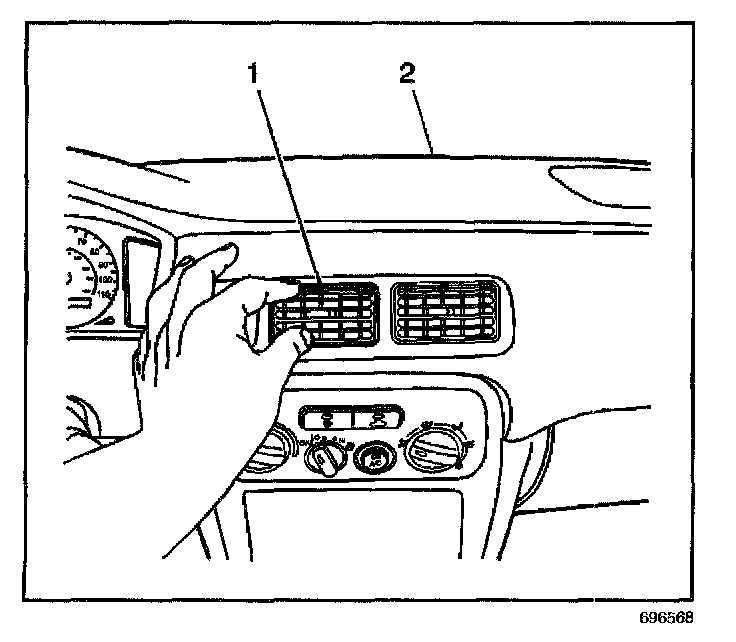

Install the center vent louver (1) to the IP assembly (2) by inserting straight in, until the tabs engage.
