Instrument Panel Cluster (IPC) - Lamp Replacement

REMOVAL PROCEDURE




1. Remove the instrument cluster retainer. Refer to Bezel Replacement - IP Cluster.

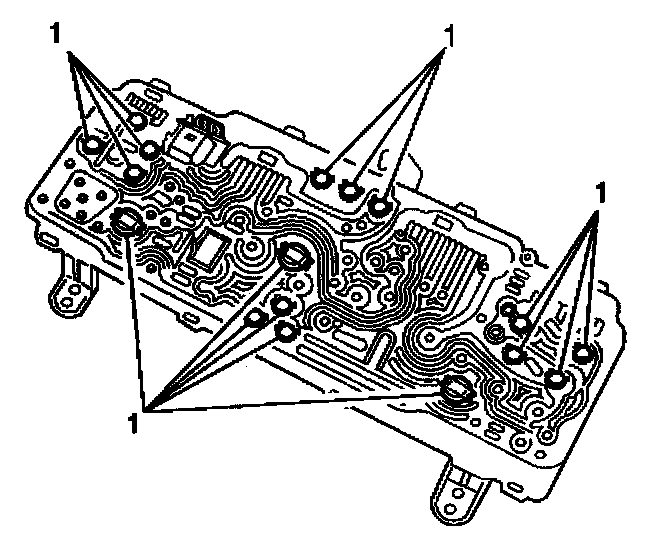

2. Remove whichever instrument cluster bulb socket (1) necessary from the instrument cluster case by turning in a counterclockwise direction.
3. Remove the bulb from the socket (1).

INSTALLATION PROCEDURE




1. Install the bulb to the socket (1).
2. Install the instrument cluster bulb socket (1) to the instrument cluster case by turning in a clockwise direction.
3. Install the instrument cluster retainer. Refer to Bezel Replacement - IP Cluster.
