Map Light: Service and Repair

READING LAMP AND BULB REPLACE - OVERHEAD CONSOLE

REMOVAL PROCEDURE

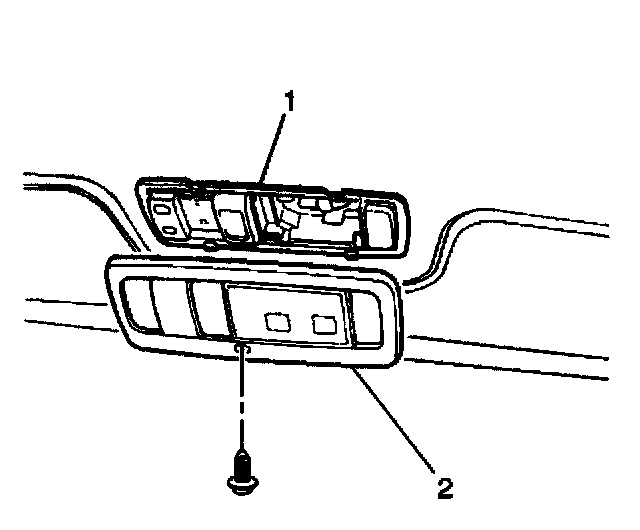

1. Remove the screw and gently pry the bezel (2) from the courtesy and reading lamp/sunroof switch assembly (1).
2. Turn counterclockwise and remove the courtesy and reading lamp bulb from the lamp socket.

INSTALLATION PROCEDURE




1. Install the courtesy and reading lamp bulb to the lamp socket and turn clockwise in order to secure.
2. Install the bezel (2) to the courtesy and reading lamp/sunroof switch assembly (1). Secure the bezel with the screw.
