Ignition Switch

ABS, ALT, AMI, DEF, DYL, ECU-B, HTR, OBD, POWER, STOP Fuses:

ALT-S, AM2, DOME, EFI, Hazard, Horn, And Main Fuses:

Ignition Switch, IGN And ST Fuses:

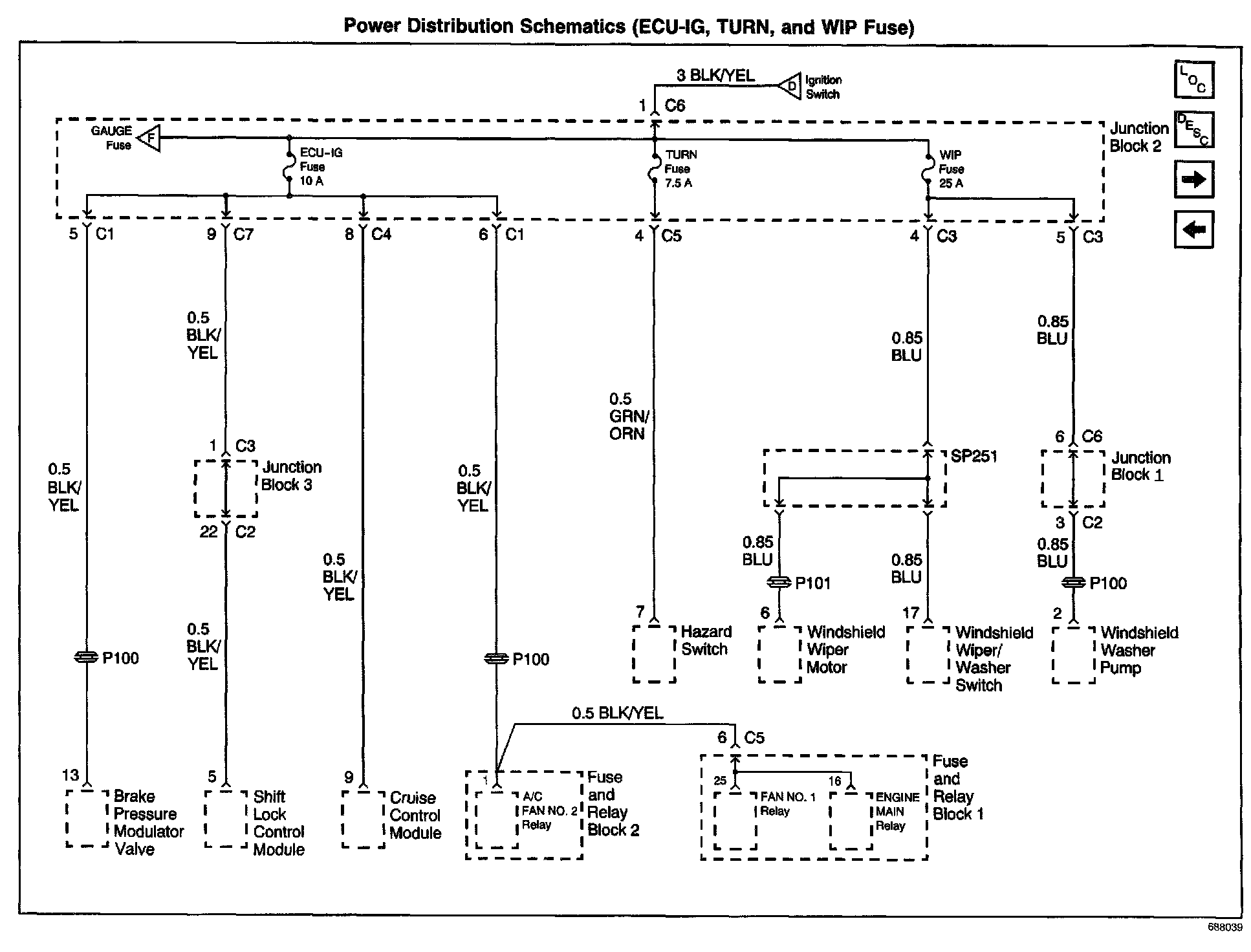

ECU-IG, TURN, And WIP Fuse:

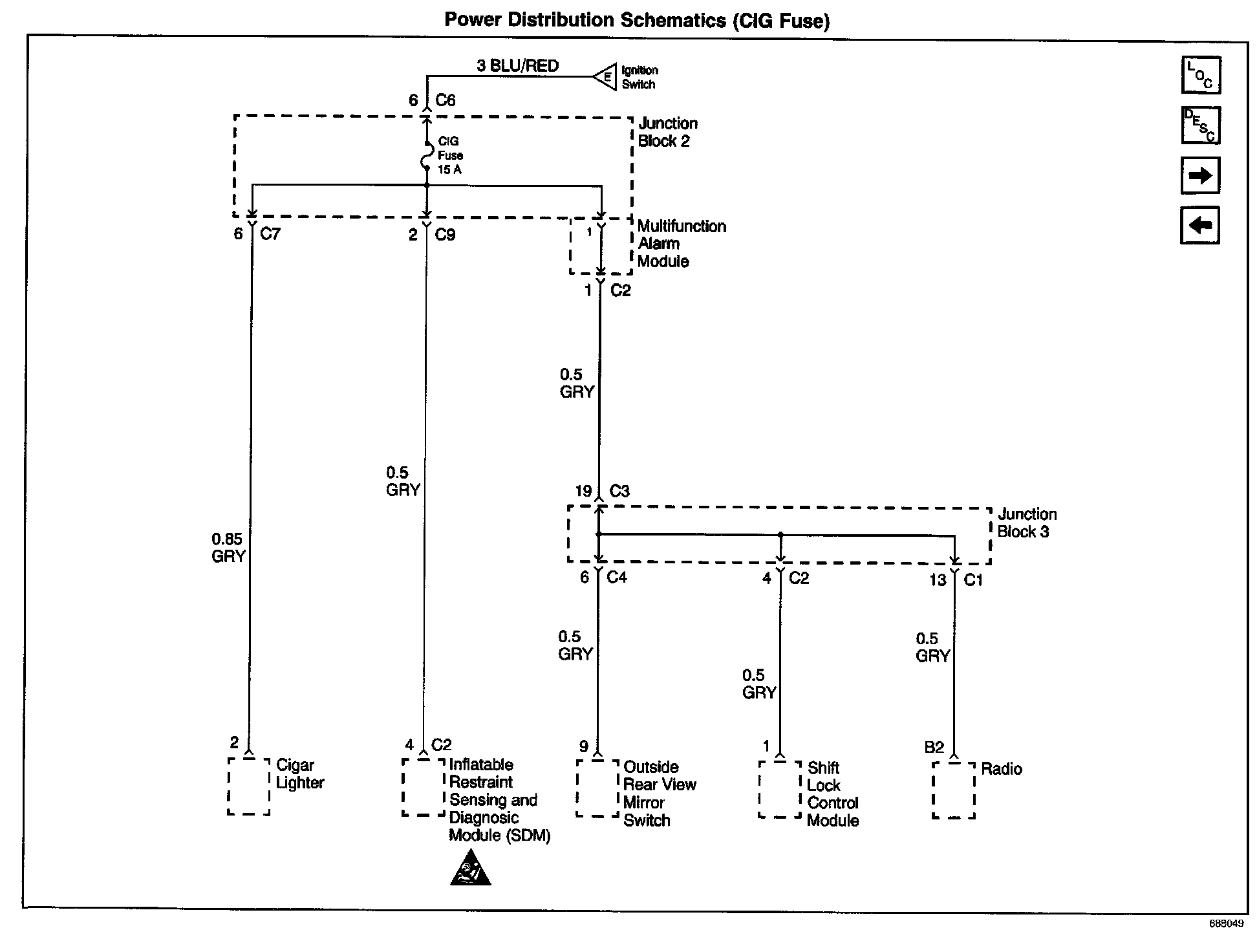

CIG Fuse:
